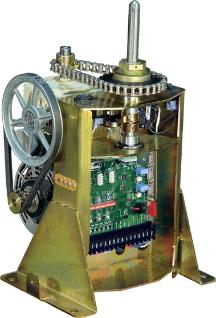

Gate Opener Swing Ramset 30 Residential Operator
Ramset Gate Openers - Ram 30
GENERAL SPECIFICATIONS:
Max Gate Size 12'     Max Gate Weight 400 lbs.    Motor light duty, 1/2 Hp, 120VAC, 50/60 hz
Emergency Release   Hand lever Release, Power Inverter     Dimensions   H:18 1/2" - L:13 1/2" - W:13
1/2"
Travel Speed   Fully opens in 14 seconds

ELECTRONIC SPECIFICATIONS :
Control Board:   A state-of-the-art, microprocessor controlled, surface mount pcb with features
such as:
Electronic Reversing Device (ERD): Automatically adjusts to the size of the gate. Automatic Timer:
can be set from 0 to 60 seconds  Master/Slave:  Three wires synchronize bi-parting gates.
station, photo cell, safety edge and magnetic lockstation, photo cell, safety edge and magnetic lock
Click to enlarge RamSet Gate Opener Specification for 30UL
Ramset Main Circuit Board for Swing Slide Gate Openers
Swing Gate Openers,Swing Gate Operators,Automatic Gate Operator
Ramet 30-30 Gate Operators - Available in 3/4 Hp  and 1 HP
GENERAL SPECIFICATIONS:
Max Gate Size  20'   Max Gate Weight   3000 lbs. Motor  Continuous duty. 3/4 Hp,  120VAC, 50/60 hz
Emergency Release  Foot pedal Dimensions   H:27 1/2" - L:23 1/2" - W:17 1/2" Travel Speed   90
degrees in 16   seconds
Surge Protection: gas discharge filter and MOV increases protection against surges and lightning
strikes Electronic Reversing Device (ERD):
innovative system that monitors current fluctuation; self-adjusting and reverses when obstruction
is sensed Electronic Inputs: phone entry systems, three push button stations, radio receivers, fire
boxes, digital key pads, loop detectors, photo cells, etc.
Automatic Timer: gate closes automatically after desired amount of time (0, 5, 10, 15, 30, 45 or 60
seconds)
Master/Slave: RS-485 multi node communication interface synchronizes movement between two
gates LAG/MODE LAG/DELAY: integrated delay of 1 second between master and slave Magnetic
Lock: 24 VDC; lock connects directly to intelligent control board Relay: two integrated relays to use
accessories such us alarms, lights, locks or cctv Status of Gate: micro bright L.E.D.s to show status
of gate operator
Running Direction: dip switch changes direction for right/left hand operation
Ramset Spec Sheet For Gate Openers, Operators Heavy Duty 3/4HP
Electronic Swing Gate Electric Automatic Gate Operator
Residential Gate Opener Ramset Swing Gate Operator 300UL 1/2HP Spec Sheet
Rasmet Gate Operators - Ram 300
General Specifications:
Max Gate Size  18'   Max Gate Weight  1000 lbs.  Motor
Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
Emergency Release
Foot pedal Release, Battery Back-up System, Power Inverter
Dimensions  H:26 1/4"- L:16 1/4"- W:16 1/2"  Travel Speed
90 degrees in 14 seconds
ELECTRONIC SPECIFICATIONS
Control Board:  A state-of-the-art, microprocessor controlled, surface mount pcb with features such
as:
Master/Slave: Three wires synchronize bi-parting gates.
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center
loop, telephone entry system, three button station, photo cell, safety edge and magnetic lock.
RamSet Residential Swing Gate Opener Automatic Electric Electronic Opener Operator
Ramset Swing Gate Operators - Ram 3000 1/2 hp
General Specifications
Max Gate Size  22'   Max Gate Weight  800 lbs. Motor  Continuous duty. 1/2 Hp, 120VAC, 50/60 hz Emergency Release  Hand
Lever Release, Power Inverter
Dimensions  H:28 1/2 - L:23" - W:18" Travel Speed  90 degrees in 20 seconds
Electronic Features
Control Board: easy to configure solid state board with features such as L.E.D. readouts to indicate status of operator at all
times
Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction during opening
or closing; reverses for 1 second and stops
Audio Alarm: audio alarm will sound for approximately six minutes, but only when the gate hits an obstruction twice; input to
reset alarm included
Automatic Timer: can be set from 0 to 60 seconds
Maximum Running Timer: motor shuts off after 60 seconds
Master/Slave:  Included five wire connection plug to synchronize movement between two gates
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry
system, three button station, photo cell, safety edge and magnetic lock
Automatic Opener,Automatic Operator,Electric Opener,Electric Operator RamSet 3000UL
RamSet Residential Swing Gate Opener Automatic Electric Electronic Opener Operator
Ramset Gate Openers - Ram 3100 3/4Hp, 120VAC
GENERAL SPECIFICATIONS:
Max Gate SizeDimensions  H:28 1/2 - L:23" - W:18"
Travel Speed  90 degrees in 20 seconds
Ram 3100 Swing Gate Operator
Electronic Features
Control Board: easy to configure solid state board with features such as L.E.D. readouts to indicate status of operator at all
times
Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction during opening
or closing; reverses for 1 second and stops
Audio Alarm: audio alarm will sound for approximately six minutes, but only when the gate hits an obstruction twice; input to
reset alarm included
Automatic Timer: can be set from 0 to 60 seconds
Maximum Running Timer: motor shuts off after 60 seconds
Master/Slave:  Included five wire connection plug to synchronize movement between two gates
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry
system, three button station, photo cell, safety edge and magnetic lock
Automatic Opener,Automatic Operator,Electric Opener,Electric Operator Specs for 3100UL
RamSet Residential Swing Gate Opener Automatic Electric Electronic Opener Operator
Ramset Gate Operators - Ram 3200 UL - 1 HP
GENERAL SPECIFICATIONS:
Max Gate Size  22'    Max Gate Weight  1200 lbs.  Motor  Continuous duty. 1Hp, 120VAC, 50/60 hz
Emergency Release  Hand Lever Release, Power Inverter
Dimensions  H:28 1/2 - L:23" - W:18"
Travel Speed  90 degrees in 20 seconds

Ram 3200 Swing Gate Operator Electronic Features
Control Board: easy to configure solid state board with features such as L.E.D. readouts to indicate status of operator at all
times
Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction during opening
or closing; reverses for 1 second and stops
Audio Alarm: audio alarm will sound for approximately six minutes, but only when the gate hits an obstruction twice; input to
reset alarm included
Automatic Timer: can be set from 0 to 60 seconds
Maximum Running Timer: motor shuts off after 60 seconds
Master/Slave:  Included five wire connection plug to synchronize movement between two gates
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry
system, three button station, photo cell, safety edge and magnetic lock
Automatic Opener,Automatic Operator,Electric Opener,Electric Operator Specs for 3200UL
Gate Opener RamSet Sliding 5000UL 1/2HP
Ramset Sliding Gate Operators -  Ram 5000 UL 1/2hp
Max Gate Size  40'  Max Gate Weight  1000 lbs.  Motor  Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
Dimensions  H:25" - L:18 1/2" - W:16 1/2"
Travel Speed  1' Per Second
Electronic Features
Control Board: easy to configure solid state board with features such as L.E.D. readouts to indicate status of operator at all
times
Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction during opening
or closing; reverses for 1 second and stops
Audio Alarm: audio alarm will sound for approximately six minutes, but only when the gate hits an obstruction twice; input to
reset alarm included
Automatic Timer: can be set from 0 to 60 seconds
Maximum Running Timer: motor shuts off after 60 seconds
Master/Slave: included five wire connection to synchronize movement between two gates
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry
system, three button station, photo cell, safety edge and magnetic lock
Gate Opener RamSet 5000UL 1/2HP Sliding Operator Specs Sheet Commercial Line
Ramset 5100 3/4hp Gate Opener Heavy Commercial Gate Opener Operator
Ramset Slide Gate Operators - Ram 5100 3/4 hp, 120VAC
Max Gate Size  40'  Max Gate Weight  2000 lbs.
Motor  Continuous duty. 3/4Hp, 120VAC, 50/60 hz
Emergency Release  chain release, Battery Back-up System, Power Inverter
Travel Speed  1' Per Second
Electronic Features
Control Board: easy to configure solid state board with features such as L.E.D. readouts to indicate status of operator at all
times
Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction during opening or
closing; reverses for 1 second and stops
Audio Alarm: audio alarm will sound for approximately six minutes, but only when the gate hits an obstruction twice; input to
reset alarm included
Automatic Timer: can be set from 0 to 60 seconds
Maximum Running Timer: motor shuts off after 60 seconds
Master/Slave: included five wire connection to synchronize movement between two gates
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry
system, three button station, photo cell, safety edge and magnetic lock
Heavy Duty Large Gates Sliding Opener Operator Commercial 5100UL 3/4HP
Ramset 5100 3/4hp Gate Opener Heavy Commercial Gate Opener Operator
Ramset Commercial / Industrial Heavy Duty Slide Gate operator RAM 5200
Motor  Continuous duty. 1Hp, 220VAC, 50/60 hz
Emergency Release  chain release, Battery Back-up System, Power Inverter
Dimensions  H:25" - L:18 1/2" - W:16 1/2"
Travel Speed  1' Per Second
Electronic Features
Control Board: easy to configure solid state board with features such as L.E.D. readouts to indicate status of operator at all
times
Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction during opening or
closing; reverses for 1 second and stops
Audio Alarm: audio alarm will sound for approximately six minutes, but only when the gate hits an obstruction twice; input to
reset alarm included
Automatic Timer: can be set from 0 to 60 seconds
Maximum Running Timer: motor shuts off after 60 seconds
Master/Slave: included five wire connection to synchronize movement between two gates
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry
system, three button station, photo cell, safety edge and magnetic lock
Heavy Duty Large Gates Sliding Opener Operator Commercial 5200UL 1HP
Heavy Residential Light Commercial Sliding Gate Opener Slide Operator
Heavy Residential Commercial Gate Opener Operator Sliding Slide 1000UL
Ramset Gate Operators - Ram 1000 1/2 hp Gate Operator
GENERAL SPECIFICATIONS:
Max Gate Size  40'   Max Gate Weight  1000 lbs.
Motor Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
Emergency Release  Footpedal Release, Battery Backup System, Power Inverter
Dimensions
H:26" - L:14 1/2" - W:16 1/2"
Travel Speed  1' Per Second
ELECTRONIC SPECIFICATIONS
Control Board: A state-of-the-art, microprocessor controlled, surface mount pcb with features such as:
Electronic Reversing Device (ERD): Automatically adjusts to the size of the gate.
Automatic Timer: can be set from 0 to 60 seconds.
Master/Slave: Three wires synchronize bi-parting gates.
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry
system, three button station, photo cell, safety edge and magnetic lock.

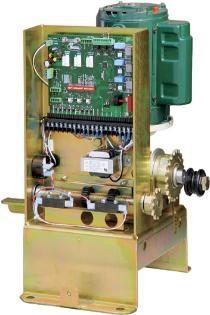

Ramset  Slide Gate Openers Ram 100 1/2 hp Gate Operators
GENERAL SPECIFICATIONS:
Motor  Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
Emergency Release  Foot pedal Release, Power Inverter
Dimensions  H:22" - L:14 1/2" - W:15"
Travel Speed  1' Per Second
Electronic Features
Control Board: easy to configure solid state board with features such as L.E.D. readouts to indicate status of operator at all
times
Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction during
opening or closing; reverses for 1 second and stops
Audio Alarm: audio alarm will sound for approximately six minutes, but only when the gate hits an obstruction twice; input to
reset alarm included
Automatic Timer: can be set from 0 to 60 seconds
Maximum Running Timer: motor shuts off after 60 seconds
Master/Slave:included five wire connection to synchronize movement between two gates
Electronic Inputs:for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry
system, three button station, photo cell, safety edge and magnetic lock
Heavy Duty Residential Slide Gate Opener Light Commercial Sliding Gate Operator
Heavy Residential Light Commercial Sliding Gate Opener Slide Operator

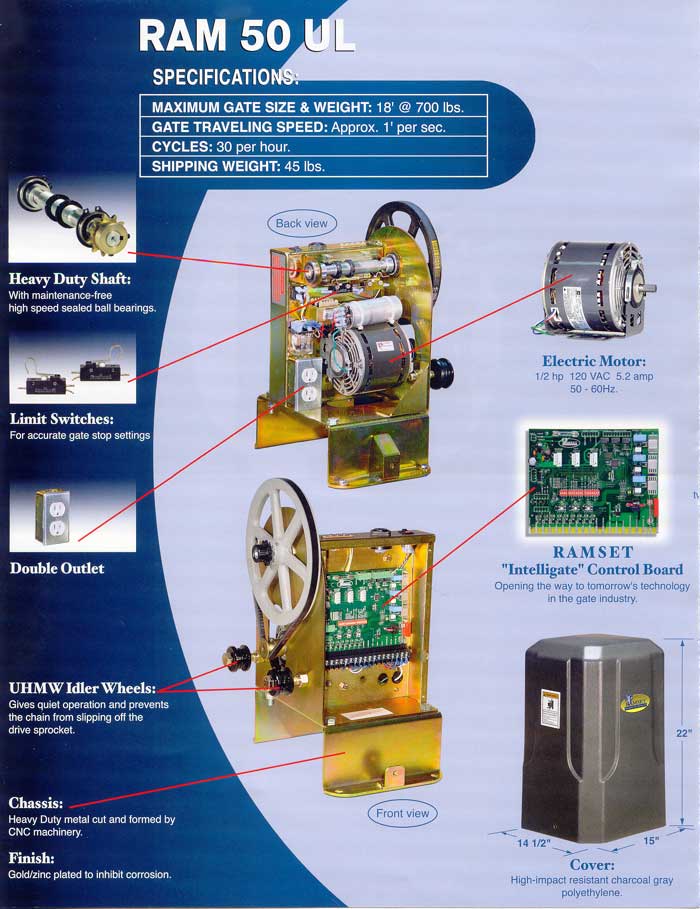

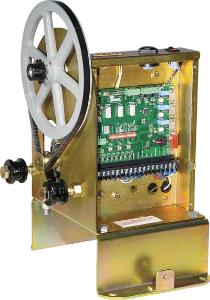

Ramset Residential slide Gate Opener RAM50
Motor: Light Duty. 1/2 Hp, 120VAC, 50/60 hz
Emergency Release The gate can be pushed open when power is lost or Power Inverter
Dimensions: H:22" - L:14 1/2" - W:15" Travel Speed 1' Per Second
Perfect for single home installations where security isn't the main concern
Control Board:Ramset’s "Intelligate" Control Board is for operating a vehicular gate operator; the control board is available
for 120VAC single phase applications; the control board contains self adjusting ERD, left hand/right hand operation control,
lead/lag capability, one-pass anti-tailgating, and options for 4 different gate addresses
Electronic Reversing Device:innovative ERD system that monitors current fluctuation; self-adjusting ERD reverses when
obstruction is sensed
Electronic Inputs:phone entry systems, three push button stations, radio receivers, fire boxes, digital key pads, loop
detectors, photo cells, etc.
Automatic Timer:gate closes automatically after desired amount of time (0, 5, 10, 15, 30, 45 or 60 seconds)
Master / Slave:RS-485 multinode communication interface synchronizes movement between two gates
Open Delay / Close Delay:integrated delay of 1 second between master and slave on opening or closing
Magnetic Lock:24 VDC; lock connects directly to Intelligate Control Board
Relay:two integrated relays to use accessories such us alarms, lights, locks or cctv
Micro Bright LED'S:show status of gate operator
Right/Left Hand Operation:dip switch changes direction for right/left hand operation
Maximum Running Timer:60 Seconds
Click Image
To Enlarge
Click Image To Enlarge
Click Image To Enlarge
Click Image To Enlarge
Click Image To Enlarge
Click Image To Enlarge
Click Image To Enlarge
Click Image To Enlarge
Click Image To Enlarge
Ramset Automatic Gate System - Gate Openers or Gate Operators
Welcome to: GATESNFENCES.COM
L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147
Office: 305-696-0419
Fax: 305-696-0461
Designed to satisfy the need for gate operators in high traffic areas, such as residential gated communities, public storages, industrial parks and government facilities.
In September 1994, Ramset Automatic Gate Systems Inc., began supplying a new generation of reliable vehicular gate operators. The Ramset series of slide and
swing gate operators are designed to satisfy the need for gate operators in high traffic installations, such as residential gated communities, public storage, industrial
parks and U.S. Government facilities.
About Us  |   Contact Us   |   Our Policies   |   FAQ   |   Manufactures   |   Links   |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp.  All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying,
or otherwise without prior written consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street  Miami  Florida  33147, Office: 305-696-0419  Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com
Custom Decorative Ornamental Wrought Iron and Aluminum Driveway Gates
Custom Decorative Ornamental Estate Metal Driveway Gates
Great Selection of Aluminum Driveway Gates, Modern designs all welded construction powder coat Oven Baked
We Custom make all of our driveway gates to your specs all installation hardware is included
Privacy Gates,Privacy Driveway Gates,Metal Backing,Wood Insert,Privay Panels
Garden Gates, Walk Thru Gates, Garden Walk Through Gates, Wrought Iron or Aluminum Iron Garden Walk Gates
All our Garden gates are custom made to match driveway gates and fencing complementing your home exterior design
Metal, Plexiglas, Krinkglas, Wood are use as Privacy panels backing with an array of color to choose from
Aluminum Picket Fence, Pool Fence, Security Pool Fence
Custom Fence Wrought Iron Fence Fencing Metal Design Steel Ornamental
Deck Railings, Iron Railings,Porch Railings,Balcony Railings,Hand Rails, Aluminum or Wrought Iron Metal Railings
We make Custom modern railings for Balconies,front porch,Decks, pool area all welded Aluminum
Gate Openers-Gate Operators, Top Brands,Power Master,Eagle,Elite,RamSet,DoorKing,OSCO,SEA
Ramset Gate Openers and Operators Swing Slide Residential Commercial and Industrial
We are pround to carry the FAAC Gate Opener line including parts and customer service 2nd to none
Apollo Gate openers the best Solar operators in the market, available in residential, commercial and industrial models, single swing,dual and slide
BFT all UL/CSA approved electromechanical and hydraulic operators, rack & pinion,kits, great openers at agreat price
Complete Power Master gate openers, operators available on line
Liftmaster gate opener,operators and barriers designed to meet your access control and security needs
Elite Gate Operators the leading provider of gate operators
Doorking also known as “DKS” manufacturers of telephone entry systems, vehicular gate operators, parking control products and access control systems in the US
OSCO Linear Gate Operators swing Slide Barriers Variable Speed Residential Commercial Industrial
Allstar Gate Openers part of Linear corp
Full line of Viking gate openers, operators and barriers, all Viking openers are equip with battery back up
Eagle Gate Openers Operators Residential Commercial swing slide
SEA an Italian line of gate openers, Rack & Pinion,chain,swing
Hysecurity when only the best will do, Hysecurity is the line of openers that you want
Control Boards, Main Circuit Boards, MotherBoards, Main Control Circuit Boards for Gate Operators
Remote Controls Multi-Code Linear Liftmaster Chamberlain Clicker Mini Transmitter Heddolf Skylink
Multi code remote controls available in visor style and key chain style, 1,2 and 4 buttons in 300 and 310 mhz
Transmitter Solution Gate Remote Control Garage Door Clicker
Linear Remote Controls, Delta 3,Mega Code,Block Code,310MHZ,318Mhz
Liftmaster Remote Controls we carry older models as well like 61lm,62lm,63lm,64lm,971lm,972lm,973lm,974lm and new item as well
Doorking remote control MicroClick,MicroPlus Block codes
Keystone Heddolf has one of the largest selection of frequency in the market including extended range remotes
BFT FAAC SEA are all italian brand with a European frequency 433Mhz and 418Mhz
Long Range Remote controls and receivers from several brands
Receivers from Linear, DoorKing, Multi-Code, Liftaster, Heddolf, Extended Range
Multi Code Linear Extensive line of Receiver for any access remote needs including long range
Doorking Receiver Microplus Microclick RF Control Access Control 8054 Series 8057 Series 8055 Series 8053-080 8056-080 8059-080 8060-061
Liftmaster Receiver 312HM 412HM 635LM 365LM Star450 Passport CPWR3 423LM TCR TCG
Keystone Heddolf Receiver 318Mhz 300Mhz Long Range ER294 M294 P294
Long Range Remote and Receivers from several brands
Phone entry system, Doorking, American access System, Linear, Elite, Select Engineered,Sentex
SES - Select Engineering System for your telephone access control residential or commercial application
AAS - American Access System telephone entry keypads card readers
Doorking Telephone Entry residential commercial keypad intercom for all you access control needs
Liftmaster TAC1 telephone entry and keypad WKP5LM WKP250LM
Sentex Infinity L, Infinity S, Infinity M, Infinity B
Elite gate entry system EL25 EL2000 Dial Code Icon 26
Linear TelephoneEntry System AE100,AE500,AE1000,AE2000,RE1,RE2
IP Telephone entry Voice over internet anolog GSM Gate way Cell phone remote IP Video Gate Intercom Door phone entry
Keypads Wire Keypad Wireless Keypad Liftmaster American Access System AAS Doorking DK Multi-Code Hedolff
Loop Detectors, PhotoCell, Exit Devices, Emergency Entry Equipment
Safety loop EMX, BD Loop, Doorking, Preform, saw cut, pave over
Loop Detector Reno AE Loop Detector Diablo EDI EMX
Safety Photo Cell Infrared Reflector Vehicle Detector Safety Photo Beam
Gate Accessories - Roller Guides, Wheels, Hinges, Latches
Cantilever Gate wheels Gate Rollers Heavy Duty Gate Wheels Rolling Gate Wheels
Inverted V track gate wheels guide rollers Groove Wheels Slide Gate Hardware Galvanized Aluminum Track
J-Bolt Adjustible gate hinges spring pool hinges Heavy Duty driveway gate hinges
Gate Latch Pool gate latch double dead bolt lock lever passage lock pool safety lock
Gate Openers or Operators Parts - Replacement Parts
RamSet Residential or Commercial Swing Gate Openers - Ramset Slide Gate Openers  Light Duty
or Heavy Duty Gate Operators, Automatic or Electric Gate Openers
Ramset 50GB Cut Sheet Specification
HySecurity Gate Openers Swing Slide Barrier Lift
All Brand Vehicle Barrier Arms,Liftmaster Mega Arm,Doorking 1601,1602,1603,OSCO BGU,OSCO BGUS,OSCO BGUD,PowerMaster P1500,P5000,MBG,Viking B12,FAAC,FAAC 615,FAAC 620,Apollo BA12,SEA Vela,SEA Vela Industrial
Ramset 5700 Heavy Duty Commercial - Industrial Gate Operator

When your heavy gate requires something tough and durable, the RAM 5700 is the perfect solution. Offering a 1 horsepower
continuous duty motor with the power to open a gate as heavy as 5000 lbs. Most competitors use 2, 1/2  horsepower motors
with less combined power and efficiency which is not a good option when power is required

Ramset 5700 Slide Gate Operators
GENERAL SPECIFICATIONS:
Maximum Travel / Weight: 65 ft/ 5000 lbs
Motor:  1 Hp, Continuous Duty
Operating Temperature:  -10 to 160 Degrees F
Overall Dimensions:   H:25” L:16½” W:18½”
Click Image To Enlarge
Electric Gate System Gate Motor Power Gate Automatic Gates Ramset 30 Swing
Ramset Residential Electric Gates Electric Opener Electronic Gates
Ramset Gate Receiver Remote Control Gates Driveway Gate
Ramset Electric Driveway Gates Electronic Gate Motors
Ramset Gate Controls Power Gates Gate King Manufacture
Commercial Gate Openers Automatic Opener Gate Keypad
Super Heavy Duty Commercial Gate Operators Gate System
Ramset Residential Sliding Gates Electronic Gates With Remote Controls
Heavy Residential Opener Gate Motor Power Gate Gate Control
Automated Gate From Ramset Gate Openers Sliding Electric Driveway Electronic Gates
Ramset Automatic Gates Sliding Gates Motors Power by Ramset
Sliding Gates Ready for Gate Intercom Gate Keypad and Remote Controls
Heavy Commercial Gate Motors Power Gates with Gate Controls
Gate King of Openers Ramset Slide Door Automatic Gate Openers
All Brand Vehicle Barrier Arms,Liftmaster Mega Arm,Doorking 1601,1602,1603,OSCO BGU,OSCO BGUS,OSCO BGUD,PowerMaster P1500,P5000,MBG,Viking B12,FAAC,FAAC 615,FAAC 620,Apollo BA12,SEA Vela,SEA Vela Industrial
Ramset 302 Residential Low Profile Swing Gate opener
When a low profile gate operator is needed, the RAM 302 is the perfect choice.
The 1/2 horsepower motor will swing gates as heavy as 800 pounds.
The RAM 302 also includes our Whisper Quiet motor operation.

Specifications:
*maximum gate size & Weight: 18’ @ 600 lbs
*gate traveling speed: Approx 90° opening in 16 sec
*motor : 1/2 hp, 120 VAC, 4.5 amp, 1625 rpm
*cycles: Continuous
*operating temperature : -10° F to 160° F
*heavy duty worm gear: Lubricated in an oil bath for smooth and quiet operation.
*chassis: 3/16” hot rolled steel
*finish: Gold/Zinc plated to inhibit corrosion
*power failure release: Hand lever release
*overall dimensions: H 16½” L 23” W 13½”
*shipping weight: 100 lbs
*Foot Pedal Release
*Emergency Release: This mechanism disengages the gate from the operator to allow  easy manual opening and closing of
the gate duting power outages and emergencies.
Ramset residential Swing Gate operator 302 Low profile
