Ramset 5200 Gate Opener Gate Operator Slide Sliding Commercial Openers

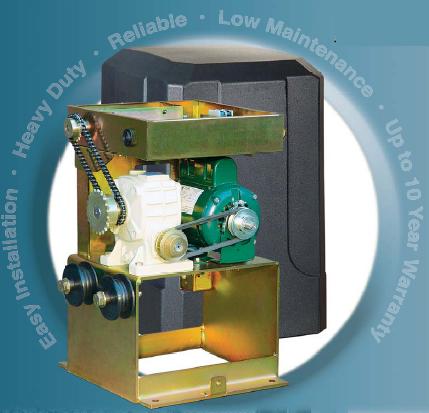

Ramset 5200 Slide Gate Operators or Slide Openers
Ram 5200 1Hp, 220VAC slide gate operator
Max Gate Size 40'
Max Gate Weight 3000 lbs.
Motor Continuous duty. 1Hp, 220VAC, 50/60 hz
Emergency Release chain release, Battery Back-up System, Power Inverter
Dimensions H:25" - L:18 1/2" - W:16 1/2"
Travel Speed 1' Per Second

Rasmet Slide Gate Openers Electronic Features
Control Board: easy to configure solid state board with features such as L.E.D. readouts
to indicate status of operator at all times
Electronic Reversing Device (ERD): two separate adjustments for reversing when
encountering obstruction during opening or closing; reverses for 1 second and stops
Audio Alarm: audio alarm will sound for approximately six minutes, but only when the gate
hits an obstruction twice; input to reset alarm included
Automatic Timer: can be set from 0 to 60 seconds
Maximum Running Timer: motor shuts off after 60 seconds
Master/Slave: included five wire connection to synchronize movement between two gates
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal
detector, center loop, telephone entry system, three button station, photo cell, safety edge
and magnetic lock

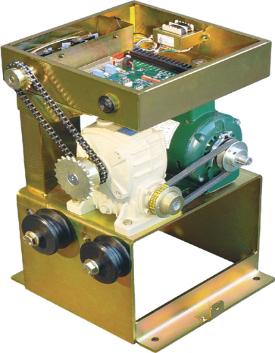

Ramset 5100 3/4hp Gate Opener Heavy Commercial Gate Opener Operator

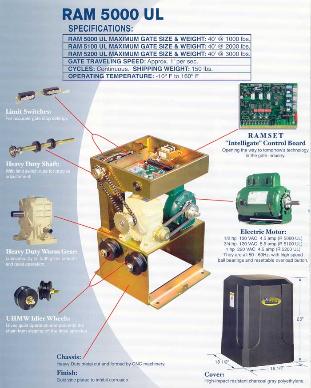

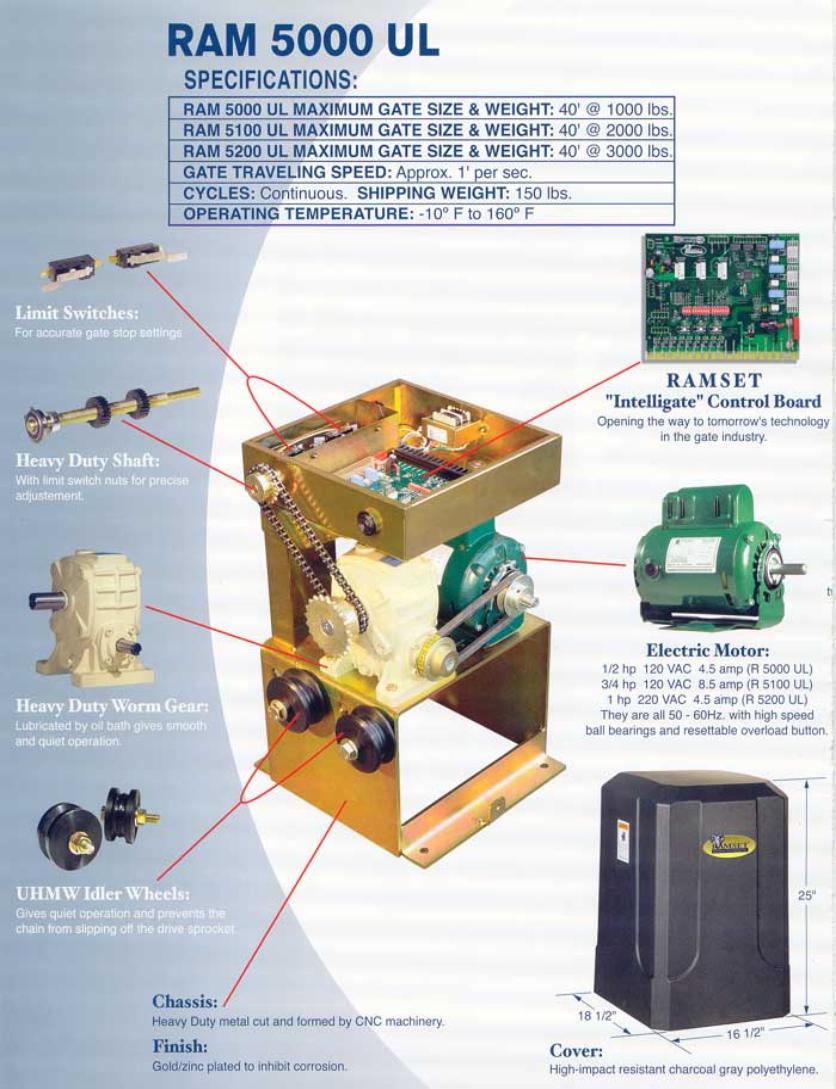

Heavy Duty Large Gates Sliding Opener Operator Commercial

Manual

RamSet 5200 Residential Slide Gate Opener Ram Set 5200 Sliding Gate Operator

Ram 5200, 1 Hp, 220VAC slide gate operator
Max Gate Size 40'
Max Gate Weight 3000 lbs.
Motor Continuous duty. 1 Hp, 220VAC, 50/60 hz
Emergency Release Chain Release or Battery Back-up System.
Dimensions H:25" - L:18 1/2" - W:16 1/2" Travel Speed 1' Per
Second
Perfect for commercial/industrial installations on very heavy
gates.

For Main Control
Board Click Here:

Welcome to: GATESNFENCES.COM

Designed to satisfy the need for gate operators in high traffic areas, such as residential gated communities, public storages, industrial parks and
government facilities. In September 1994, Ramset Automatic Gate Systems Inc., began supplying a new generation of reliable vehicular gate operators.
The Ramset series of slide and swing gate operators are designed to satisfy the need for gate operators in high traffic installations, such as residential
gated communities, public storage, industrial parks and U.S. government facilities.

Back to Main Ramset Gate Operators Page

Ramset Sliding Gate Opener
5200 - Comercial Slide gate
Operator|Ramset Electronic Gate
Opener -- $1,473.39

Keypads & Telephone Entry Systems

Gate Operator Circuit Boards

Remote Controls

Loop Detectors & Safety Equipment

Recei vers

L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147
Phone: 305-696-0419
Fax: 305-696-0461


		Ram 5200 gate Openers kit 1 Include: •Ram 5200 gate operator •Multi-Code Receiver Model 109950 dual frequency 300/310 MHz •Two Multi Code Remote Control model 308911 1-Button Ramset 5200 Gate Opener kit 1 -- $1668.62

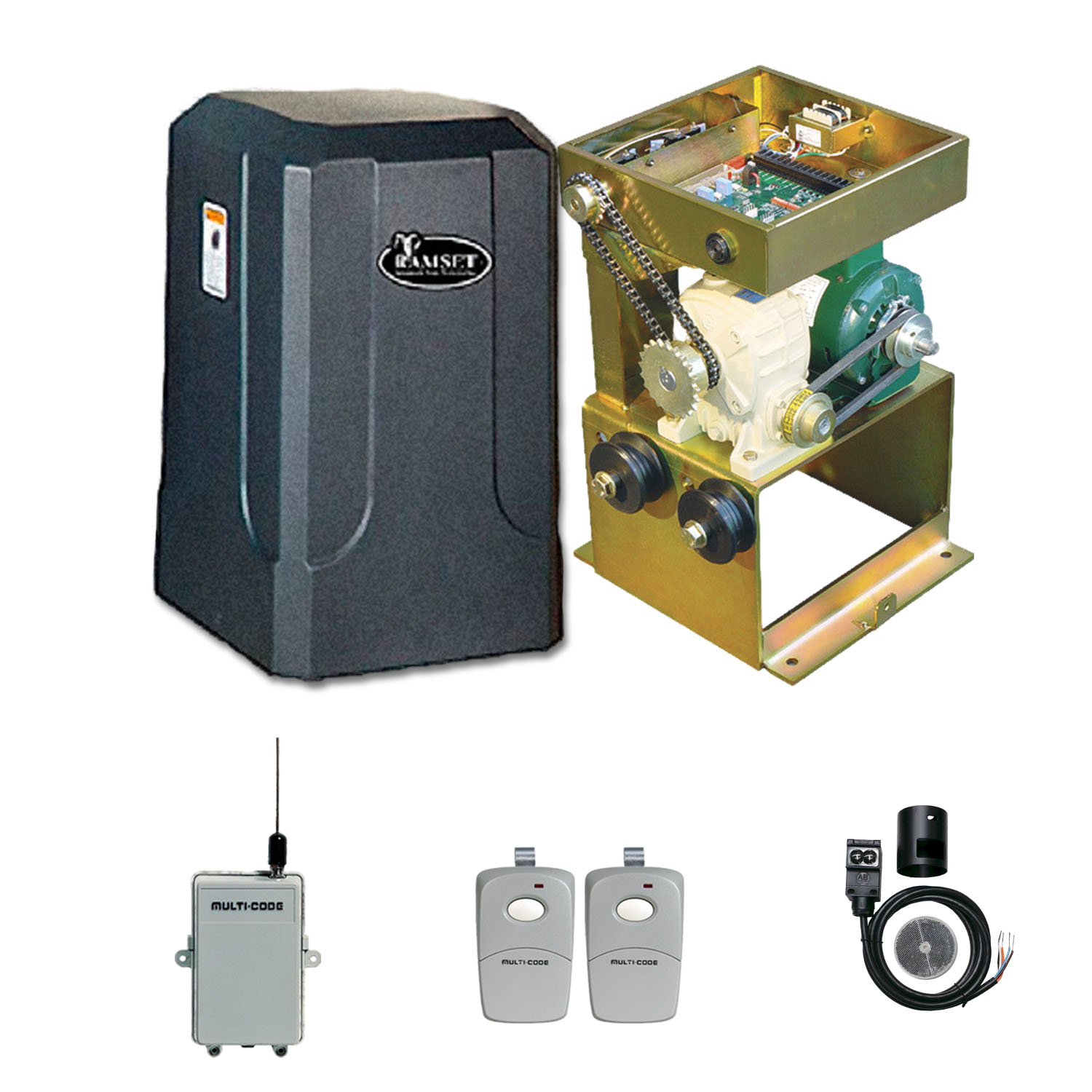

	Ram 5200 gate Openers kit 2 Include: •Ram 5200 gate operator •Multi-Code Receiver Model 109950 dual frequency 300/310 MHz •Two Multi Code Remote Control model 308911 1-Button •Allen Bradley 60-2728 Reflective Photo Eye 30' sensing distance Ramset 5200 Gate Opener kit 2 -- $1,829.72


	Ram 5200 gate Openers kit 3 Include: •Ram 5200 gate operator •Multi-Code Receiver Model 109950 dual frequency 300/310 MHz •Two Multi Code Remote Control model 308911 1-Button •Allen Bradley 60-2728 Reflective Photo Eye 30' sensing distance •EMX Lite Preformed Loop 4x8 •EMX MVP D-TEK loop detector 9V to 220V AC or DC •EMX Loop detectors HAR-11 Pin Harness Ramset 5200 Gate Opener kit 3 -- $2,025.47

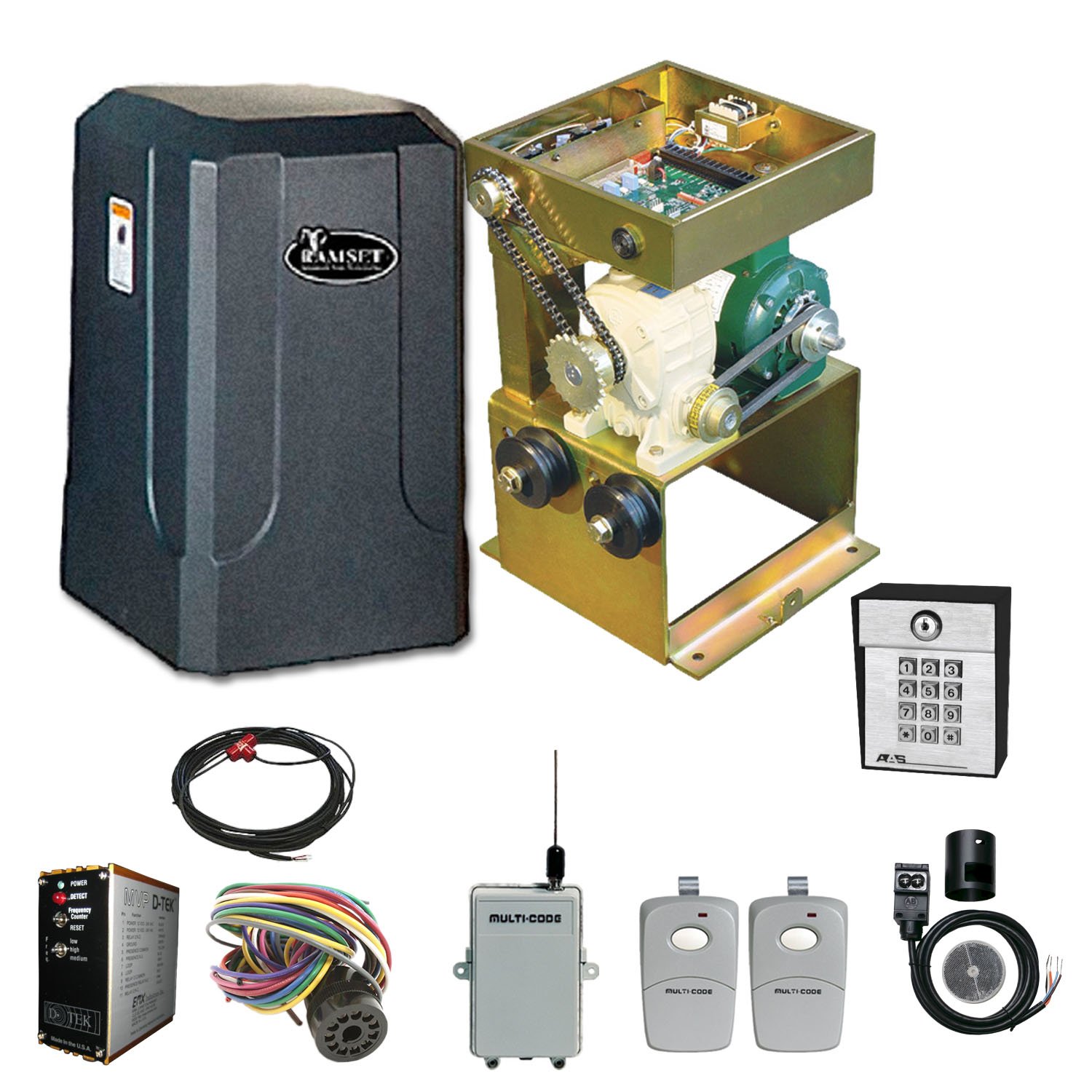

	Ram 5200 gate Openers kit 4 Include: •Ram 5200 gate operator •Multi-Code Receiver Model 109950 dual frequency 300/310 MHz •Two Multi Code Remote Control model 308911 1-Button •Allen Bradley 60-2728 Reflective Photo Eye 30' sensing distance •EMX Lite Preformed Loop 4x8 •EMX MVP D-TEK loop detector 9V to 220V AC or DC •EMX Loop detectors HAR-11 Pin Harness •American Access System AdvantageDKE 26-100L & 26-100sg Ramset 5200 Gate Opener kit 4 -- $2,171.27

TO VIEW COMPLETE SELECTION OF RAMSET 5200 GATE
OPENERS KITS AND ACCESSORIES SCROLL DOWN

Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying,
or otherwise without prior written consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com

	Multi-Code Receiver Model 109950 dual frequency 300/310 MHz Features: Operates on 12-24 volts AC or DC power One channel Whip antenna 3-foot antenna coax and bulkhead connector 1,024 codes RF frequency:300 or 310 MHz (jumper selectable) 3.625" W x 5.25" H x 1.5" D Order number: MCS109950 Multi-Code 1-channel 12-24V Gate Receiver Model Number: 109950 -- $54.00*

		Multi-Code 308911 1-Channel Visor Transmitter Features •Compatible with 300 MHz Multi-Code receivers Supplied with visor clip Powered by 9-volt battery Easy access to battery and coding switch 1,024 codes RF frequency: 300 MHz 3.75" W x 2.5" H x 0.875" D *Order number: MCS308911 Multicode 308911: 1-channel Visor Transmitter - 300 MHz --

	American Access System Advantage DKE 26-100L AdvantageDKE line of digital keyless entry offers post surface mount configurations,is housed in heavy metal, powder coated enclosures with stainless steel faceplates. Stand alone and have 100 fully programmable, four digit codes. Features 100 programmable four digit codes Programmable Personal Master Code Programmable Latch / Unlatch Code Night Light Variable relay output time: 1 – 9 seconds Audible tone Non-volatile memory Power consumption: 25mA @ 24VAC *Limited two year warranty American Access System AdvantageDKE 26-100L Digital Keyless Entry System Keypad $162.00


DOLKWP300318 - 300/318 MHz Dual Frequency Keypad FEATURES: Wireless Keypad: 300 MHz (Compatible with Multicode® 10- dip switch) OR 318 MHz 9-dip switch (Compatible with Allstar® 9931 and Heddolf® P220 •Stainless steel faceplate Rubber back lit keys Hard wired or wireless User friendly coding Holds up to 99 individual 4-digit codes ABS housing Adjustable relay hold feature LED indicator Surface or Post mount DOLKWP300318 - 300/318 MHz Dual Frequency Keypad-- $49.95

EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft Outdoor Buried Driveway Sensor Alarm Carsense 202 Slim Features • Sensing probe is buried in the ground so it is not noticed by a potential intruder or vandals. • Has wide power supply options and it can be ordered in 9 V to 35 V AC or DC. The low current consumption of 1.5 mA in standby and 15 mA activated make it an excellent choice for solar power applications. EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft -- $144.95

EMX Loop detectors HAR-11 Pin Harness 11 pin detector harness for use with our loop detectors and CarSense 101. EMX Loop detectors HAR-11 Pin Harness -- $14.00

Aluminum Standard GooseNeck Pedestal in 3
colors Aluminium goose neck Curb mount The
Model GNC-1 Curb Mount Gooseneck is used for
easy installation of keypads, telephone entry
systems, and other access control products.
Features Curb mount configuration Rugged,
weather resistant, powder coated rolled
Aluminum construction Universal bolt pattern on
base plate and faceplate fits all manufacturer's
products Aluminum Goose neck 5.25" W x 42" H x
15.5" D $119.00

Bronze

Black

White


EMX Lite Preformed Loop 4x8 The Lite Preformed Loop Detector is a ready-to-use loop that works with all EMX loop detectors. This lightweight preformed loop detector is suitable for saw cut, tar and concrete installations. Inquire for special sizes and quotes. Benefits include: Easy to install Electronic lightning protection Rugged and flexible TPE tubing EMX Preformed Loop 4x8 $99.00*

	Allen Bradley 60-2728 Reflective Photo Eye Allen Bradley 60-2728 retro-reflective photo eyes, 12VDC/24VAC/DC NEMA 3,4,4X,6P,1, 30' maximum detection range Reflective photo eye •3'' diameter reflector •12-24 VDC or 24 VAC •30' sensing distance •UL325 Compliant Allen Bradley 60-2728 Reflective Photo Eye $179.00

EMX MVP D-TEK loop detector 9V to 220V AC or DC The EMX MVP D-TEK loop detector is 9V to 220V AC or DC and is designed to be a universal voltage loop detector. The MVP D-TEK solves the problem of not knowing which voltage to have for your installation. Benefits include: Universal voltage Reduced inventory costs Operates in both fail safe and fail secure modes Power 9 VDC to 240VAC EMX D-TEK MVP Multi Voltage Power Universal Loop Detector -- $109.95

	BFT "POLARIZED" / Retro-reflective Photocell Specifications: Polarized Sensor Red infrared led element IP-66 water proof/cable gland PMMA upper casing, anti fog/dew/rain Round shape reflector-Dia.:80mm Input volt: AC/DC 12-250V non polarity Twin colorsled indicator for beam alignment Tamper switches included Sensing range 35ft. BFT Photo Cell / Photo Eye with Reflector -- $119.00

1BX Single Button Exterior Control (Metal) Fully Guarded, exterior. -NEMA 4 -Momentary Contact -One Button Control -Dimensions: H=4-3/8", W=4-1/8", D=2-5/8 "Push Button Station - NEMA 1BX, Exterior Control Station, 1 Button, Surface Mount" $39.95

Below find the basic kit advisories, if you need help in finding other items to add to our kit selection or want to make any changes let us know. Thank you for stoping by.
