RamSet 5500 Residential Slide Gate Openers

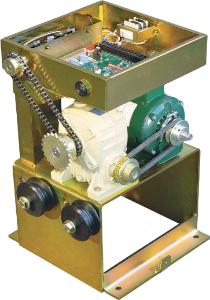

Ram Set 5500 Sliding Gate Operator
Heavy Residential Light Commercial Sliding Gate Opener Slide Operator
GENERAL SPECIFICATIONS
Ram 5500 3/4 Hp, 120VAC slide gate operator
Max Gate Size 45'
Max Gate Weight 1500 lbs.
Motor Continuous duty. 3/4 Hp, 120VAC, 50/60 hz
Emergency Release Footpedal Release or Battery
Backup System Dimensions H:26" - L:14 1/2" - W:16
1/2" Travel Speed 1' Per Second
Perfect for commercial/industrial slide gate
operators
Heavy Residential Commercial Gate Opener Operator Sliding Slide
Electric Gate System Gate Motor Power Gate Automatic Gates Ramset 30 Swing
Ramset Residential Electric Gates Electric Opener Electronic Gates
Ramset Gate Receiver Remote Control Gates Driveway Gate
Ramset Electric Driveway Gates Electronic Gate Motors
Ramset Gate Controls Power Gates Gate King Manufacture
Commercial Gate Openers Automatic Opener Gate Keypad
Super Heavy Duty Commercial Gate Operators Gate System
Ramset Residential Sliding Gates Electronic Gates With Remote Controls
Heavy Residential Opener Gate Motor Power Gate Gate Control
Automated Gate From Ramset Gate Openers Sliding Electric Driveway Electronic Gates
Ramset Automatic Gates Sliding Gates Motors Power by Ramset
Sliding Gates Ready for Gate Intercom Gate Keypad and Remote Controls
Heavy Commercial Gate Motors Power Gates with Gate Controls
Gate King of Openers Ramset Slide Door Automatic Gate Openers
For Main Control
Board Click Here:
Ramset 5500 Slide Gate Operators
GENERAL SPECIFICATIONS:
Max Gate Size:  45'
Max Gate Weight:  1500 lbs.
Motor:  Continuous duty. 3/4 Hp, 120VAC, 50/60 hz

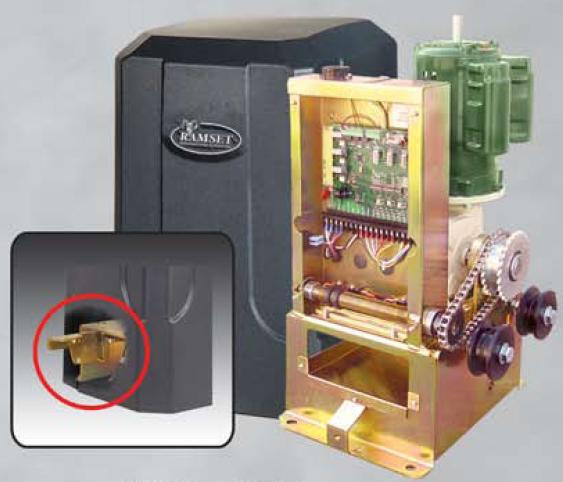

Emergency Release:  Footpedal Release or Battery Backup System
Dimensions:   H:26" - L:14 1/2" - W:16 1/2"
Travel Speed:   1' Per Second

Ramset 5500 Slide Gate Openers ELECTRONIC SPECIFICATIONS
Control Board:  A state-of-the-art, microprocessor controlled, surface mount pcb with features such as:

Electronic Reversing Device (ERD):
Automatically adjusts to the size of the gate.
Automatic Timer:
can be set from 0 to 60 seconds.
Master/Slave:
Three wires synchronize bi-parting gates.
Electronic Inputs:
for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry
system, three button station, photo cell, safety edge and magnetic lock
CLICK HERE TO PURCHASE OR VIEW COMPLETE SELECTION OF RAMSET GATE
OPENERS AND ACCESSORIES
