| Ramset 50 Sliding Autoamtic Electric Gate Operators or Gate Openers Control Board: Ramset’s "Intelligate" Control Board is for operating a vehicular gate operator; the control board is available for 120VAC single phase applications; the control board contains self adjusting ERD, left hand/right hand operation control, lead/lag capability, one-pass anti-tailgating, and options for 4 different gate addresses Electronic Reversing Device: innovative ERD system that monitors current fluctuation; self-adjusting ERD reverses when obstruction is sensed Electronic Inputs: phone entry systems, three push button stations, radio receivers, fire boxes, digital key pads, loop detectors, photo cells, etc. Automatic Timer: gate closes automatically after desired amount of time (0, 5, 10, 15, 30, 45 or 60 seconds) Master / Slave: RS-485 multinode communication interface synchronizes movement between two gates Open Delay / Close Delay: integrated delay of 1 second between master and slave on opening or closing Magnetic Lock: 24 VDC; lock connects directly to Intelligate Control Board Relay: two integrated relays to use accessories such us alarms, lights, locks or cctv Micro Bright LED'S: show status of gate operator Right/Left Hand Operation: dip switch changes direction for right/left hand operation Maximum Running Timer: 60 Seconds |

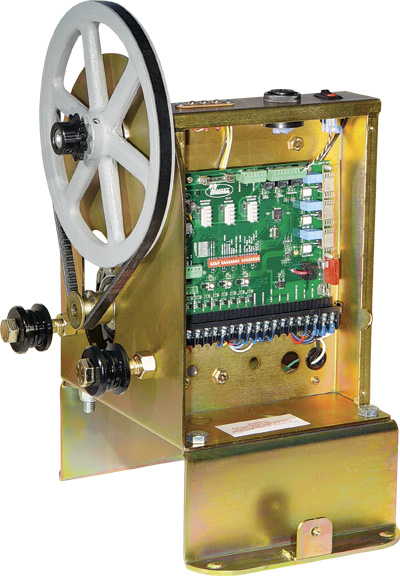

| Max Gate Size 18' Ramset Model 50 UL 1/2 HP Slide Gate Operator Max Gate Weight 700 lbs. Motor Light Duty. 1/2 Hp, 120VAC, 50/60 hz Emergency Release The gate can be pushed open when power is lost or Power Inverter Dimensions H:22" - L:14 1/2" - W:15" Travel Speed 1' Per Second Perfect for single home installations where security isn't the main concern |
| RamSet 50 Residential Slide Gate Opener Ram Set #50 Sliding Gate Operator |
