Ramset 30 Gate Openers Residential 30 Gate Operators Automatic Openers

Manual

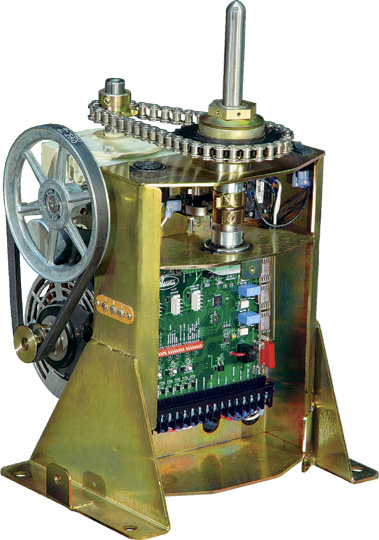

RamSet 30 Residential Swing Gate Opener - RamSet 30 Light Duty Gate Operator Automatic

Gate Opener Swing Ramset 30 Residential Operator

Ramset 30 GENERAL
SPECIFICATIONS:
Ram 30
1/2 Hp, 120VAC swing gate operator
Max Gate Size 12'
Max Gate Weight 400 lbs.
Motor light duty, 1/2 Hp, 120VAC, 50/60 hz
Emergency Release Hand lever Release,
Power Inverter
Dimensions H:18 1/2" - L:13 1/2" - W:13 1/2"
Travel Speed Fully opens in 14 seconds

Ram 30 1/2 Hp, 120VAC swing gate operator
GENERAL SPECIFICATIONS:
Max Gate Size 12'
Max Gate Weight   400 lbs.
Motor   light duty, 1/2 Hp, 120VAC, 50/60 hz
Emergency Release   Hand lever Release, Power Inverter
Dimensions   H:18 1/2" - L:13 1/2" - W:13 1/2"
Travel Speed   Fully opens in 14 seconds

Ramset 30 ELECTRONIC SPECIFICATIONS
Control Board:   A state-of-the-art, microprocessor controlled, surface mount pcb with features such as:
Electronic Reversing Device (ERD): Automatically adjusts to the size of the gate.
Automatic Timer: can be set from 0 to 60 seconds.
Master/Slave: Three wires synchronize bi-parting gates.
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone
entry system, three button station, photo cell, safety edge and magnetic lock

Specs of Ramset 30 for Residential Swing Opener for Gates up to 12 foot wide and 400 lbs

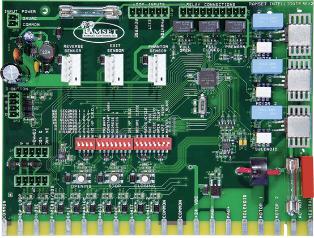

Ramset Main Circuit Board for Swing Slide Gate Openers

SCROLL DOWN TO VIEW COMPLETE SELECTION OF
RAMSET GATE OPENERS KITS AND ACCESSORIES

Welcome to: GATESNFENCES.COM

Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying,
or otherwise without prior written consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com

L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147
Phone: 305-696-0419
Fax: 305-696-0461

Designed to satisfy the need for gate operators in high traffic areas, such as residential gated communities, public storages, industrial parks and
government facilities. In September 1994, Ramset Automatic Gate Systems Inc., began supplying a new generation of reliable vehicular gate operators.
The Ramset series of slide and swing gate operators are designed to satisfy the need for gate operators in high traffic installations, such as residential
gated communities, public storage, industrial parks and U.S. government facilities.

Back to Main Ramset Gate Operators Page

Ramset Swing Gate Operator, Ramset 30
Residential Gate Opener -- $948.75

Keypads & Telephone Entry Systems

Gate Operator Circuit Boards

Remote Controls

Loop Detectors & Safety Equipment

Recei vers

Specs

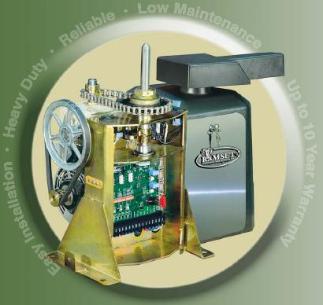

New Look of the Ramset 30 Offering complete kits, Receives Remote Controls, Keypads, Safety Photo Cells, Exit Wands and Entry Systems


	Ram 30 gate Openers kit 1 Include: •Ram 30 1/2 Hp gate operator •Multi-Code Receiver Model 109950 dual frequency 300/310 MHz •Two Multi Code Remote Control model 308911 1-Button Ramset 30 (1/2 Hp) Gate Opener kit-- $1043.50

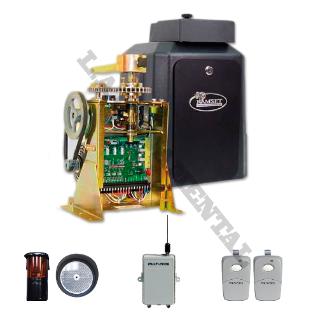

	Ram 30 gate Openers kit 2 Include: •Ram 30 1/2 Hp gate operator •Multi-Code Receiver Model 109950 •Two Multi Code Remote Control model 308911 1-Button •BFT Photo Cell / Photo Eye with Reflector Ramset 30 (1/2 Hp) Gate Opener kit-- $1150.60

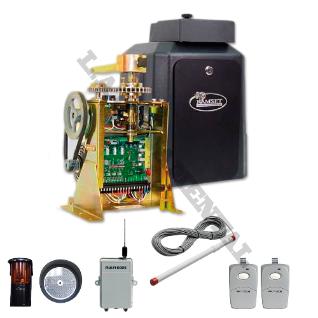

	Ram 30 gate Openers kit 3 Include: •Ram 30 1/2 Hp gate operator •Multi-Code Receiver Model 109950 •Two Multi Code Remote Control model 308911 1-Button •BFT Photo Cell / Photo Eye with Reflector •EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft Ramset 30 (1/2 Hp) Gate Opener kit-- $1281.06

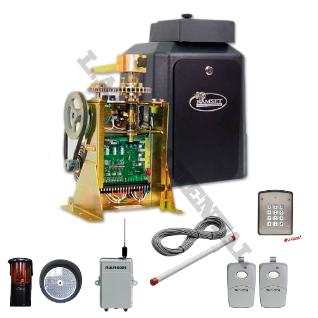

Ram 30 gate Openers kit 4 Include: •Ram 30 1/2 Hp gate operator •Multi-Code Receiver Model 109950 •Two Multi Code Remote Control model 308911 1-Button •BFT Photo Cell / Photo Eye with Reflector •EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft •Wireless Keypad DOLKWP300318 300/318 MHz Ramset 30 (1/2 Hp) Gate Opener kit-- $1346.06

	Multi-Code Receiver Model 109950 dual frequency 300/310 MHz Features: Operates on 12-24 volts AC or DC power One channel Whip antenna 3-foot antenna coax and bulkhead connector 1,024 codes RF frequency:300 or 310 MHz (jumper selectable) 3.625" W x 5.25" H x 1.5" D Order number: MCS109950 Multi-Code 1-channel 12-24V Gate Receiver Model Number: 109950 -- $54.00*

		Multi-Code 308911 1-Channel Visor Transmitter Features •Compatible with 300 MHz Multi-Code receivers Supplied with visor clip Powered by 9-volt battery Easy access to battery and coding switch 1,024 codes RF frequency: 300 MHz 3.75" W x 2.5" H x 0.875" D *Order number: MCS308911 Multicode 308911: 1-channel Visor Transmitter - 300 MHz --

	American Access System Advantage DKE 26-100L AdvantageDKE line of digital keyless entry offers post surface mount configurations,is housed in heavy metal, powder coated enclosures with stainless steel faceplates. Stand alone and have 100 fully programmable, four digit codes. Features 100 programmable four digit codes Programmable Personal Master Code Programmable Latch / Unlatch Code Night Light Variable relay output time: 1 – 9 seconds Audible tone Non-volatile memory Power consumption: 25mA @ 24VAC *Limited two year warranty American Access System AdvantageDKE 26-100L Digital Keyless Entry System Keypad $162.00


DOLKWP300318 - 300/318 MHz Dual Frequency Keypad FEATURES: Wireless Keypad: 300 MHz (Compatible with Multicode® 10- dip switch) OR 318 MHz 9-dip switch (Compatible with Allstar® 9931 and Heddolf® P220 •Stainless steel faceplate Rubber back lit keys Hard wired or wireless User friendly coding Holds up to 99 individual 4-digit codes ABS housing Adjustable relay hold feature LED indicator Surface or Post mount DOLKWP300318 - 300/318 MHz Dual Frequency Keypad-- $49.95

EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft Outdoor Buried Driveway Sensor Alarm Carsense 202 Slim Features • Sensing probe is buried in the ground so it is not noticed by a potential intruder or vandals. • Has wide power supply options and it can be ordered in 9 V to 35 V AC or DC. The low current consumption of 1.5 mA in standby and 15 mA activated make it an excellent choice for solar power applications. EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft -- $144.95

EMX Loop detectors HAR-11 Pin Harness 11 pin detector harness for use with our loop detectors and CarSense 101. EMX Loop detectors HAR-11 Pin Harness -- $14.00

Aluminum Standard GooseNeck Pedestal in 3
colors Aluminium goose neck Curb mount The
Model GNC-1 Curb Mount Gooseneck is used for
easy installation of keypads, telephone entry
systems, and other access control products.
Features Curb mount configuration Rugged,
weather resistant, powder coated rolled
Aluminum construction Universal bolt pattern on
base plate and faceplate fits all manufacturer's
products Aluminum Goose neck 5.25" W x 42" H x
15.5" D $119.00

Bronze

Black

White


EMX Lite Preformed Loop 4x8 The Lite Preformed Loop Detector is a ready-to-use loop that works with all EMX loop detectors. This lightweight preformed loop detector is suitable for saw cut, tar and concrete installations. Inquire for special sizes and quotes. Benefits include: Easy to install Electronic lightning protection Rugged and flexible TPE tubing EMX Preformed Loop 4x8 $99.00*

	Allen Bradley 60-2728 Reflective Photo Eye Allen Bradley 60-2728 retro-reflective photo eyes, 12VDC/24VAC/DC NEMA 3,4,4X,6P,1, 30' maximum detection range Reflective photo eye •3'' diameter reflector •12-24 VDC or 24 VAC •30' sensing distance •UL325 Compliant Allen Bradley 60-2728 Reflective Photo Eye $179.00

EMX MVP D-TEK loop detector 9V to 220V AC or DC The EMX MVP D-TEK loop detector is 9V to 220V AC or DC and is designed to be a universal voltage loop detector. The MVP D-TEK solves the problem of not knowing which voltage to have for your installation. Benefits include: Universal voltage Reduced inventory costs Operates in both fail safe and fail secure modes Power 9 VDC to 240VAC EMX D-TEK MVP Multi Voltage Power Universal Loop Detector -- $109.95

	BFT "POLARIZED" / Retro-reflective Photocell Specifications: Polarized Sensor Red infrared led element IP-66 water proof/cable gland PMMA upper casing, anti fog/dew/rain Round shape reflector-Dia.:80mm Input volt: AC/DC 12-250V non polarity Twin colorsled indicator for beam alignment Tamper switches included Sensing range 35ft. BFT Photo Cell / Photo Eye with Reflector -- $119.00

1BX Single Button Exterior Control (Metal) Fully Guarded, exterior. -NEMA 4 -Momentary Contact -One Button Control -Dimensions: H=4-3/8", W=4-1/8", D=2-5/8 "Push Button Station - NEMA 1BX, Exterior Control Station, 1 Button, Surface Mount" $39.95

Below find the basic kit advisories, if you need help in finding other items to add to our kit selection or want to make any changes let us know. Thank you for stoping by.
