|Ram 5000 1/2 Hp, 120VAC slide gate operator
Max Gate Size 40'
Max Gate Weight 1000 lbs.
Motor Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
Emergency Release chain release, Battery Back-up System, Power Inverter
Dimensions H:25" - L:18 1/2" - W:16 1/2"
Travel Speed 1' Per Second
Ramset 5000 Slide Gate Operators or Openers Electronic Features
Control Board: easy to configure solid state board with features such as L.E.D. readouts to indicate status of
operator at all times
Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction
during opening or closing; reverses for 1 second and stops
Audio Alarm: audio alarm will sound for approximately six minutes, but only when the gate hits an
obstruction twice; input to reset alarm included
Automatic Timer: can be set from 0 to 60 seconds
Maximum Running Timer: motor shuts off after 60 seconds
Master/Slave: included five wire connection to synchronize movement between two gates
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center loop,
telephone entry system, three button station, photo cell, safety edge and magnetic lock
|Ramset 5000 Gate Operators
controlled circuit board
Electronic reversing sensor
Will adjust to gate weight
Timer can be set from 0-60 secondsMaster/Slave
using 3 wires
Electronic inputs for radio receiver, fire
department, photocell and more
Fail secure: crank gate to open
Maximum gate length 40'
Maximum gate weight 1,000lbs.12" per second
Continuous cycles duty
|L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147
|TO VIEW COMPLETE SELECTION OF RAMSET 5000 GATE OPENERS
KITS AND ACCESSORIES SCROLL DOWN

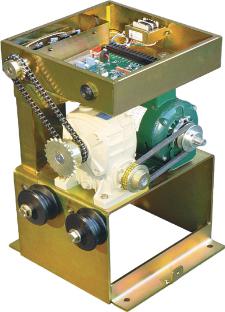

|RamSet Residential Slide Gate Opener Ram Set 5000 Sliding Gate Operator
|Ramset’s “Intelligate” Control Board works with
Sliding, Swinging and Overhead vehicular gate
operators. It is controlled by a program- mable
microprocessor that reads and precisely executes
all functions of the Control Board. The Control
Board is powered by a separate mounted 24 VAC
transformer. This allows no neces-
sary board modifications between 110 VAC and 220
VAC single-phase applications. Some of the
functions of the Control Board are: 0 - 60 seconds
automatic close timer, self adjusting E.R.D. with low
and high setting, constant warning, prewarning,
secure close, one pass, open & close delay,
left/right hand operation, plug-in loop detectors
and RS485 three wire master/slave connection.
