FAAC is the undisputed world leader in automated systems for opening gates, doors and garage doors. We produce automatic
movement operators for gates, garage doors, barriers, rolling shutters, glazed doors, swing shutters, and access control
systems, with countless solutions for intensive, heavy commercial uses as well as for residential applications. FAAC's
hydraulic operators utilize modern technology assuring years of trouble-free, smooth and quiet operation for even the largest
gated communities. These operators have met rigorous UL-325 safety standard testing, thus reducing a community's liability.
movement operators for gates, garage doors, barriers, rolling shutters, glazed doors, swing shutters, and access control
systems, with countless solutions for intensive, heavy commercial uses as well as for residential applications. FAAC's
hydraulic operators utilize modern technology assuring years of trouble-free, smooth and quiet operation for even the largest
gated communities. These operators have met rigorous UL-325 safety standard testing, thus reducing a community's liability.

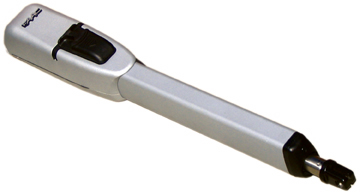

| FAAC 415 115 VAC Swing Gate Operator or FAAC 415 24V DC Electro-mechanical Swing Gate Operator |
| FAAC 415 Swing Gate Operators The Model 415 was designed to provide power and versatility to an economical residential swing operator. The 415 operator requires a Model 455 D control panel, which can operate a single leaf or a master slave gate system. You have a choice of either the standard 10 x 12 in. enclosure, which works well for a basic residential system, or the 14 x 16” pre- wired enclosure that is ideal for gate systems using multiple accessories, such as photobeams, loop detectors, etc |
| FAAC 415 115 VAC Swing Gate Operators Specifications Duty cycle (cycles per hour) 25 Maximum gate swing 110 degrees 90 degree opening time 13 seconds Maximum . weight per gate leaf 700 pounds (317.5kg) Maximum length per gate leaf 15 feet (4.6 m) Approx. operating temperature range -4°F to131°F (-20°C to 5°C) Voltage 115 VAC Power Consumption 300 W Current Consumption 2.5 A Effective stroke 15” (38.1 cm) Protection class Nema 4x |
| FAAC 415 24V DC Swing Gate Operators Specifications Duty cycle 100% Maximum gate swing 110 degrees 90 degree opening time 13 seconds Maximum . weight per gate leaf 700 pounds (317.5kg) Maximum length per gate leaf 15 feet (4.6 m) Approx. operating temp. range -4°F to131°F (-20°C to 5°C) Voltage Primary: 115 vac Secondary: 24vdc (100va transformer) Power Consumption 70 W Current Consumption 3 A Effective stroke 15” (38.1 cm) Protection class Nema 4x |
| Features include: * Sleek design * Sealed limit switches * Battery back-up * Slow down “soft stop” * Reverse on contact |
| FAAC 415 Swing Gate Operators The FAAC 415 Compact Operator is an automatic gate operator for a swinging gate leaf. The 415 Compact Operator is useful in residential applications and can accommodate a gate leaf up to 14 ft (4.3 m) long. The self-contained 415 Compact Operator consists of an electric motor that drives a worm screw housed in an aluminum casing. The locking the 415 Operator provides in the fully opened and fully closed positions is a service device rather than a security device. Additional, external locks are recommended under the following conditions:∗ It is a solid-faced gate. ∗ The length of the gate leaf is 6 ft (2 m) or longer. ∗ The installation requires tight security. ∗ The site is subject to vandalism. ∗ The site is subject to strong or very gusty wind In two-operator gate installations, both (master/slave) operators are wired to one control panel. The electronic control panel is a microprocessor-based controller that accepts a wide range of product accessories and reversing devices, thus allowing for flexible gate system design. Also for the protection and proper operation of the 415 Operator, each operator has built in limit switched so positive stops are not needed. Built-in security and anti-crushing measures of the 415 Operator include built in reverse on contact and a torque adjustment that controls the force transmitted to the gate leaf through the 415 Operator. The Manual Release mechanism is a key accessed device that disengages (or engages) the cylinder on 415 Operator. When the drive is disengaged, you can open and close the gate leaf by hand. Such manual operation of the gate is necessary during installation and useful during prolonged power failures. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
