When Speed Counts - The FAAC 620 Raises Beams Fast FAAC 620 Hydraulic Barrier Gate Opener is ideal for commercial medium-high traffic control |

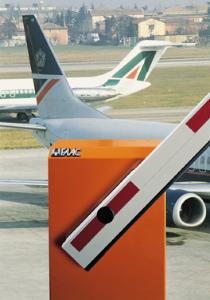

FAAC 620 Hydraulic Barrier Gate Opener The Model 620 is designed specifically for commercial traffic control applications that require extremely fast opening and closing times. When used with an aluminum beam of 8 1/2 feet or less, the 620 has an opening time of under 2 seconds and a 100% duty cycle. The 620 can also operate a wooden beam up to 16 feet in less than 3 seconds. * Flexibility - Outstanding flexibility make the 620 the most complete barrier in its class. The 620 can be equipped with an articulated beam for use under low ceilings and can be outfitted with a skirt to stop unauthorized entry under the barrier arm. 624 MPS Electronic Control Panel - The microprocessor in the 624 MPS control panel contains logic that allows it to fully and independently cycle the barrier upon receiving appropriate signals. It can also be set to follow specific open/close/stop instructions. Consequently, the barrier can be easily interconnected with other traffic control devices. The 624 MPS also features an emergency input which, for example, can be connected to a fire alarm...when the alarm is tripped, the barrier will open and stay open until reset |
FAAC 620 Hydraulic Barrier Gate Opener Specifications * Duty type - commercial medium-high volume traffic control; standard width entrances * Duty cycle at 72(F (24(C) 100% motor run time * Opening time - 2-3 sec (depending on beam length) * Beam lengths 6 1/2-13 ft (2-4 m) * Beam types available - rigid, round. articulated, skirted, hinged (breakaway) * Beam materials available - rigid: aluminum and wood round: aluminum articulated & skirted: aluminum breakaway: aluminum * Power supply 230 VAC -10% to +6%; 60Hz * Motor horsepower 1/3 hp * Motor speed 1400-2800 rpm * Ambient temperature range - -13oF to 158oF (-25oC to 70oC) * Hydraulic locking positions - opened and closed * Cabinet dimensions (l x w x h) 6 9/16 x 13 3/4 x 42 1/2 in. (17 x 35 x 108 cm) * Cabinet weight (approx.) 170 lb (77 kg) * Electric motor - single phase, bi-directional * Absorbed power 220 W * Current drawn 1 A * Pump delivery - 1.58, 2.11, 3.16, 4.22 pt/min (.75, 1, 1.5, 2 l/min) * Motor winding thermal cutout 248oF (120oC) * Torque 0-147.5 ft-lb (200 Nm) * Anti-crush system hydraulic valves (by-pass) * Mechanical deceleration adjustable * Casing anti-corrosion treatment cataphoresis * Cabinet finish polyester paint, powder coated RAL 2004 * Housing protection - IP 55 * Cooling - automatic fan |
FAAC 620 Logical Operation The operation of the 620 or 640 Barrier is controlled by the 624 MPS Control Panel housed inside the operator cabinet. What accessories you install and which DIP switch settings you choose determine the logical operation of the beam. Two DIP switches on the control panel allow you to select the E (semi-automatic), A (automatic), P (parking), or R (remote) mode of operation. Furthermore, the barrier beam can be operated by hand during emergencies by means of a Manual Release mechanism. |
