FAAC is the undisputed world leader in automated systems for opening gates, doors and garage doors. We produce
automatic movement operators for gates, garage doors, barriers, rolling shutters, glazed doors, swing shutters, and
access control systems, with countless solutions for intensive, heavy commercial uses as well as for residential
applications. FAAC's hydraulic operators utilize modern technology assuring years of trouble-free, smooth and quiet
operation for even the largest gated communities. These operators have met rigorous UL-325 safety standard testing,
thus reducing a community's liability.
automatic movement operators for gates, garage doors, barriers, rolling shutters, glazed doors, swing shutters, and
access control systems, with countless solutions for intensive, heavy commercial uses as well as for residential
applications. FAAC's hydraulic operators utilize modern technology assuring years of trouble-free, smooth and quiet
operation for even the largest gated communities. These operators have met rigorous UL-325 safety standard testing,
thus reducing a community's liability.

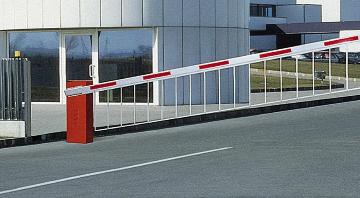

| The FAAC 640 raises beams from 13 to 23 ft long - The Model 640 is the ideal hydraulic barrier for controlling heavy traffic at wide entrances |
| FAAC 640 Hydraulic Barrier Gate Opener When Long Beams are Needed The Model 640 is the ideal hydraulic barrier for controlling heavy traffic at wide entrances. The 640 operates continuously, raising aluminum beams from 13 to 23 feet long in as little as 4 to 7 seconds. * Perfect Behavior - The 640 always stops smoothly and gently, thanks to an adjustable electronic braking system which slows the beam down before the end of its travel when opening and closing. A heat sensor monitors the opener temperature, switching on a cooling fan when required. * Dedicated Logic - The 624 MPS control panel is standard with the 640. The electronic intelligence of the 640 offers three different control logics: automatic, semi-automatic and car park (P), the latter specifically designed for automatic car lots. * Flexibility - The 640 can be outfitted with a skirt to stop unauthorized entry under the barrier arm. * Foreseeing The Unexpected - An automatic barrier release system for power failure is available as an option. The 624 MPS also features an emergency input which, for example, can be connected to a fire alarm...when the alarm is tripped, the barrier will open and stay open until reset. |
| FAAC 640 Hydraulic Barrier Gate Opener * Duty type - medium-high volume traffic control; wide entrances * Duty cycle - at 72(F (24(C) 100% motor run time * Opening time - 4-8 sec (depending on beam length) * Beam lengths - 13-23 ft (4-7 m) * Beam types available - rigid, skirted * Beam materials available - rigid: aluminum and wood skirted: aluminum * Power supply - 230 VAC -10% to +6%; 60Hz * Motor horsepower - 1/3 hp * Motor speed - 1400-2800 rpm *Ambient temperature range - -13oF to 158oF (-25oC to 70oC) * Hydraulic locking positions - opened and closed * Cabinet dimensions (l x w x h) - 7 7/8 x 14 15/16 x 42 1/2 in. (20 x 38 x 108 cm) * Cabinet weight - (approx.) 200 lb (91 kg) * Electric motor - single phase, bi-directional * Absorbed power - 220 W * Current drawn - 1 A * Pump delivery - 2.11, 3.16, 4.22 pt/min (1, 1.5, 2 l/min) * Motor - winding thermal cutout 248oF (120oC) *Torque - 0-331.87 ft-lb (450 Nm) * Anti-crush system - hydraulic valves (by-pass) * Mechanical deceleration adjustable * Casing anti-corrosion treatment - cataphoresis * Cabinet finish - polyester paint, powder coated RAL 2004 * Housing protection - IP 55 * Cooling - automatic fan |
| FAAC 640 Logical Operation The operation of the 620 or 640 Barrier is controlled by the 624 MPS Control Panel housed inside the operator cabinet. What accessories you install and which DIP switch settings you choose determine the logical operation of the beam. Two DIP switches on the control panel allow you to select the E (semi-automatic), A (automatic), P (parking), or R (remote) mode of operation. Furthermore, the barrier beam can be operated by hand during emergencies by means of a Manual Release mechanism. |
