FAAC is the undisputed world leader in automated systems for opening gates, doors and garage doors. We produce
automatic movement operators for gates, garage doors, barriers, rolling shutters, glazed doors, swing shutters, and access
control systems, with countless solutions for intensive, heavy commercial uses as well as for residential applications.
FAAC's hydraulic operators utilize modern technology assuring years of trouble-free, smooth and quiet operation for even
the largest gated communities. These operators have met rigorous UL-325 safety standard testing, thus reducing a
community's liability.
automatic movement operators for gates, garage doors, barriers, rolling shutters, glazed doors, swing shutters, and access
control systems, with countless solutions for intensive, heavy commercial uses as well as for residential applications.
FAAC's hydraulic operators utilize modern technology assuring years of trouble-free, smooth and quiet operation for even
the largest gated communities. These operators have met rigorous UL-325 safety standard testing, thus reducing a
community's liability.

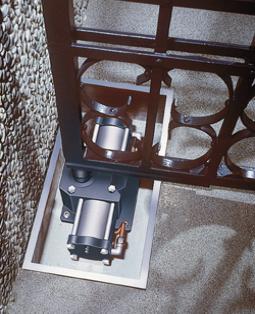

| The Model 750 is designed for in-ground installation in residential applications. It’s power and invisibility make the 750 ideal for large, ornate gates |
| FAAC 750 Hydraulic Swing Gate Operator The Model 750 hydraulic swing gate operator is designed specifically for underground installation in residential applications. Because of It’s power and invisibility, the 750 is ideal for large, ornamental gates. Hydraulic swing gate operators are inherently safer than other types of operators because they have fewer “pinch points.” In addition, the FAAC 750 operator is equipped with a hydraulic bypass valve for extra entrapment protection and a manual release that allows you to operate your gate if there is a power failure. A battery back-up unit is also available. The 750 hydraulic system can hydraulically lock your gate in the opened and/or closed positions. Your gate system can also be set up to provide special options including “gate-safe” or “gate-secure” configurations: • Gate-safe: during power outages, a magnetic lock releases a closed gate to permit emergency access. • Gate-secure: during power outages, an electric lock keeps a closed gate locked. The 750 allows your gate to open to the inside or to the outside. The versatile FAAC control panel allows for six operating modes including garage-door-like |
| FAAC 750 Hydraulic Swing Gate Operator Kit Includes * One pump motor assembly * One drive unit with metal enclosure and top * One 33 ft length of flex hose & one connector kits * One foundation plate * One 455 D control panel * One 14 x 16 in. weather resistant UL Listed, pre-wired, fiberglass enclosure * 115 VAC receptacle for accessories (5 amp max.) * ON/OFF switch controlling power to control panel, accessories and plug outlet * Large pre-wired terminals for easy wiring to control panel * Test button * Two or four warning signs |
| FAAC 750 Hydraulic Swing Gate Operator Application Residential, light commercial (ideal for ornamental gates) single leaf or bi-parting gate (vehicles only, not for pedestrian use) Cycles per hour 30 Maximum Gate Swing 110 degrees or 180 degrees 90 degree opening time 12 seconds Maximum weight per gate leaf up to 1760 pounds (800 kg) Maximum length per gate leaf Standard leaf: 8 feet (2.4 m) Longer leaf: 13 feet (4 m) Approx. operating temperature rang e-33oF to 165oF (-36oC to 74oC) (For extreme temperature conditions, arctic grade fluid is available upon request) Hydraulic locking Standard leaf: Available in opened and/or closed positions Longer leaf: Not available Voltage 115 VAC (1.5 A) or 230 VAC (1 A) Length 15.75 in. (40 cm) Width 7.88 in. (20 cm) Depth 4.88 in. (12.4 cm) |
| Due to the complexity of putting this package together, we recommend the FAAC 760 |
| FAAC 750 Hydraulic Swing Gate Operator Features Include: * One 455 D operates single leaf or bi-parting gates * Easy interconnection of loop detectors, photobeams, etc. to reverse a gate if an obstacle is sensed * Easy interconnection of actuating devices like remote control radios, key pads and telephone entry systems Selectable logics: * A (automatic): The gate opens on command and automatically closes after a pause phase. A second command on opening is ignored; a second command during the pause phase interrupts the pause time; a second command durring closing reopens the gate. A maintained open command will hold the gate open. * S (security): The security mode is like A logic except that a second signal during opening immediately closes the gate. * E (semi-automatic): Garage-door-like operation. This mode requires a signal to open and a signal to close. A second signal during opening or closing causes the gate to stop. A third signal then closes the gate. * EP (semi-automatic): Similar to E logic, but second signal stops gate, third signal reverses gate. * B (manned): Designed for guard station use and requires a 3-button switch (pulsed) to open, close and stop the gate. * C (manned and constant): Similar to B logic, but 3-button switch requires constant pressure on each button. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
