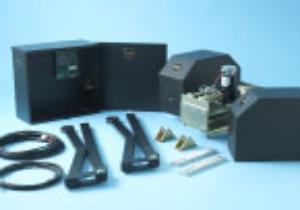

Apollo 3600ETL Dual Articulating arm Swing Gate Operator APOLLO OFFERS ITS ARTICULATING ARM SWING GATE OPERATORS IN TWO MODELS. THE 3500ETL AND 3600 ETL (DUAL) . BOTH MODELS ARE EASILY INSTALLED ON MOST EXISTING OR NEW SWING GATE. BOTH OPERATORS HAVE A NEW ARM DESIGN THAT ELIMINATES MAJOR PINCH POINTS. THIS OPERATOR IS PERFECT FOR HEAVY DUTY COMMERCIAL OR RESIDENTIAL CONTINUOUS OPERATION. THIS OPERATOR HAS A LOW PROFILE AND IS POST MOUNTED. THE 3500 ETL WILL OPERATE GATES UP TO 20 FEET LONG AND 1000 POUNDS. THE 3500 ETL AND 3600 ETL (DUAL) UTILIZES OUR ADVANCED CIRCUIT BOA RD 835/836. THE 835 SINGLE/836 DUAL CIRCUIT BOARDS OFFER ADDITIONAL INPUTS FOR A FIREBOX, OUTPUT MONITOR LIGHTS, A LOCK, SIREN AND STROBE LIGHTS. THE 3500 ETL / 3600 ETL D UAL HAS ADJUSTABLE LIMITS AND AN ADJUSTABLE ARM. THIS 3500 ETL / 3600 ETL DUAL IS THE BEST UNIT FOR ALL SWING GATE APPLICATIONS AND ARE TRUE LOW VOLTAGE 12 VOLTS DC BATTERY POWERED Manual Spec Sheet |
Apollo 3600ETL Dual Articulating Arm Swing Gate Operators APPLICATIONS: Battery Operated, Solar or AC Charged Swing Gate Operator. Recommended for heavy duty continuous Commercial use on gates up to 20 feet and 1000 lbs. OPEN OR CLOSE CYCLE TIME: 12 to 20 seconds depending on installation. BATTERY/ CONTROL PANEL BOX: 18” (46cm) x 18” (46cm) x 8” (20cm) Powder Coated Black SHIPPING INFORMATION: 3 boxes |
Apollo 3600 ETL Dual Articulating Arm Swing Gate Operator GENERAL DESCRIPTION: Apollo swing and slide gate operators are ready for installation upon receipt. A professional installer is recommended. Some welding is required for proper installation. BATTERY REQUIREMENT: 12 volt battery. Apollo recommends a maintenance-free, deep cycle marine battery – 105 amp./hour. (Not supplied) NOTE: In the event of electrical power outage, or significantly overcast days, a fully charged deep cycle marine battery (recommended) will provide up to 300 cycles or 30 days usage on a basic system before requiring a recharge. CIRCUIT BOARD: All standard Apollo operators are shipped with the 835/836 circuit board. Features of this board include: • Automatic, Adjustable Close Timer • Adjustable Current Sensitivity for Automatic Safety Reverse • Inputs for: Free Exit Loops, Safety Loops, Under Gate Loops, Safety Edges, Free Exit Probes, Keypads, Telephone Entry Systems, Intercom Systems, Pushbuttons, Locks, Radio, Receivers • Fully Systems Capable MOUNTING: A 4x4 post with heavy wall tubing recommended. Optional Accessory OPERATOR DIMENSION: Depth 17.8” Height 12.1” Width 8.3” |
About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
Apollo 3600ETL Arm Swing Operator AVAILABLE OPTIONS: • AC Trickle Charger or Solar Panels • Complete Line of Radio Transmitters and Receivers • Wired or Wireless Digital Keypads • Wired or Wireless Exit Buttons • Intercom Systems • Telephone Entry Systems • Locks – Mechanical, Magnetic, Solenoid • Safety and Free Exit Loop Detectors • Safety Edges • 3-Button Control Stations • Exit Probe Detectors • Photocell Detectors |
|
|
