|LiftMaster® Elite Series® model CSW24V Battery Back Commercial Swing Gate Operator
The LiftMaster® Elite Series® model CSW24V is engineered for a million cycles in high-cycle, heavy-duty applications. A Battery Backup System
provides uninterrupted access when the power is out, and Security+ 2.0™ technology virtually eliminates radio interference. It also features integrated
MyQ™ technology and the industry's only standard wireless dual gate communication system. The CSW24V is rated for gates 18 ft. long or 1,200 lbs.
|The LiftMaster® Elite Series® model CSW24V is engineered for a million cycles in high-cycle, heavy-duty applications. A Battery
Backup System provides uninterrupted access when the power is out, and Security+ 2.0™ technology virtually eliminates radio
interference. It also features integrated MyQ™ technology and the industry's only standard wireless dual gate communication system.
The CSW24V is rated for gates 18 ft. long or 1,200 lbs.
Battery Backup System provides uninterrupted access when the power is out.

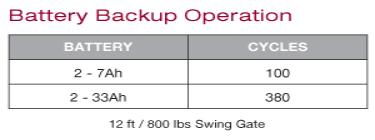

Provides up to 7 days or 100 cycles on battery backup. Also powers safety and ancillary devices.
Provides 2x the range of standard remote controls.
Our patented Security+ 2.0™ Technology provides two times the range of standard remote controls and virtually eliminates radio
interference. An on-board radio receiver is included with the CSW24V. It holds up to 50 remotes and is compatible with HomeLink®
version 4 and higher.
Wireless dual gate communication prevents driveway scars and expensive wiring.
The on-board radio receiver provides a single remote control solution for gates and additional access points. It also features the
industry's only standard wireless dual gate communication system that saves installation time and cost and eliminates unsightly scars
from cutting driveways to run conduit for primary/secondary communication wiring.
•Power Management System ◦Supplies power when needed to operate the gate and conserves power when not in use
◦Provides exceptional standby time and cycles on battery backup
◦7 days of standby time or 100 cycles on battery backup
•Fire department compliant: selectable settings allow gate to auto-open upon loss of AC power or battery depletion
•Advanced traffic management control includes Quick-close and Anti-tailgating functions
•Bi-part delay: choose from Standard Operation or Synchronized Close
•Simple-to-set electronic limit system maintains accurate gate position throughout gate travel
•High-density, UV-resistant polycarbonate two-piece cover for excellent heat and corrosion resistance
•Programmable auxiliary relays
•Plug-in loop detectors
•External obstruction sensing; complies with UL325 safety codes
•5-year commercial warranty; 7-year residential warranty
•24VDC continuous-duty motor with soft start/stop
•Operator duty rating: continuous
•Power: 110V or 220V Single Phase
•Gate travel speed: 90-degree opening in 13-15 seconds
•Constructed with 1/4" gold zinc-plated steel for rust prevention
•Weight: 206 lbs.
•Photo eyes and reversing edges
•Plug-in loop detectors
|Power Management System while minimizing power consumption at all other times. Power is provided to the gate operator via batteries.
The batteries are charged from a solar panel(s) connected to the operator control board. The number of solar panels required is
determined by whether the application is for a single or dual gate, daily cycle rate, number of accessories and region of the country.
The map and daily cycle rate shown are
approximations based upon the average solar radiation and the temperature effects on batteries in the given
regions. Local geography and weather conditions may require additional solar panels. Low Power Draw or Wireless Accessories are
recommended in order to minimize power draw, as added accessories draw
power and affect the daily cycle rate. Solar panel(s) must be located in an open area clear of obstructions and shading for the entire
day. Snow, heavy fog or heavy rain affect solar panel performance and charge rate. The CSW24V and CSL24V is not supported in
climates where temperatures reach below -4°F. This is due to the effect of cold weather on batteries and a reduced number of hours
of sunlight during the winter months. Cycle rate may vary from solar chart for areas that reach below 32°F. Optional 33Ah batteries (2)
recommended for applications that reach below 32°F (and above -4°F) for more than 2 consecutive weeks during the winter months.
Solar panels should be cleaned regularly to ensure proper operation. For solar applications disconnect the expansion board and do
not use the wireless dual gate feature. These features will substantially decrease the cycle rate and standby time
