SG2-Select Engineering-Residential Phone Entry-Access Control
“Do Not Disturb” by Time Zone (schedule). 100 PIN Codes, each programmable by Time Zone and
function as well as making them valid by date or permanent. 9 Programmable Time Zones. 26 Bit
Wiegand Input, for Card Reader, Receiver and Slave Keypad. 100 Cards or Transmitters, for access
without using the keypad each programmable by time zone as well as making them valid by date or
permanent. Large Event Log Buffer (approx. 800). Calls 10 Additional Numbers. Call Forward by Time
Zone. Works on the Existing Phone Line. Long Life White LED Lighting. Low Power Consumption, for
Solar Panel Applications. Local call waiting and transfer. Weather resistant housing Programmable by
Keypad or touch tone phone. Latch the Gate (entrance) open from the keypad or remotely with a phone.
(1 hour or indefinitely.)
|
|
|
SG2M Select Engineering with Modem & Software
Aditional features in the SG2M
SG2M is shipped with a 2400 baud modem and programming software.
ALL SG2M functions match the SG2.
SG2’s can not be upgraded to SG2M in the field, and must be ordered as SG2M
|
|
|
SG3DMR STANDARD FEATURES
• Voice messages for visitor convenience.
• RF Receiver for entrance control built-in.
• 26 Bit Wiegand input, for card reader, RF receiver and Slave Keypad.
• Supports 100 cards or transmitters, for access without using the keypad - each programmable by
time zone and function as well as making them valid by date or permanent.
• 100 PIN codes, each programmable by time zone and function as well as making them valid by date or
permanent.
|
|
|
The TEC101 provides basic telephone entry with the SES advantage. TEC101 is offered in four
capacities; 50, 125, 500 and 995 codes to match your building’s requirements. Both units are offered
with 2 relays standard and have a two line LCD directory display that is easily read in direct sunlight or
at night. As with all SES telephone access systems, the TEC101 is provided with board level surge
suppression at no additional cost, and the stainless steel front door and aluminum back box is sure to
provide years of faithful service. The TEC101 has a two year limited warranty, and is designed to the
same standards as the TEC and CAT product lines.
STANDARD FEATURES: Basic Telephone Entry TEC101
- TWO RELAYS ----- NO SUNSHIELD NEEDED TO READ LCD DISPLAY
- LCD DISPLAY BACKLIT FOR NIGHT VIEWING
- BOARD LEVEL SURGE PROTECTION FOR ALL WIRING, IN AND OUT
- TRANSFORMER INCLUDED
- PROGRAMMABLE VIA KEYPAD
- DISPLAY WORKS IN COLD OR HOT WEATHER: –0F to +158F
- WEATHER RESISTANT HOUSING
- TWO YEAR LIMITED WARRANTY
|
|
|
Select Engineered Systems TEC101C, 26-Bit Weigand Card Reader Capable, SES TEC101C
TEC101C - All of the above features plus:
• Weigand 26-bit card-capable, supports two card readers.
Card capacity of system matches memory size of TEC1C.
|
|
|
Select Engineered Systems TEC101CA, Clock, Calendar, Modem and Software
included. SES TEC101CA
TEC101CA - All of the above features plus:
• Clock, calendar, modem and software included.
Card capacity of system matches memory size of TEC101CA.
|
|
|
The TEC 2 provides a single name, backlit LCD display that will scroll both forward and backward. The
TEC2 characters are 5/16” (8 mm) high. This display is very clear, even in bright sunlight. Ideal for
Residential gated communities, Commercial Buildings, Apartment buildings / Condominiums /
Townhouses, Retirement homes / Convalescent homes, Hospitals, or Office buildings.
Maximum card (transmitter) capacity is 16,200 (each with a name attached).
• The TEC 2 will control two entrances, with two relays.
• Maximum phone number capacity is up to 2,000.
• Maximum “PIN” number capacity is up to 2,000.
• Multi-level power surge suppression.
• Non-volatile memory.
• High quality stainless steel face for years of service.
• All pc boards are treated with a moisture barrier.
• Limited 2 year warranty.
|
|
|
Select Engineered Systems TEC4HF Telephone Entry Control - SES TEC 4 HF
The TEC 4 provides a four names at a time with a backlit LCD display that will scroll both forward and
backward. The TEC4 characters are 3/8” (10 mm) high. This display is very clear, even in bright
sunlight. Ideal for medium sized
apartments, condos or gated communities.
• The TEC 4 will control two entrances, with two relays.
• Maximum phone number capacity is up to 2,000.
• Maximum “PIN” number capacity is up to 2,000.
• Multi-level power surge suppression.
• Non-volatile memory.
• High quality stainless steel face for years of service.
• All pc boards are treated with a moisture barrier.
• Limited 2 year warranty.
|
|
|
Select Engineered Systems TEC8HF Telephone Entry Control - SES TEC 8 HF
The TEC VIII and AdvanTEC provide outstanding standard features:
• Directory display provides 8 names at a time with characters that are 5/8” (14 mm) high and the
directory scrolls forward and backward.
• The LCD directory display is provided with back lighting, and is very clear even in bright sun light.
• The TEC 8 and AdvanTEC will control two entrances, without options.
• Maximum phone number and name capacity is up to 2,000.
• Maximum PIN (personal identification numbers) is up to 2,000.
• Multi-level surge suppression.
• Non volatile memory.
• The TEC8 is provided with a lighted hood.
• The AdvanTEC is suggested for a lobby or covered entrance.
• 2 year limited warranty.
|
|
|
Select Engineered Systems CAT2HF Access Control - SES CAT 2 HF
The CAT 2 provides a single name, backlit LCD display that will scroll both forward and backward. The
CAT2 characters that are 5/16” (8 mm) high. This display is very clear, even in bright sunlight. Ideal for
small apartments or small gated home sites.
STANDARD FEATURES
• CAT 2 display provides 2 lines and 1 name per directory screen.
• Displays are backlit and visible in bright sunlight .
• Two wiegand card reader inputs.
• Two entrance control with 2 relays.
• RS485 expansion port.
• Data base has 6 cards per PIN Code / Phone number.
• 56K baud modem.
|
|
|
Select Engineered Systems CAT4HF Access Control - SES CAT 4 HF
The CAT 4 provides a four names at a time with a backlit LCD display that will scroll both forward and
backward. The CAT4 characters that are 3/8” (10 mm) high. This display is very clear, even in bright
sunlight. Ideal for medium sized
apartments, condos or gated communities.
STANDARD FEATURES
• CAT 4 display provides 4 lines and 4 names per directory screen.
• Displays are backlit and visible in bright sunlight .
• Two wiegand card reader inputs.
• Two entrance control with 2 relays.
• RS485 expansion port.
• Data base has 6 cards per PIN Code / Phone number.
• 56K baud modem.
|
|
|
Select Engineered Systems CAT8 Access Control - SES CAT 8 HF
Display provides 8 names at a time with characters that are 5/8” (14 mm) high and the directory scrolls
forward and backward.
• The LCD directory display is provided with back lighting, and is very clear even in bright sun light.
• 56K baud modem.
• 13,000 event log buffer.
• The CAT 8 and BlackCAT will control two entrances, without options.
• 2 reader inputs (ready to add readers and cards or transmitters and receivers)
• RS485 expansion port (add up to 12 additional readers and 256 relays)
• 16 time zones, 16 access levels and 16 access groups.
• Maximum phone number capacity is 2,700.
• Maximum card (transmitter) capacity is 16,200 (each with a name attached).
|
|
|
Select Engineered Systems CAT10HF Access Control - SES CAT 10 HF
The CAT 10 provides a multiple name, backlit LCD transflective display that will scroll both forward and
backward to display 10 names at a time. The CAT 10 characters are 1/2” (12.7 mm) high. The first two
lines of the main LCD screen are user programmable. The display is clear, even in bright sunlight. Ideal
for apartments, condominiums, gated communities or assisted living facilities.
• The CAT 10 comes with a back-lit blue keypad for easy night time use. The CAT 10 features the new
SES HY-Lock® ultra-vandal resistant lock assembly that firmly secures the front door using a 1/4 - 20
threaded spindle with a tubular key
|
|
|
Select Engineered Systems TEC Vision Telephone Entry Control - SES TEC VISION
• TEC Vision provides three programmable character sizes.
• TEC provides 8, 24 or 48 names per screen.
• The display is scrolled with up and down buttons.
• Maximum phone number and name capacity is 2,000.
• Maximum “PIN’s” (personal identification numbers) is 2,000.
• Multi-level surge suppression provides protection from power spikes.
• Non-volatile memory.
• 16 gauge stainless steel face with heavy gauge aluminum back box.
• All pc boards are treated to resist moisture.
• Supports two entrances standard with two relays.
• Two year limited warranty.
|
|
|
Select Engineered Systems CAT Color Vision Access Control - SES TEC COLOR VISION
• CAT Color Vision provides 8 font, 8 background colors.
• CAT Color Vision:
Single column shows 8 names approx. 5/8” high, (display features are programmable)
Double column shows 38 names approx. 5/16” high, (display features are programmable)
Three columns shows 90 names approx. 5/32” high (display features are programmable)
• CAT Vision show 8, 24 or 48 names, programmable.
• Two wiegand card reader inputs.
• Two entrance control with 4 relays.
• RS485 expansion port.
• Data base has 6 cards per Code/Phone number.
|
|
|
Select Engineered Systems CAT Vision Access Entry Control - SES CAT VISION
2 reader inputs (ready to add readers and cards or transmitters and receivers)
• RS485 expansion port (add up to 12 additional readers and 256 relays)
• 16 time zones, 16 access levels and 16 access groups.
• Maximum phone number capacity is 2,700.
• Maximum card (transmitter) capacity is 16,200 (each with a name attached).
|
|
|
Select Engineered Systems CATDR4 Access Control - SES CATDR4 CAT Expansion Modules
The CATDR4 works with any CAT and provides four wiegand inputs for card readers, keypads or long
range proximity. Includes all of the necessary relays to control up to four entrances.
• Each CATDR4 is controlled by the CAT and is connected via RS485.
• Three CATDR4’s may be added to any CAT and the last expansion module can be 4,000 feet away.
• Each CATDR4 is “opto isolated” from all other expansion modules and the CAT providing additional
surge suppression and isolation of any surge damage.
• CATDR4’s and CATRLY8 may both be added to any CAT.
STANDARD FEATURES FOR CATDR4:
• CATDR4 is a four reader expansion module that will interface with any CAT.
• CATDR4 is supplied with a 18 VAC 40VA transformer.
• Up to 3 CATDR4 expansion modules may be added to any CAT.
• The CATDR4 is opto Isolated (electrically isolated) from any other expansion module(s) and the CAT.
• The CATDR4 provides 4 wiegand reader / keypad inputs.
• The CATDR4 provides door sense input, REX (request toexit) input, door shunt output and door
release output foreach of the 4 entrances. (relay output is 24V AC/DC @ 3 amps)
• The CATDR4 (maximum 3) may be used with theCATRLY8 (maximum 32) on any CAT expansion.
• The CATDR4 is programmed via the CAT using Selcom software.
|
|
|
Select Engineered Systems CATRLY8 Access Control - SES CATDR4 CAT Expansion Modules
The CATRLY8 provides 8 relays for controlling elevator access.
• The CATRLY8 may also be used to control other items like lights or HVAC systems.
• The CATRLY8 is “opto isolated” from all other expansion modules and the CAT to provide additional
surge suppression and isolation of any surge damage.
• 32 CATRLY8’s may be added to any CAT providing up to 256 relays per system.
• The CATRLY8’s and CATDR4’s may both added to any CAT.
STANDARD FEATURES FOR CATRLY8:
• CATRLY8 is an eight relay expansion module that will interface with any CAT.
• CATRLY8 relay output is 24V AC/DC @ 3 amps.
• CATRLY8 is supplied with a 18 VAC 40VA transformer.
• Up to 32 CATRLY8 expansion modules may be added to any CAT (total of 256 relays maximum).
• The CATRLY8 is opto Isolated (electrically isolated) from any other expansion module(s) and the CAT.
• The CATRLY8 (maximum 32) and CATDR4 (maximum 3) may be used with any CAT expansion.
• The CATRLY8 is programmed via the CAT using Selcom software.
|
|
|

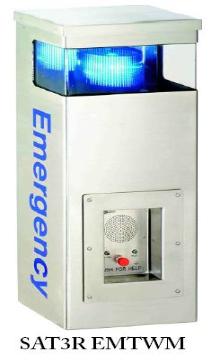

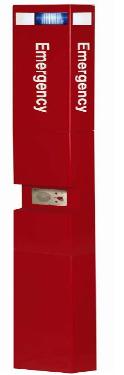

Select Engineered Systems SAT3 With Hood, Emergency Call Stations - SES SAT 3
• Central Station compatible (SIA Fast Format).
• Telephone line powered.
• 1200 baud modem for programming is included.
• Calls both central station and regular telephone numbers, in any order.
• “Push for Help” calls up to 10 pre-programmed phone numbers (16 digits each).
• Calls can only be ended by the called party, time out or call progress signals.
• Can be called for programming, monitoring, testing and controlled remotely (password protected).
• 3 ways to program:
1200 baud modem with menus
Hand held programmer
Touch tone telephone
• Senses full call progress signals.
• Location can be identified by Account number with Zone (SIA Fast Format) or DTMF.
|
|
|
Select Engineered Systems SAT3R EMTWM - Self-identifying Automatic Telephone Emergency Tower
Single button push places an emergency or assistance call based upon up to 10 preprogrammed
telephone numbers or
extensions, as well as activating the strobe light to attract attention.
• The SAT3R EMTWM can place a call even if the power has failed, as long as there is a live telephone
line.
• Dialer will automatically roll-over to next preprogrammed phone number if there is no answer or the
dialed number is busy. Total capacity is 10 pre-programmed phone numbers.
• After a dialed call is placed, the called party can terminate communication. Talk time can be set from
1-9 minutes or 20 minutes — all programmable by user.
• Security personnel can call SAT3R EMTWM for remote audio monitoring functions.
• Emergency dialer phone numbers can be 16 digits long and can work on most PBX’s.
• System location can be identified by the DTMF touch tones and Central Station compatibility (SIA Fast
Format).
• A.D.A. compliant and provides LED indicators for both “CALLING” and “TALK”. Braille instructions
available for the sight impaired.
• Emergency dialer provides an additional output relay that can be used to activate equipment like a
camera. This relay can be activated by the Call button or activated remotely.
• SAT3R EMTWM is constructed of heavy gauge stainless steel for years of dependable service.
• Multi-level surge suppression built into electronic systems.
• 2 year limited warranty.
|
|
|
Select Engineered Systems SAT3R EMTW - Self-identifying Automatic Telephone Emergency Tower
|
