A complete line of controllers, radio receivers, transmitters, and
accessories for configuring and upgrading access control systems.
Capabilities include telephone entry systems, radio-based products
for remote "keyless entry", "panic" alarms and greater handicapped
access, as well as traditional forms of access control, such as
keypads and swipe card readers.

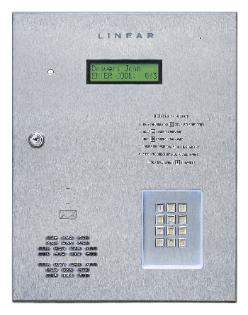

Linear AE1000 PLUS
The Model AE1000Plus Commercial Telephone Entry System
with Access Control - Four Doors is designed for use as a
primary access control device for gated communities, parking
garages, office buildings, apartments, dormitories,
hotels/motels, commercial buildings and recreational facilities.
The AE1000Plus provides control for any combination of four
portals (gates and/or doors). It includes a
built-in radio for adding remote control via user transmitters, a
function enhanced by the fact that Linear is also a leader in RF
technology and offers the industry’s widest range of
transmitter styles. The
system is housed in a heavy-duty 16 gauge powder coated
steel cabinet with a 16 gauge brushed stainless steel front
panel.

Linear AE1000Plus Commercial Telephone Entry System with Access Control
Four Doors is designed for use as a primary access control device for gated communities, parking garages,
office buildings, apartments, dormitories, hotels/motels, commercial buildings and recreational facilities.

Housed in a locked, rugged stainless steel faced enclosure, the AE1000Plus features a side-lit 12-key
telephone style keypad with bright, easy-to-read graphics, a backlit two-line directory display with
programmable welcome message, a built-in microphone, speaker, and provision for an optional Model CCM-1
color CCTV camera. The cabinet is monitored with a magnetic tamper switch.

The four relay output channels can be programmed to control electric door strikes, magnetic locks, door &
gate operators, or barrier gates.

The system utilizes hands-free, full duplex telephone communications between visitors and residents for
granting access. Complete access control event logging, access time restriction, access location restriction,
and administration functions are also available to manage the installation.

For easy programming, the AE1000Plus contains Linear's built-in browser-based AXNET software. The system
can be programmed and maintained from any computer world-wide, without using dedicated computer
software. The AE1000Plus is also compatible with Linear’s powerful AccessBase2000 dedicated access control
PC software.

The AE1000Plus is network ready. AE1000Plus units can be interconnected with Linear’s AM3Plus and
AE2000Plus Telephone Entry Systems through a 3-wire RS-485 or modem network. The AE1000Plus can be used
in networks with the legacy AM-3, AE-1000, and AE-2000 Telephone Entry Systems in installations programmed
with AccessBase2000 software only.

Two Wiegand inputs are available for connection of 26, 30, or 31bit Wiegand devices (card readers, etc.).
Three sets of PBUS inputs are available for connection to Linear’s line of remote accessories.

Capabilities with AXNET Programming
Programming using any PC and Internet browser software
Up to 2,000 cardholders
Up to 24 card blocks with up to 1,600 cards each (38,400
total)
Up to 2,000 individually enrolled cards
Up to 24 transmitter blocks with up to 1,600 transmitters
each (38,400 total)
Up to 2,000 individually enrolled transmitters
Up to 2,000 key codes
Up to 2,000 telephone directory codes
2,500 event log entries per unit
Up to 8 access time zones
Up to 4 PBUS devices per unit

Capabilities with AccessBase2000 Programming
Programming using a dedicated PC and AccessBase2000
software
Up to 10,000 cardholders grouped in sets
Up to 24 card blocks with up to 1,900 cards each (45,600 total)
Up to 20,000 individually enrolled cards
Up to 24 transmitter blocks with up to 1,900 transmitters each
(45,600 total)
Up to 20,000 individually enrolled transmitters
Up to 20,000 entry codes for cardholders
Up to 10,000 telephone directory codes for cardholders
20,000 event log entries per unit
Up to 31 access time zones
Up to 6 PBUS devices per unit

Features
Full control of 4 doors; each supporting request to exit and door status monitoring
Housed in a locked, rugged stainless steel face enclosure
Side-lit 12-key telephone style keypad
Back-lit two-line directory display with programmable display messages
Built-in microphone and speaker
Built-in RF receiver
Many installation choices: surface, gooseneck, and recessed (with TR-1000 trim ring)
Programmable directory code length and talk time; extended talk time allowed per cardholder
Direct input for 2 card readers; add AM-CRI's for more
Local or remote programming using a PC
Relay auto lock/unlock schedules
Automatic door relock when door sense input is used
Extensive ESD and lightning protection of all inputs and outputs
Cabinet tamper switch included; tamper events are tracked in the event log
All data memory is non-volatile FLASH with data retention in excess of 10 years
RF frequency: 318 MHz
13" W x 16.75" H x 3.5" D

Product Number: ACP00951
