FAAC is the undisputed world leader in automated systems for opening gates, doors and
garage doors. We produce automatic movement operators for gates, garage doors, barriers,
rolling shutters, glazed doors, swing shutters, and access control systems, with countless
solutions for intensive, heavy commercial uses as well as for residential applications. FAAC's
hydraulic operators utilize modern technology assuring years of trouble-free, smooth and quiet
operation for even the largest gated communities. These operators have met rigorous UL-325
safety standard testing, thus reducing a community's liability.
garage doors. We produce automatic movement operators for gates, garage doors, barriers,
rolling shutters, glazed doors, swing shutters, and access control systems, with countless
solutions for intensive, heavy commercial uses as well as for residential applications. FAAC's
hydraulic operators utilize modern technology assuring years of trouble-free, smooth and quiet
operation for even the largest gated communities. These operators have met rigorous UL-325
safety standard testing, thus reducing a community's liability.
| FAAC 770 In Ground Swing Gate Operator Specifications * Duty Cycle * 50 cycles per hour * Maximum Gate Swing 120 Degrees * 90 Degree Opening time 13 Seconds * Maximum Weight per gate leaf 800 lbs. (363 kg) * Maximum length per gate leaf 10 feet (3 m) * Approx. operating temperature range -4°F to 131°F (-20°C to 55°C) * Voltage Primary: 115vac * Secondary: 2vac (100va transformer) * Power Consumption 40 W * Current Consumption 2 A * Effective Stroke 16.5 in. (41.9 cm) * Protection Class Nema 4x |

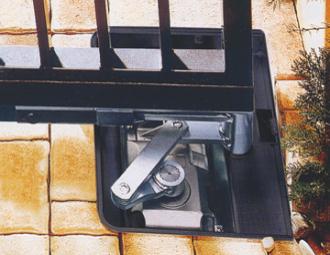

| The FAAC 770 COMPACT automation system for swing gates is a geared motor. It is designed for underground installation and therefore does not alter the appearance of the leaf. |
| FAAC 770 In Ground Swing Gate Operator The FAAC 770 Compact automation system for swing gates is a geared motor. It is designed for underground installation and therefore does not alter the appearance of the leaf. The operators are controlled by an electronic control unit mounted in an enclosure which assures adequate protection against atmospheric agents. The leaves are normally closed. When the electronic control unit receives an open command from the remote radio control or any other control device, it activates the electromechanical system and causes the leaves to rotate by an angle of up to 110° to their open position, so as to allow access. If automatic operation has been selected, the leaves close automatically after the selected pause time. If semiautomatic operation has been selected, a second impulse must be sent to close the leaves. An open command given while the leaves are closing causes the leaves to reverse direction of movement. A stop command (if available) stops movement at any time. For detailed information on the operation of the automation system in the various operating modes, contact the installation technician. The automation system is equipped with a safety device consisting of photocells. When the photocells are darkened by an obstacle, they prevent the leaves from closing. The 770 Compact automation system is also equipped with an anti-crushing safety device (fitted as standard) that limits the torque transmitted to the leaves. The operators ensure that the system is mechanically locked when the motor is not running, so there is no need to install a lock. The leaves can be opened manually only by operating the unlocking device. The lamp flashes while the leaves are moving. |
