A complete line of controllers, radio receivers, transmitters, and
accessories for configuring and upgrading access control systems.
Capabilities include telephone entry systems, radio-based products
for remote "keyless entry", "panic" alarms and greater handicapped
access, as well as traditional forms of access control, such as
keypads and swipe card readers.
accessories for configuring and upgrading access control systems.
Capabilities include telephone entry systems, radio-based products
for remote "keyless entry", "panic" alarms and greater handicapped
access, as well as traditional forms of access control, such as
keypads and swipe card readers.

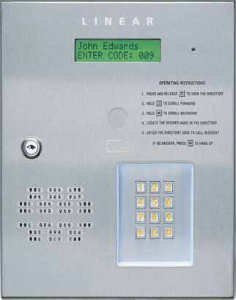

| Linear AE-500 Telephone Entry System The Model AE-500 Commercial Telephone Entry System - Two Doors is designed for use as a primary access control device for gated communities, parking garages, office buildings, apartments, dormitories, hotels/motels, commercial buildings and recreational facilities with up to 250 residents or users. The system can be programmed locally using the keypad, remotely with a touch tone telephone, or remotely using a computer equipped with a modem and a web browser. The system utilizes hands-free, full duplex telephone communications between visitors and residents for granting access MANUAL SPEC SHEET |
| Linear AE-500 Telephone Entry System The guiding principle behind Linear’s AE-500 is that a telephone entry system should be a model of simplicity. Easy to specify. Easy to install. Easy to configure. And above all, easy to use. A close examination of every aspect of this system reveals that ease is an across-the-board attribute. That makes the AE-500 desirable for installations with as few as 25 users or as many as 250. Multi-tenant sites like gated communities, apartments, condominiums, and dormitories can all benefit from its simplicity and its expansive capabilities. The AE-500 provides control for a single gate or a door, two gates, two doors, or a gate and a door. It includes a built-in radio for adding remote control via user transmitters, a function enhanced by the fact that Linear is also a leader in RF technology and offers the industry’s widest range of transmitter styles. No matter what size your telephone entry requirements run, it is likely that Linear can supply a system. With many years in the field, we have assembled a family of products to address nearly every need. By every meaningful measure, Linear makes telephone entry easy. ROBUST MEMORY, VIVID DISPLAY, RADIO, MODEM — THE COMPLETE PACKAGE. There is nothing incremental about the AE-500. For a simple system, it comes fully equipped for your telephone entry application. It has ample non-volatile memory for up to 250 users, which means that even if you start with 25 users, you won't need to keep adding more memory blocks (at greater expense) as your needs grow. That memory stores up to 250 directory codes, 500 block-coded Mega-Code transmitters, and 500 entry codes. An entry code can be programmed for unlimited use or as a temporary code for up to 250 activations. The latter type is ideal for contractors and other short-term system users. An especially high visibility component is a 2 line by 16 character transflective backlit LCD that brightly displays the system’s user directory, as well as a helpful series of user prompts. A built-in radio offers additional entry capabilities via wireless transmitter control. An integral modem greatly simplifies programming. General Specifications COMMUNICATIONS - Full Duplex, hands free operation PROGRAMMING - Telephone Entry: 2-4 digit directory code length, display messages, talk time duration OUTPUTS - Relay: 2 form “C” relays; both can be configured for open/ close; all relay contacts have extensive RFI, ARC and lightning suppression, - Modem: for remote programming – 14.4 Kbps DISPLAY - Front Panel: LCD technology, 2 lines by 16 characters - Keypad Lighting: surround LED lighting for the front panel keypad; LEDs remain on at 50% intensity until a key is pressed; once a key is pressed, LEDs illuminate at 100% intensity for a period of 2 minutes INPUTS - PBUS: 1 set for connecting proprietary wired keypad - RF: 318 MHz super heterodyne receiver with -100 dBm sensitivity; built-in 20 dB adjustable attenuator for fine tuning radio performance; antenna required for use with transmitters - Request To Exit: 2 normally open inputs; each input assigned to specific relay - Door Sense: monitors status of main relay - LEDs: for configuration, status and troubleshooting POWER - 12/24 VAC or VDC, 500 mA DC typical; 750 mA DC maximum OPERATING TEMPERATURE -22° to +149°F DIMENSIONS - 12.75 in H x 10.75 in W x 3.5 in D (3.24 x 273 x 89 mm) Optional Trim Ring: 14.75 in H x 12.75 in W x 2.75 in D (375 x 324 x 70 mm) MEMORY - 250 directory codes, 500 block coded MegaCode transmitters, 500 entry codes; entry codes can be programmed for unlimited use or temporary use with up to 250 activations; all data is stored in non-volatile memory CONNECTIONS - all connections grouped together in neighborhoods for ease of installation and maintenance; wire connections via removable terminal blocks ENCLOSURE - 16 gauge powder coated steel cabinet; 16 gauge brushed stainless steel front panel STANDARD EQUIPMENT - AE-500 Two Portal Telephone Entry system with built-in radio receiver and modem for computer programming; accepts transmitters and keypads as inputs; surface or gooseneck mounting standard OPTIONAL EQUIPMENT - CCM-1: color camera receives power from control board CPDM-1: digital modulator converts raw video output of camera to TV channel for distribution TR-500: trim ring for flush/recess mounting ANTENNAS EXA-1000: remote, omni directional; includes mounting hardware and five feet of cable EXA-2000: remote, directional-type; includes mounting hardware and ten feet of cable Product Number: ACP00899 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
