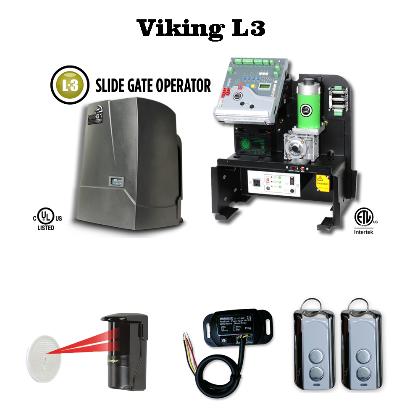

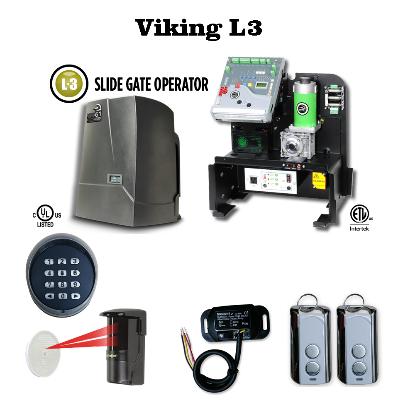

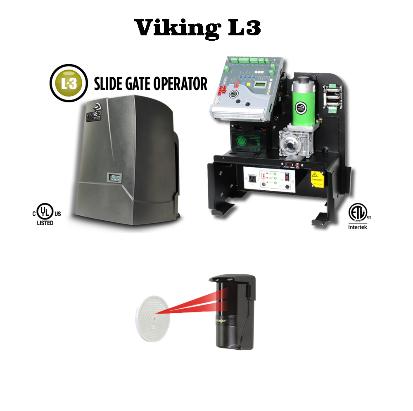

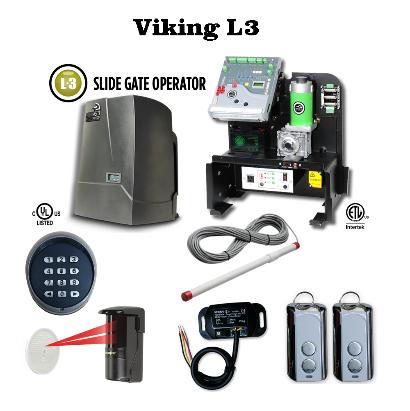

|Viking L-3 Slide Gate Operator CLASS I, CLASS II, CLASS III, CLASS IV VEHICULAR GATE OPERATOR
|Viking L-3 Slide Gate Operator / Gate Openers - The L-3
gate operator has the capacity to operate slide gates up
to 1200 lbs. and 40 feet in length at 100% duty cycle
under extreme conditions. It’s efficient mechanism
provides a solution for high traffic commercial slide
gate applications. The Viking L-3 gate operator offers
efficiency and technology combined in a single package.
|Viking L-3 Gate Operator / Slide Gate Operator
Operation 24 VDC with 1/2 H.P. Motor
Main Power Source 120 / 220 VAC Single Phase
Battery 7 AmpHr 12 VDC x 2
Max Gate Weight 1200 lbs.
Max Gate Length 40 Feet
Max Operating Speed 12" per second
Battery Backup Operation 100 Full Cycles (1000 lbs. / 20'
Max Duty Cycle 100% (Continuous Cycles)
Operating Temperature -4°F to +158°F

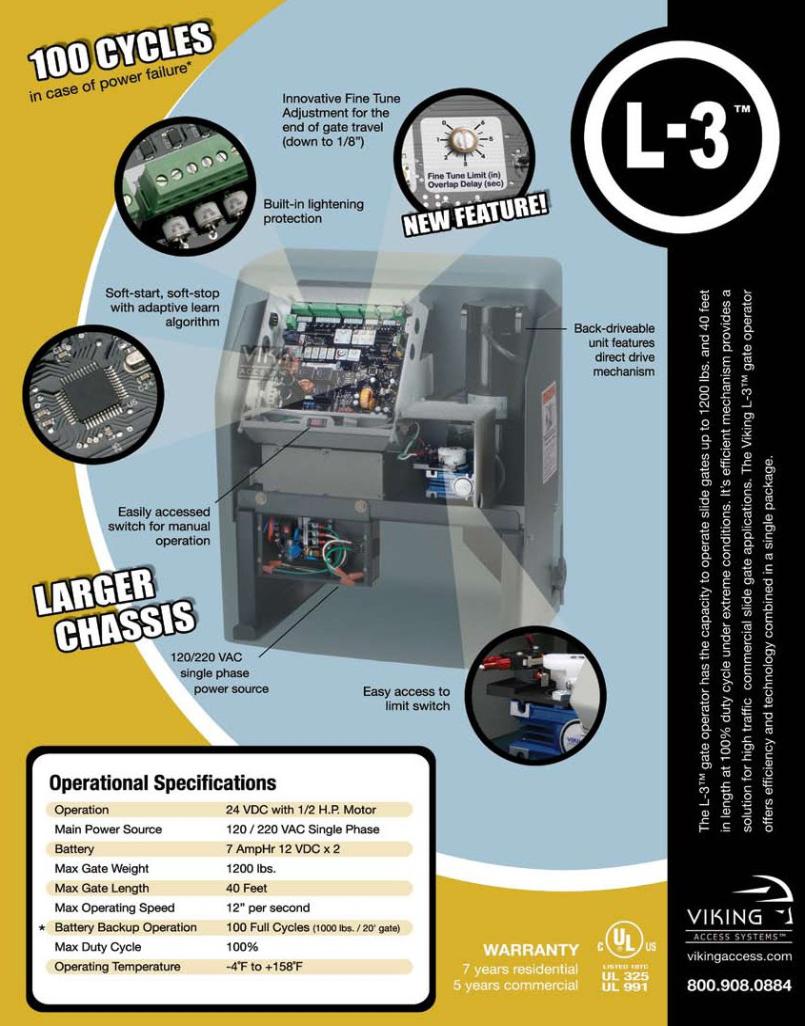

|Viking L-3 Slide Gate Openers / Gate Operators - Some of the
standard features include: 7 year residential and 5 year commercial
warranty, UL 325 and 991 listing, innovative fine tune adjustment for
the end of gate travel ( down to 1/8" ), back drivable unit featuring
direct drive mechanism, soft start and soft stop with adaptive learn
algorithm, easy accessed switch for manual operation, 120/220 VAC
single phase power source, a built in three push button station, a
built in battery backup capable of 100 cycles in case of power
failure, on-board lightning protection, and easy access to limit
|About Us | Contact Us | Our Policies | FAQ | Manufactures | Links |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be
reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written
consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com
|L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147

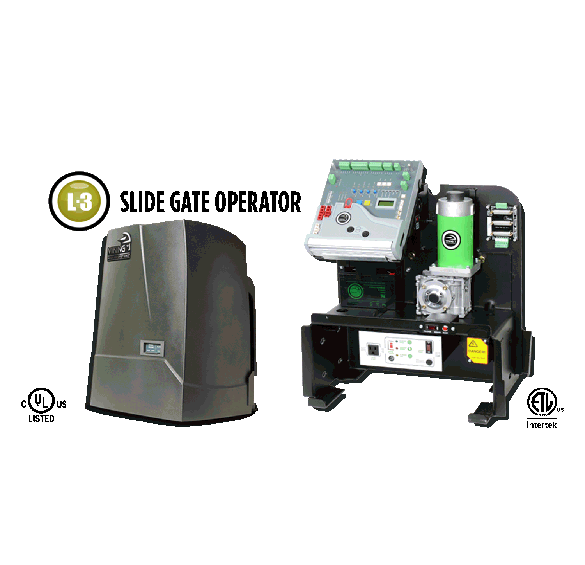

|Viking L3 2nd Gen Slide Gate Operator
Viking is proud to announce the 2nd generation L3 Slide gate
operator. A few of the great new features include:
Plug and Play connection for “Viking Blue” add-on products.
Viking Blue – Wireless Diagnostic Tool provides diagnostic
information wirelessly within range of the Control Board.
Advanced lightning strike protection up 20,000 volts/10,000 Amps
On board surge protection monitoring
Power saving technology minimizes curret draw while at standby.
New solar enabled feature to maximize operation time.
On-board LCD Monitor displays voltages, amps, gate status and
Plug and Play connection for "Viking Wifi" add-on. Remote access
to the control board settings, programming, operator diagnostics,
gate controls and gate status all from the convenience of a
computer or any compatible handheld device.
Motor: 24 VDC 1/2 HP
Operating Speed: 12 inches per second
Duty Cycle: 100%
Battery Backup: 100 Cycles
Power Source Options: 115V/230V AC single Phase
Operating Temp: -20 F to 158 F
