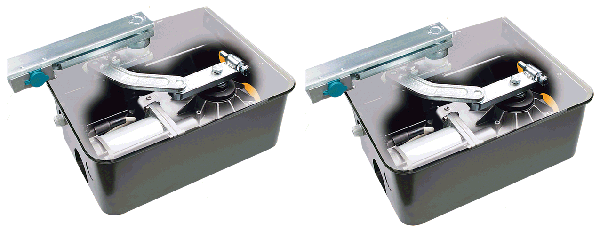

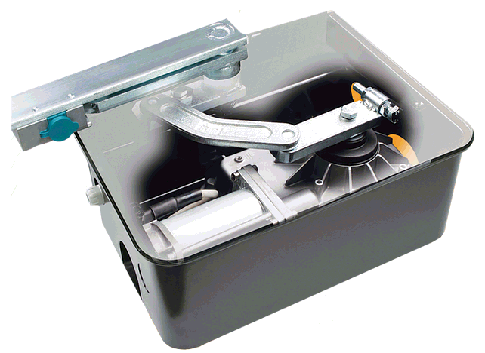

| Viking I-8 Underground Gate Operator CLASS I, CLASS II, CLASS III, CLASS IV VEHICULAR GATE OPERATOR |
| Viking I-8 Gate Openers / Gate Operators - The answer for an elegant solution for access control is fulfilled with the i-8 gate operator. The discreteness of the installation, the flexibility of operation, the efficiency of automation, and the adaptability of integration makes the i-8 gate operator a perfect solution in situations where aesthetics are required to satisfy the most exquisite taste |
| Viking I-8 Swing Gate Openers / Gate Operators Operation 24 VDC with 1/2 H.P. Motor Main Power Source 120 / 220 VAC Single Phase Battery 7 AmpHr 12 VDC x 2 Max Gate Weight 650 lbs. Max Gate Length 12 Feet Max Operating Speed 13-15 seconds per 90° Battery Backup Operation 400 Full Cycles (500 lbs. / 12' gate) Max Duty Cycle 100% (Continuous Cycles) Operating Temperature -4°F to +158°F |
| Viking I-8 Gate Operators - Swing Gate Openers - Some of the standard features include: 3 year residential and 2 year commercial warranty, UL 325 and 991 listing, a water resistant gear head unit, single stage, efficient gearing system, key for manual release, powerful and efficient DC motor in direct-drive configuration, aluminum, stainless steel and plated steel Internal parts, and built in battery backup capable of 400 cycles in case of power failure |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| L. A. Ornamental & Rack Corp 3708 NW 82nd Street Miami, Florida 33147 Office: 305-696-0419 Fax: 305-696-0419 |
