Viking G-5 Swing Gate Operator CLASS I, CLASS II, CLASS III, CLASS IV VEHICULAR GATE OPERATOR
Viking Access G5 Swing Gate Opener Battery Back
Viking G-5 Gate Openers / Swing Gate Operators -
With its compact, low profile design and the power to
support 700 lbs of weight along with gate lengths of
up to 16 feet, the Viking G-5 will revolutionize the
idea of gate operation. This operator is manufactured
with the highest quality components and is designed
to accent any gate style. The G-5 is capable of
continuous cycles operation at 24V DC, converted
directly from an AC line. The battery back-up provides
up to 400 cycles of operation with a maximum
capacity gate
Viking G-5 Gate Operators / Swing Gate Openers
Operation 24 VDC with 1/2 H.P. Motor
Main Power Source 120 / 220 VAC Single Phase
Battery 7 AmpHr 12 VDC x 2
Max Gate Weight 700 lbs.
Max Gate Length 16 Feet
Max Operating Speed 16-18 seconds per 90°
Battery Backup Operation 400 Full Cycles (600 lbs. /
12' gate)
Max Duty Cycle 100% (Continuous Cycles)
Operating Temperature -4°F to +158°F
Manuals  PDF
Specs  PDF
Viking G-5 Swing Gate Operators / Gate Openers - Some of the standard
features include: 3 year residential and 2 year commercial warranty, UL
325 and 991 listing, adjustable timer for automatic close, a high efficiency
power supply, a built in three push button station, a built in battery backup
capable of 400 cycles in case of power failure, on-board lightning
protection, and an easily accessed key release for manual operation
Viking Mechanical Swing Gate Opener G5
CLICK HERE TO PURCHASE OR VIEW COMPLETE SELECTION OF  VIKING
ACCESS GATE OPENERS AND ACCESSORIES
Custom Decorative Ornamental Wrought Iron and Aluminum Driveway Gates
Custom Decorative Ornamental Estate Metal Driveway Gates
Great Selection of Aluminum Driveway Gates, Modern designs all welded construction powder coat Oven Baked
We Custom make all of our driveway gates to your specs all installation hardware is included
Privacy Gates,Privacy Driveway Gates,Metal Backing,Wood Insert,Privay Panels
Garden Gates, Walk Thru Gates, Garden Walk Through Gates, Wrought Iron or Aluminum Iron Garden Walk Gates
All our Garden gates are custom made to match driveway gates and fencing complementing your home exterior design
Metal, Plexiglas, Krinkglas, Wood are use as Privacy panels backing with an array of color to choose from
Aluminum Picket Fence, Pool Fence, Security Pool Fence
Custom Fence Wrought Iron Fence Fencing Metal Design Steel Ornamental
Deck Railings, Iron Railings,Porch Railings,Balcony Railings,Hand Rails, Aluminum or Wrought Iron Metal Railings
We make Custom modern railings for Balconies,front porch,Decks, pool area all welded Aluminum
Gate Openers-Gate Operators, Top Brands,Power Master,Eagle,Elite,RamSet,DoorKing,OSCO,SEA
Ramset Gate Openers and Operators Swing Slide Residential Commercial and Industrial
We are pround to carry the FAAC Gate Opener line including parts and customer service 2nd to none
Apollo Gate openers the best Solar operators in the market, available in residential, commercial and industrial models, single swing,dual and slide
BFT all UL/CSA approved electromechanical and hydraulic operators, rack & pinion,kits, great openers at agreat price
Complete Power Master gate openers, operators available on line
Liftmaster gate opener,operators and barriers designed to meet your access control and security needs
Elite Gate Operators the leading provider of gate operators
Doorking also known as “DKS” manufacturers of telephone entry systems, vehicular gate operators, parking control products and access control systems in the US
OSCO Linear Gate Operators swing Slide Barriers Variable Speed Residential Commercial Industrial
Allstar Gate Openers part of Linear corp
Full line of Viking gate openers, operators and barriers, all Viking openers are equip with battery back up
Eagle Gate Openers Operators Residential Commercial swing slide
SEA an Italian line of gate openers, Rack & Pinion,chain,swing
Hysecurity when only the best will do, Hysecurity is the line of openers that you want
Control Boards, Main Circuit Boards, MotherBoards, Main Control Circuit Boards for Gate Operators
Remote Controls Multi-Code Linear Liftmaster Chamberlain Clicker Mini Transmitter Heddolf Skylink
Multi code remote controls available in visor style and key chain style, 1,2 and 4 buttons in 300 and 310 mhz
Transmitter Solution Gate Remote Control Garage Door Clicker
Linear Remote Controls, Delta 3,Mega Code,Block Code,310MHZ,318Mhz
Liftmaster Remote Controls we carry older models as well like 61lm,62lm,63lm,64lm,971lm,972lm,973lm,974lm and new item as well
Doorking remote control MicroClick,MicroPlus Block codes
Keystone Heddolf has one of the largest selection of frequency in the market including extended range remotes
BFT FAAC SEA are all italian brand with a European frequency 433Mhz and 418Mhz
Long Range Remote controls and receivers from several brands
Receivers from Linear, DoorKing, Multi-Code, Liftaster, Heddolf, Extended Range
Multi Code Linear Extensive line of Receiver for any access remote needs including long range
Doorking Receiver Microplus Microclick RF Control Access Control 8054 Series 8057 Series 8055 Series 8053-080 8056-080 8059-080 8060-061
Liftmaster Receiver 312HM 412HM 635LM 365LM Star450 Passport CPWR3 423LM TCR TCG
Keystone Heddolf Receiver 318Mhz 300Mhz Long Range ER294 M294 P294
Long Range Remote and Receivers from several brands
Phone entry system, Doorking, American access System, Linear, Elite, Select Engineered,Sentex
SES - Select Engineering System for your telephone access control residential or commercial application
AAS - American Access System telephone entry keypads card readers
Doorking Telephone Entry residential commercial keypad intercom for all you access control needs
Liftmaster TAC1 telephone entry and keypad WKP5LM  WKP250LM
Sentex Infinity L, Infinity S, Infinity M, Infinity B
Elite gate entry system EL25 EL2000 Dial Code Icon 26
Linear TelephoneEntry System AE100,AE500,AE1000,AE2000,RE1,RE2
IP Telephone entry Voice over internet anolog GSM Gate way Cell phone remote IP Video Gate Intercom Door phone entry
Keypads Wire Keypad Wireless Keypad Liftmaster American Access System AAS Doorking DK Multi-Code Hedolff
Loop Detectors, PhotoCell, Exit Devices, Emergency Entry Equipment
Safety loop EMX, BD Loop, Doorking, Preform, saw cut, pave over
Loop Detector Reno AE Loop Detector Diablo EDI EMX
Safety Photo Cell Infrared Reflector Vehicle Detector Safety Photo Beam
Gate Accessories - Roller Guides, Wheels, Hinges, Latches
Cantilever Gate wheels Gate Rollers Heavy Duty Gate Wheels Rolling Gate Wheels
Inverted V track gate wheels guide rollers Groove Wheels Slide Gate Hardware Galvanized Aluminum Track
J-Bolt Adjustible gate hinges spring pool hinges Heavy Duty driveway gate hinges
Gate Latch Pool gate latch double dead bolt lock lever passage lock pool safety lock
Gate Openers or Operators Parts - Replacement Parts
L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147
Office: 305-696-0419
Fax: 305-696-0419
Welcome to: GATESNFENCES.COM
Gate Openers made in the U.S.A.
A New Standard in the Access Control Industry: Viking Access, is
constantly pushing the boundaries of innovation in order to make our
customers lives more exciting, more fulfilling, and easier to manage.  with
advanced features, reliability,  Dedication and commitment in
manufacturing quality products moving technology forward introducing a
new era of Gate Automation has transformed the Industry. Viking Access
Systems
Viking Access F1Swing Gate Opener Commercial Operator Battery Back Up
Viking Access G5 Screw Residential light Commercial Swing Gate Opener Battery Back Up
Viking Access I8 Residential Underground Gate Opener Battery Back Up
Viking Access R6 Residential Swing Gate Opener Battery Back Up
Viking Access X9 Low Pull Swing Gate Opener Battery Back Up
Viking T-21 Swing Commercial Gate Opener, Commercial Operator
Viking Access H10 Sliding Opener Slide Heavy Duty Commercial Gate Operator Battery Back Up
Viking Access K2 Residential Slide Gate Opener Battery Back Up
Viking Access L3 Commercial Sliding Gate Opener Battery Back Up
Viking Access Q4 Super Heavy Duty Commercial High Traffic Gate Slide Gate Opener Battery Back Up
Viking Access B12 Traffic Barrier Control Gate Parking Lot Barrier
All Brand Vehicle Barrier Arms,Liftmaster Mega Arm,Doorking 1601,1602,1603,OSCO BGU,OSCO BGUS,OSCO BGUD,PowerMaster P1500,P5000,MBG,Viking B12,FAAC,FAAC 615,FAAC 620,Apollo BA12,SEA Vela,SEA Vela Industrial
Back To Main Viking Access Gate Operators Page
Viking Access G5 Single Screw Swing Gate Opener Residential Gate operator -- $995.00
Viking Access G5 Double Screw Swing Gate Opener Residential Gate operator -- $1,900.00
Viking Pre-Wired Control Box for G-5 or X-9 Swing Gate Operators -- $493.00
Viking Board , Viking DUPCB10 Circuit Board -- $335.00
Viking Board DUMSCB10 Circuit Board - Master Slave for G5 or X9 -- $395.00
Keypads & Telephone Entry Systems
Gate Operator Circuit Boards
Remote Controls
Loop Detectors & Safety Equipment
Receivers
About Us  |   Contact Us   |   Our Policies   |   FAQ   |   Manufactures   |   Links   |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp.  All rights reserved. No part of this site can be
reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written
consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street  Miami  Florida  33147, Office: 305-696-0419  Fax: 305-696-0461 E-Mail:
LAOrnamental@Aol.com
Viking G5 2nd Generation stronger better warranty Extended opening capacity
Viking is proud to announce the 2nd generation G5 swing gate operator.
A few of the great new features include:
  • 2000 pound gate capacity
  • Electronic Manual Release
  • Extended Lead Screw for 135 degrees of opening
  • Pre-wired for easy installation
  • Increased Warranty to 4 Year Residential / 3 Year Commercial
Viking Blue Technology:
Plug and Play connection for “Viking Blue” add-on products.
Viking Blue – Wireless Diagnostic Tool provides diagnostic information wirelessly within range of
the Control Board.

Lightening Protection:
Advanced lightning strike protection up 20,000 volts/10,000 Amps
On board surge protection monitoring

Protection:
Powder coating on aluminum alloy chassis provides long lasting protection against corrosion.

Manual Release:
Electronic switch for manual release allows for easy manual operation

Strength:
Strong and powerful design capable to handle up to 2000 lbs or 18’ long gates

Motor: 24 VDC ½ HP
Operating Speed 15-18 sec. per 90
Duty Cycle: 100%
Battery Backup: 400 Cycles
Power Source Options: 115V/230V AC single Phase
24V AC/DC
Operating Temp: -4 F to 158 F
Opening Angle: 135 degrees Max

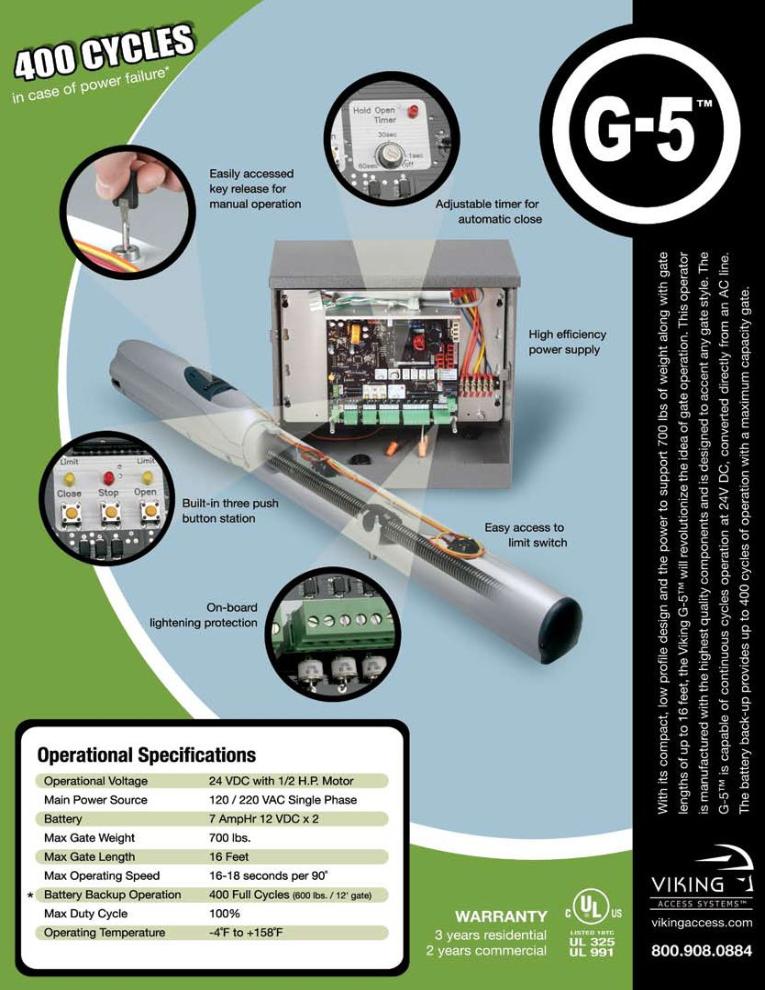

Viking 2nd Generation G5 Specs
