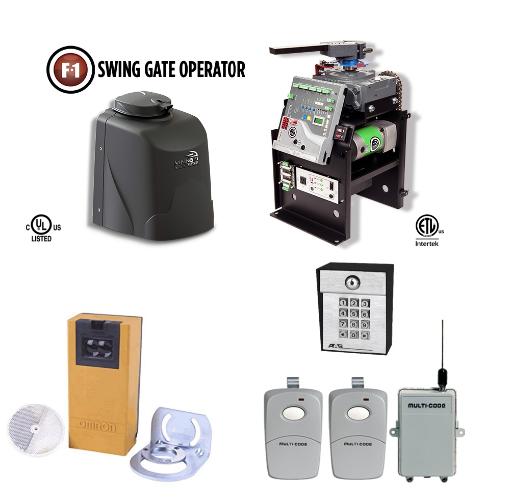

| Viking F-1 Gate Operator / Swing Gate Opener Operation 24 VDC with 1/2 H.P. Motor Main Power Source 120 / 220 VAC Single Phase Battery 7 AmpHr 12 VDC x 2 Max Gate Weight 1200 lbs. / 12' or 800 lbs. / 16' Max Operating Speed 13-16 seconds per 90° Battery Backup Operation 300 Full Cycles (600 lbs. / 12' gate) Max Duty Cycle 100% (Continuous Cycles) Operating Temperature -4°F to +158°F |
| Viking F-1 Gate Opener / Swing Gate Operator - The standard specifications and features of the F-1 swing gate operator showcase the commitment made in its concept and design. Whether it’s the simple, clean installation, energy efficient operation, or advanced battery backup function, this operator stands alone in it’s class |
| Viking F-1 Gate Operator / Swing Gate Opener - Some of the standard features include: 7 year residential and 5 year commercial warranty, UL 325 and 991 listing, fail-safe / fail-secure clutch mechanism, simple limit switch arrangement, clam shell cover design, 120/220 VAC single phase power source, built in three push button station, built in battery backup capable of 300 cycles in case of power failure, on-board lightning protection, and soft-start - soft-stop with intelligent obstruction detection. |
| gear head heater gate operator accessories Viking Gate Operators can operate in climates as low as -4F. However, when a Viking Gate Operator is required to operate in temperatures below 0F we recommend the use of a Viking Heater. The heater is a self adhesive blanket (with a thermostat integrated) that wraps around the motor-gear-head ensuring the proper viscosity on the lubricant inside the gear-head and ensuring the optimum gate operator operation. |
| gate operator accessories Viking Access Systems carries solar panels with high solar cell efficiency and outstanding energy output in low light conditions. The nominal voltage for the solar in series) is required for a 24VDC solar system such as Viking Gate Operators. Consult with Viking and we will advise about the number of cycles, the accessories recommended and the number of days of operation in case of cloudy days based on the installation location. |
| magnetic lock system gate operator accessories Viking Magnetic Lock provides the versatility to have added security in access control applications by operating at 12 VDC and 24 VDC. The holding force of 1300 LBS ensures the holding retention of the locking action when the electromagnet is energized. The special material used in the armature plate prevents excessive magnetic memory ensuring the prompt release of the locking action. |
| gate operator accessories The Viking Loop Rack adds added value to a Viking Gate Operator Installation by interfacing with up to three plug-in loop detectors and eliminating extra wiring or bulky normal size loop detectors. Troubleshooting and installation are simple, using only two connectors to have a complete installation with three loop detectors |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| L. A. Ornamental & Rack Corp 3708 NW 82nd Street Miami, Florida 33147 Office: 305-696-0419 Fax: 305-696-0419 |
