|Ramset Main Circuit Board Electronic Control Board Intelligent:
Ramet Intelligent Circuit Board features: Re-programmable microprocessor: Allows
control boards to be updated. LED diagnostics: LED (red lights) show the status of the
control board at all times. 3-Button station: Easy connection plug (included) for 3-button
stations. Status relays: Triggers relays when the gate is fully open or fully closed.
Plug-in loop detectors: Allows ILD-24 plug-in loop detectors (sold separately) to be
used, eliminating messy wire connections. The control board is powered by a 24VAC
transformer (sold separately). This allows no necessary board modifications between
110VAC and 220VAC single-phase applications.
|Ramset Intelligent control board works with all of Ramset slide, swing and overhead vehicular gate
operators. It is controlled by a programmable microprocessor that reads and precisely executes all
functions of the control board. The control board is powered by a separate mounted 24VAC
transformer. This allows no necessary board modifications between 110VAC and 220VAC single-phase
Ramset Intelligent Control Board features:
Reprogrammable Microprocessor: Allows control boards to be updated.
LED diagnostics: LED (red lights) show the status of the control board at all times.
3-Button Station: Easy connection plug (included) for 3-button stations.
Status Relays: Triggers relays when the gate is fully open or fully closed.
Plug-in Loop Detectors: Allows ILD-24 plug-in loop detectors (sold separately) to be used, eliminating
messy wire connections.
Ramset Intelligent Circuit Boards functions include:
Automatic Close Timer: Automatically closes the gate after 0 - 60 seconds after the gate fully opens and
all of the safety devices are cleared.
Pre Warning: Adds a 3 second delay before the gate moves in any direction. During this 3 second delay
the PREWARN relay maintains a closed contact. This allows an alarm or light to be connected to warn
when the gate is about to move.
Constant Warning: Triggers the PREWARN relay to maintain a closed contact while gate is in
motions. This allows an alarm or light to be connected to show when the gate is moving.
Secure Close: When power is lost, then regained, the control board checks the status of the gate. If the
gate is open and the safety devices are cleared, the gate will automatically close.
Radio Cycle: Allows the gate to be stopped at any time with the remote control. Then reverse with
One Pass: Closes the gate immediately after the safety devices are cleared. If another car triggers a
safety device the gate will stop but not open until a valid open signal is received.
Open & Close Delay: Adds a 1 second delay before the gate opens and/or closes.
Left/Right: With a flip of a switch, the logic of the control board changes from a left hand operation to a
right hand operation.
Master/Slave: Synchronizes two gates to work together in a bi-parting installation.
ERD (Electronic Reversing Devices): Automatically adjusts the sensitivity of the operator to the size of
|Find the Ramset Intelligent Board for all Ramset Gate Operators. Ramset Circuit Board is used on RAM 100
Gate Openers, RAM 1000 Gate Openers, RAM 5000 / 5100 / 5200 Gate Openers, RAM 5500 Gate Openers, RAM
30 Gate Operators, RAM 30-30 Gate Operators, RAM 300 Gate Operators, RAM 302 UL Gate Operators, RAM
3000 / 3100 / 3200 Gate Operators. If not sure or would like information or to check for availability please
|About Us | Contact Us | Our Policies | FAQ | Manufactures | Links |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form
or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com
|Ramset Old Style Control Board
Easy Replacement for you Ramset Gate Opener.
These boards are still available. Get them while they last.

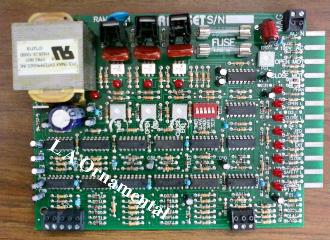

Ramset 12 Pin Control Board for Old Style Ramset Gate Openers
