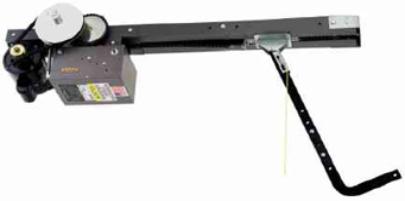

Model "T" Drawbar Operator

PowerMaster Model “T” operators are designed for use on Standard Lift Sectional Doors.

Supply PowerMaster Model “T” Drawbar Operator(s) RATED ____ HP, ____ VOLTS, ____ PHASE, for use on Standard Lift Sectional Doors. Primary reduction shall be by
heavy duty V-Belt Drive. Secondary reduction shall be a chain and sprocket arrangement. Motor shall be continuous duty industrial type protected from overload by a current
sensing or thermal type overload device.

Motor shall be of the high starting torque, continuous duty industrial type, protected from overload by a current sensing or thermal type overload device. Motor controller
shall be a heavy duty, full voltage, across the line, magnetic reversing contactor that is mechanically and electrically interlocked. Electrical components shall be installed in
a NEMA 1 enclosure integral to the operator.
A transformer shall be provided to reduce control voltage to 24 VAC. Separate terminal strips shall be provided for connection of power supply line and all control devices.
Operator shall be wired for an open/close/stop control station. Control circuit shall provide instant reverse motor wiring on 1Ø operators. Positive chain driven, rotary type
limit switches shall be provided to limit full open and
close travel of door. Limit switch adjustment shall not be affected by removal of motor or by manual operation of door.
Welcome to: GATESNFENCES.COM
L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147
Office: 305-696-0419
Fax: 305-696-0419
Keypads & Telephone Entry Systems
Gate Operator Circuit Boards
Remote Controls
Loop Detectors & Safety Equipment
Receivers
Custom Decorative Ornamental Wrought Iron and Aluminum Driveway Gates
Custom Decorative Ornamental Estate Metal Driveway Gates
Great Selection of Aluminum Driveway Gates, Modern designs all welded construction powder coat Oven Baked
We Custom make all of our driveway gates to your specs all installation hardware is included
Privacy Gates,Privacy Driveway Gates,Metal Backing,Wood Insert,Privay Panels
Garden Gates, Walk Thru Gates, Garden Walk Through Gates, Wrought Iron or Aluminum Iron Garden Walk Gates
All our Garden gates are custom made to match driveway gates and fencing complementing your home exterior design
Metal, Plexiglas, Krinkglas, Wood are use as Privacy panels backing with an array of color to choose from
Aluminum Picket Fence, Pool Fence, Security Pool Fence
Custom Fence Wrought Iron Fence Fencing Metal Design Steel Ornamental
Deck Railings, Iron Railings,Porch Railings,Balcony Railings,Hand Rails, Aluminum or Wrought Iron Metal Railings
We make Custom modern railings for Balconies,front porch,Decks, pool area all welded Aluminum
Gate Openers-Gate Operators, Top Brands,Power Master,Eagle,Elite,RamSet,DoorKing,OSCO,SEA
Ramset Gate Openers and Operators Swing Slide Residential Commercial and Industrial
We are pround to carry the FAAC Gate Opener line including parts and customer service 2nd to none
Apollo Gate openers the best Solar operators in the market, available in residential, commercial and industrial models, single swing,dual and slide
BFT all UL/CSA approved electromechanical and hydraulic operators, rack & pinion,kits, great openers at agreat price
Complete Power Master gate openers, operators available on line
Liftmaster gate opener,operators and barriers designed to meet your access control and security needs
Elite Gate Operators the leading provider of gate operators
Doorking also known as “DKS” manufacturers of telephone entry systems, vehicular gate operators, parking control products and access control systems in the US
OSCO Linear Gate Operators swing Slide Barriers Variable Speed Residential Commercial Industrial
Allstar Gate Openers part of Linear corp
Full line of Viking gate openers, operators and barriers, all Viking openers are equip with battery back up
Eagle Gate Openers Operators Residential Commercial swing slide
SEA an Italian line of gate openers, Rack & Pinion,chain,swing
Hysecurity when only the best will do, Hysecurity is the line of openers that you want
Control Boards, Main Circuit Boards, MotherBoards, Main Control Circuit Boards for Gate Operators
Remote Controls Multi-Code Linear Liftmaster Chamberlain Clicker Mini Transmitter Heddolf Skylink
Multi code remote controls available in visor style and key chain style, 1,2 and 4 buttons in 300 and 310 mhz
Transmitter Solution Gate Remote Control Garage Door Clicker
Linear Remote Controls, Delta 3,Mega Code,Block Code,310MHZ,318Mhz
Liftmaster Remote Controls we carry older models as well like 61lm,62lm,63lm,64lm,971lm,972lm,973lm,974lm and new item as well
Doorking remote control MicroClick,MicroPlus Block codes
Keystone Heddolf has one of the largest selection of frequency in the market including extended range remotes
BFT FAAC SEA are all italian brand with a European frequency 433Mhz and 418Mhz
Long Range Remote controls and receivers from several brands
Receivers from Linear, DoorKing, Multi-Code, Liftaster, Heddolf, Extended Range
Multi Code Linear Extensive line of Receiver for any access remote needs including long range
Doorking Receiver Microplus Microclick RF Control Access Control 8054 Series 8057 Series 8055 Series 8053-080 8056-080 8059-080 8060-061
Liftmaster Receiver 312HM 412HM 635LM 365LM Star450 Passport CPWR3 423LM TCR TCG
Keystone Heddolf Receiver 318Mhz 300Mhz Long Range ER294 M294 P294
Long Range Remote and Receivers from several brands
Phone entry system, Doorking, American access System, Linear, Elite, Select Engineered,Sentex
SES - Select Engineering System for your telephone access control residential or commercial application
AAS - American Access System telephone entry keypads card readers
Doorking Telephone Entry residential commercial keypad intercom for all you access control needs
Liftmaster TAC1 telephone entry and keypad WKP5LM  WKP250LM
Sentex Infinity L, Infinity S, Infinity M, Infinity B
Elite gate entry system EL25 EL2000 Dial Code Icon 26
Linear TelephoneEntry System AE100,AE500,AE1000,AE2000,RE1,RE2
IP Telephone entry Voice over internet anolog GSM Gate way Cell phone remote IP Video Gate Intercom Door phone entry
Keypads Wire Keypad Wireless Keypad Liftmaster American Access System AAS Doorking DK Multi-Code Hedolff
Loop Detectors, PhotoCell, Exit Devices, Emergency Entry Equipment
Safety loop EMX, BD Loop, Doorking, Preform, saw cut, pave over
Loop Detector Reno AE Loop Detector Diablo EDI EMX
Safety Photo Cell Infrared Reflector Vehicle Detector Safety Photo Beam
Gate Accessories - Roller Guides, Wheels, Hinges, Latches
Cantilever Gate wheels Gate Rollers Heavy Duty Gate Wheels Rolling Gate Wheels
Inverted V track gate wheels guide rollers Groove Wheels Slide Gate Hardware Galvanized Aluminum Track
J-Bolt Adjustible gate hinges spring pool hinges Heavy Duty driveway gate hinges
Gate Latch Pool gate latch double dead bolt lock lever passage lock pool safety lock
Gate Openers or Operators Parts - Replacement Parts
Power Master Gate Operators and Openers for Overhead Doors
PowerMaster Offers one of the larges Selection of Overhead Door Operators in the world.
Draw Bar Operator, Industrial Duty Hoist Operators, Lift Sectional Doors, Specialty Car Wash
operators, Jackshaft type, Primary and Secondary Reduction Gear, V-Belt Drive, Rolling
Service Doors, NEMA, in numerous horse powers and voltages available.
An adjustable torque limiting clutch shall be provided to prevent
overloading of the operator. A spring set solenoid released brake
shall be supplied on ¾ & 1HP units. A disconnect arm for manual
operation of the door shall be provided in case of power failure. The
final reduction and drive shall be heavy duty roller chain and
sprockets. The drive shaft shall be supported by oilite bearings and
be a minimum of ¾ In diameter.

Electrical Specifications:
•High Starting Torque Motor with Full Overload Protection
•Solid State Circuitry with Power and Program Feedback LED’s
•On Board Open/Close/Stop buttons for service and adjustments
•Terminals labeled and grouped by function
•Auto-Detect monitored photo beam for simplified installation
•Selectable Operating modes B2, C2, D1, E2, T, TS
•Field adjustable built in functions including: timer to close, mid-stop,
delay on reverse, lock bar sensing, maximum run time, etc.

Mechanical Specifications:
•For Use on Sectional Doors
•Heavy Duty V-Belt and Chain Reduction, Mechanically Self Locking
•Heavy Duty #65 Roller Chain Included
•Adjustable Torque Limiting Clutch
•Positive Chain Driven Rotary Limit Switches
•Drawbar Disconnect (For Manual Operation in case of power failure)
•Baked on Grey Powder Coat finish
Installation Manual
Spec Sheet
Wiring Diagrams 331-3
333-3
1331-3
1333-3
6501-1

Description Part Number Price
PowerMaster T-51, 1/2 HP, 115V, 1 Phase, Apartment House Drawbar Operator T-51 Our Price: $670.04
PowerMaster T-52, 1/2 HP, 208V /230V , 1 Phase, Apartment House Drawbar Operator T-52 Our Price: $670.04
PowerMaster T-53, 1/2 HP, 208V /230V , 3 Phase, Apartment House Drawbar Operator T-53 Our Price: $680.43
PowerMaster T-54, 1/2 HP, 460V , 3 Phase, Apartment House Drawbar Operator T-54 Our Price: $680.43
PowerMaster T-71, 3/4 HP, 115V, 1 Phase, Apartment House Drawbar Operator T-71 Our Price: $816.52
PowerMaster T-72, 3/4 HP, 208V /230V , 1 Phase, Apartment House Drawbar Operator T-72 Our Price: $816.52
PowerMaster T-73, 3/4 HP, 208V /230V , 3 Phase, Apartment House Drawbar Operator T-73 Our Price: $873.65
PowerMaster T-74, 3/4 HP, 460V , 3 Phase, Apartment House Drawbar Operator T-74 Our Price: $883.00
PowerMaster T-101, 1 HP, 115V, 1 Phase, Apartment House Drawbar Operator T-101 Our Price: $923.52
PowerMaster T-102, 1 HP, 208V /230V , 1 Phase, Apartment House Drawbar Operator T-102 Our Price: $943.25
PowerMaster T-103, 1 HP, 208V /230V , 3 Phase, Apartment House Drawbar Operator T-103 Our Price: $981.69
PowerMaster T-104, 1 HP, 460V , 3 Phase, Apartment House Drawbar Operator T-104 Our Price: $1,002.47
