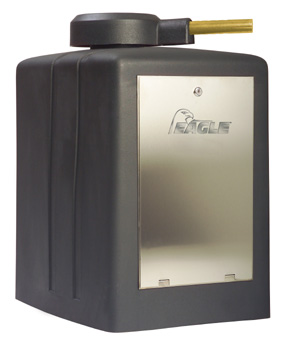

|Eagle 200 Series
This commercial Swing Gate Operator combines smooth and
queit operation with the power and durability necessary for all
commercial manufactured in the U.S.A with dedication to
Safety, precision performance, and highly durable
construction. Eagle Gate Openers use the latest Electronic to
provide you with the Safest and most efficient Gate Operators
for your money. The Eagle-200 Series Gate Openers are strong
and dependable Operators that are ideally suited for
commercial and industrial applications. There are 3 type of
Gate Openers to choose from in this series
EAGLE 200 1 motor 1/2hp EAGLE 200-1HP 2 motor
working simultaneously for super heavy Gates
EAGLE 200-DM -- 2 motor - one to open gate-one to close
Gate for heavy traffic
|Eagle 200-DM Gate Operators or Eagle 200 DM Gate Openers

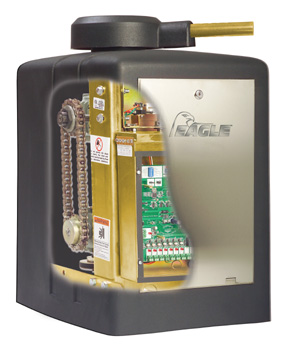

Diamond Control Board - The unique Diamond board uses state of the art technology combined with easy of use to provide many exceptional new
features that cannot be found on any other board.
2 Wire Maser/Slave - The Diamond board uses a unique Master/Slave system that requires only two wires.
Motor Brake - If the on position is selected, the gate will stop instantly when it reaches the limit switches. This is essential on uphill/downhill
applications and on all Fail Safe operations.
One Pass - This tailgating feature works with the reverse loop to allow only one car to pass. After the car passes the gate closes instantly, if a
second car approaches the gate stops, and resumes closing once the car has left.
Stop-Reverse - This radio feature allows the transmitter to work as a three-button station and is useful for partial opening. The first command
Timer - The adjustable timer can be set from 1 to 60 seconds, with a maximum run time of 60 seconds.
Overload - If the motor reaches the stall amp for 3 seconds, it will automatically shut down.
Receiver - The receiver terminal is mounted on the control box for easy installation and is pre-wired for a 3-wire or 4-wire receiver.
Stainless Steel Access Door - Offers full access to the control board through the locking stainless steel door.
ERD - If the gate hits an obstruction while closing, it will re-open. If it hits an obstruction while opening, it will stop, reverse 6 inches and stop
again. The sensitivity is adjustable separately for the open and close cycles.
Global Inputs - The Diamond board's Global Inputs include key switch, keypad, exit loop, phantom loop, reverse loop, edge sensor, open, stop, and
Outputs - Outputs include on board 24 VDC for MAG Lock, alarm, and 24 VAC auxiliary power.
Safety Alarm - If the gate hits an object twice while closing or opening, the system will shut down for 5 minutes. On the Diamond board you have
two options for reset mode. Selecting the off position will require a manual reset of the board if the previous happens. However, by selecting the
on position, the system will automatically reset itself.
120 VAC Power Outlets - The operator contains two 120 VAC Power Outlets for the users convenience.
Power on/off Switch - The operator has an easily accessible power disconnect switch that allows for easy installation and service.
No Pinch Arm - This safety features prohibits the arm from extending past the operator's body when the arm is in the fully extended position.
Gate Opening - Can operate to either the left or right side.
Warranty - Five Year warranty, extended to seven years if for residential use.

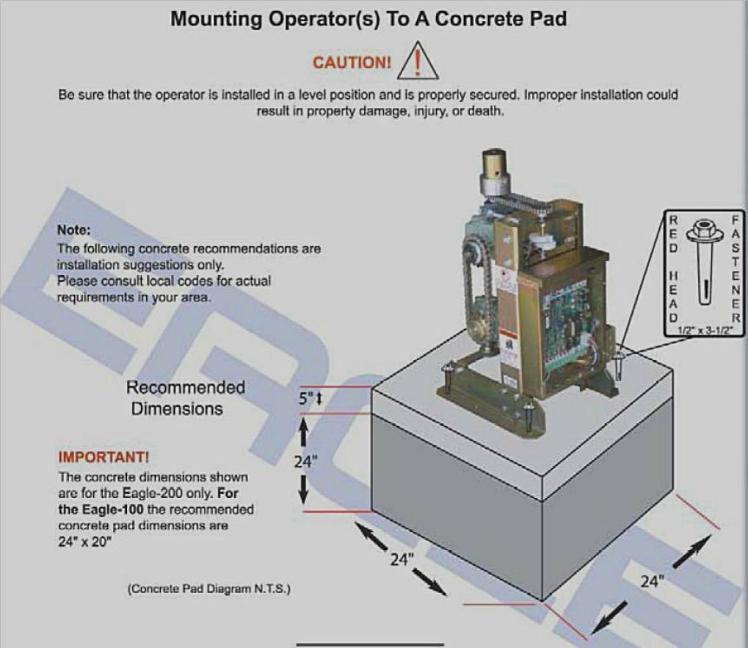

|Manual English For the Eagle 200
Series Commercial Gate Opener
|Every Eagle Operator ships with the new Diamond Control Board. This board has many unique and
advanced features, and they all come standard!
The Eagle-Power Series is a fully functional Battery Back-Up System for a reasonable price!
Standard Commercial Operator Features include:
2 Wire Master Slave connection system, you can even use non-shielded wire.
Two 120 VAC Power Outlets for the users convenience.
Heavy Duty Gearbox for efficiency and quiet running.
One Pass Tailgating feature for safety and security.
Stop-Reverse to enable your one button Transmitter to work as a 3 Push Button Station.
Adjustable Timeer with maximum close time of 60 seconds.
Outputs including 24VDC for MAG Lock, Alarm, and 24VAC auxiliary power.
Accessories can be connected to either the Master or Slave Operator.
Independently adjustable Open and Close Delay for Master Slave Systems.
Power On/Off Switch for easily accessible power disconnect to allow easy installation and service
|Specs: Cut Sheet for the 200
Commercial Eagle Gate Opener
