| Eagle 2000 1HP Gate Operators or Gate Openers 2 Wire Maser/Slave - The Diamond board uses a unique Master/Slave system that requires only two wires. One Pass - This tailgating feature works with the reverse loop to allow only one car to pass. After the car passes the gate closes instantly, if a second car approaches the gate stops, and resumes closing once the car has left. Stop-Reverse - This radio feature allows the transmitter to work as a three-button station and is useful for partial opening. The first command opens the gate, the second stops the gate, and the third command will close the gate. Timer - The adjustable timer can be set from 1 to 60 seconds, with a maximum run time of 60 seconds. Overload - If the motor reaches the stall amp for 3 seconds, it will automatically shut down. ERD - If the gate hits an obstruction while closing, it will re-open. If it hits an obstruction while opening, it will stop, reverse 6 inches and stop again. The sensitivity is adjustable separately for the open and close cycles. Global Inputs - The Diamond board's Global Inputs include key switch, keypad, exit loop, phantom loop, reverse loop, edge sensor, open, stop, and close. Outputs - Outputs include on board 24 VDC for MAG Lock, alarm, and 24 VAC auxiliary power. Receiver - The Receiver Terminal is mounted on the control box for easy installation and is pre-wired for a 3-wire or 4-wire receiver. Safety Alarm - If the gate hits an object twice while closing or opening, the system will shut down for 5 minutes. On the Diamond board you have two options for reset mode. Selecting the off position will require a manual reset of the board if the previous happens. However, by selecting the on position, the system will automatically reset itself. 120 VAC Power Outlets - The operator contains two 120 VAC Power Outlets for the users convenience. Power on/off Switch - The operator has an easily accessible power disconnect switch that allows for easy installation and service. Warranty - Five Year warranty, extended to seven years if for residential use. |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| The Eagle 2000-1HP Sliding Gate Openers The Eagle 2000 Series is a Premier Line of Heavy Duty Commercial Electric Sliding Gate Operators. The Eagle 2000 combine smooth and quiet operation with the power of durability necessary for all Commercial Electric Gate Operator application. This operators are manufacture in the USA, with dedication to safety, precision performance, and dependability, This Model can handle up to 45feet and 1,000 lbs.gates. This operator is the answer to Heavy Gates commercial demands. Its dual motors uniquely working together, as one motor. The 1HP model performs exceptionally at commercial properties and large gated communities. |
Manual English For the
Eagle 2000 Series Residential
Slide Gate Opener
Eagle 2000 Series Residential
Slide Gate Opener
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Manual Spanish For the
Eagle 2000 Series Commercial
Slide Gate Opener
Eagle 2000 Series Commercial
Slide Gate Opener

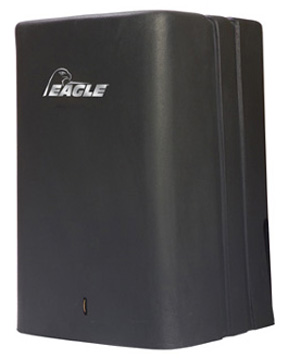

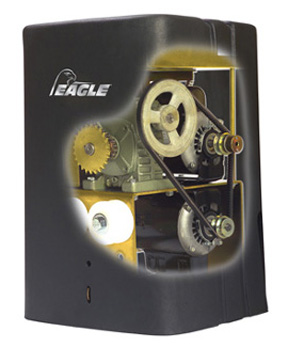

Eagle Gate Opener 2000 1Hp Heavy Duty Commercial Sliding Gate
Operator with 2 Motors For Heavy Gates
Operator with 2 Motors For Heavy Gates
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
Welcome to: GATESNFENCES.COM
| L. A. Ornamental & Rack Corp 3708 NW 82nd Street Miami, Florida 33147 Office: 305-696-0419 Fax: 305-696-0419 |
| Every Eagle Operator ships with the new Diamond Control Board. This board has many unique and advanced features, and they all come standard! The Eagle-Power Series is a fully functional Battery Back-Up System for a reasonable price! Standard Commercial Operator Features include: 2 Wire Master Slave connection system, you can even use non-shielded wire. Two 120 VAC Power Outlets for the users convenience. Heavy Duty Gearbox for efficiency and quiet running. One Pass Tailgating feature for safety and security. Stop-Reverse to enable your one button Transmitter to work as a 3 Push Button Station. Adjustable Timeer with maximum close time of 60 seconds. Outputs including 24VDC for MAG Lock, Alarm, and 24VAC auxiliary power. Accessories can be connected to either the Master or Slave Operator. Independently adjustable Open and Close Delay for Master Slave Systems. Power On/Off Switch for easily accessible power disconnect to allow easy installation and service |
Eagle Access Control Systems, Inc., manufacturer of the Eagle
brand of Gate Operators, Battery Back-up, Gate Hardware and
Access Control Accessories. Eagle Gate Operators are Rugged,
Durable and Installer-Friendly so your satisfaction is guaranteed.
They are safe, quiet and smooth
brand of Gate Operators, Battery Back-up, Gate Hardware and
Access Control Accessories. Eagle Gate Operators are Rugged,
Durable and Installer-Friendly so your satisfaction is guaranteed.
They are safe, quiet and smooth
Specs: Cut Sheet
|
