| Eagle 2000 Sliding Gate Operators or Eagle 2000 Slide Gate Openers Diamond Control Board - The unique Diamond board uses state of the art technology combined with easy of use to provide many exceptional new features that cannot be found on any other board. 2 Wire Maser/Slave - The Diamond board uses a unique Master/Slave system that requires only two wires. Motor Brake - If the on position is selected, the gate will stop instantly when it reaches the limit switches. This is essential on uphill/downhill applications and on all Fail Safe operations. One Pass - This tailgating feature works with the reverse loop to allow only one car to pass. After the car passes the gate closes instantly, if a second car approaches the gate stops, and resumes closing once the car has left. Stop-Reverse - This radio feature allows the transmitter to work as a three-button station and is useful for partial opening. The first command opens the gate, the second stops the gate, and the third command will close the gate. Timer - The adjustable timer can be set from 1 to 60 seconds, with a maximum run time of 60 seconds. Overload - If the motor reaches the stall amp for 3 seconds, it will automatically shut down. ERD - If the gate hits an obstruction while closing, it will re-open. If it hits an obstruction while opening, it will stop, reverse 6 inches and stop again. The sensitivity is adjustable separately for the open and close cycles. Global Inputs - The Diamond board's Global Inputs include key switch, keypad, exit loop, phantom loop, reverse loop, edge sensor, open, stop, and close. Outputs - Outputs include on board 24 VDC for MAG Lock, alarm, and 24 VAC auxiliary power. Receiver - The Receiver Terminal is mounted on the control box for easy installation and is pre-wired for a 3-wire or 4-wire receiver. Safety Alarm - If the gate hits an object twice while closing or opening, the system will shut down for 5 minutes. On the Diamond board you have two options for reset mode. Selecting the off position will require a manual reset of the board if the previous happens. However, by selecting the on position, the system will automatically reset itself. 120 VAC Power Outlets - The operator contains two 120 VAC Power Outlets for the users convenience. Power on/off Switch - The operator has an easily accessible power disconnect switch that allows for easy installation and service. Warranty - Five Year warranty, extended to seven years if for residential use. |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |

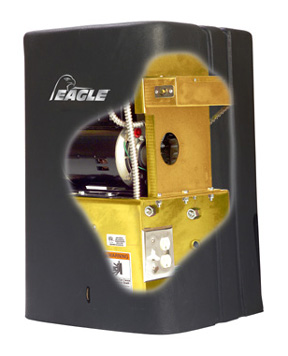

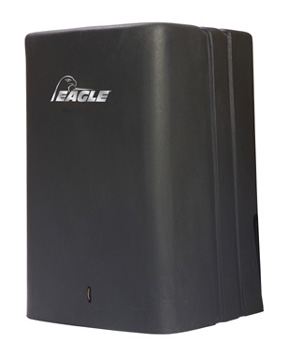

| The Eagle-2000 Sliding Gate Openers The Eagle-2000 series is the premiere line of commercial sliding gate operators for Eagle Access Controls. The Eagle-2000 combines smooth and quiet operation with the power and durability necessary for commercial applications. All of the models within this series are manufactured in the USA with dedication to safety, precision performance, and highly durable construction. Eagle Access Controls uses the latest in technology to provide you with the safest and most efficient operator for your money. There are two types Eagle-2000-FSF or FSC models. These operators use either the Fail Safe system (which in case of a power outrage allows you to easily push open the gate manually) or the Fail Secure system (which utilizes a supplied crank to open the gate in the event of a power failure). Both models are strong and dependable operators that are ideally suited for heavy-duty commercial and industrial applications. |
| Eagle 2000 Gate Openers - Eagle 2000 Series Sliding Gate Opener - Eagle Commercial Gate Operator - Automatic Gate Opener |
Manual English For the Eagle 2000
Series Commercial Slide Gate Opener
Series Commercial Slide Gate Opener
| Every Eagle Operator ships with the new Diamond Control Board. This board has many unique and advanced features, and they all come standard! The Eagle-Power Series is a fully functional Battery Back-Up System for a reasonable price! Standard Commercial Operator Features include: 2 Wire Master Slave connection system, you can even use non-shielded wire. Two 120 VAC Power Outlets for the users convenience. Heavy Duty Gearbox for efficiency and quiet running. One Pass Tailgating feature for safety and security. Stop-Reverse to enable your one button Transmitter to work as a 3 Push Button Station. Adjustable Timeer with maximum close time of 60 seconds. Outputs including 24VDC for MAG Lock, Alarm, and 24VAC auxiliary power. Accessories can be connected to either the Master or Slave Operator. Independently adjustable Open and Close Delay for Master Slave Systems. Power On/Off Switch for easily accessible power disconnect to allow easy installation and service |
Manual: Spanish For the Eagle 2000
Series Commercial Gate opener
Series Commercial Gate opener
Specs: Cut Sheet For Eagle 2000
