Doorking 1803 is an ideal telephone entry system that is suited for
applications that do not require a directory, or in applications where a
separate directory exists. Visitors are easily identified by voice
communication and can be granted or denied access directly from a
touch-tone telephone.
applications that do not require a directory, or in applications where a
separate directory exists. Visitors are easily identified by voice
communication and can be granted or denied access directly from a
touch-tone telephone.

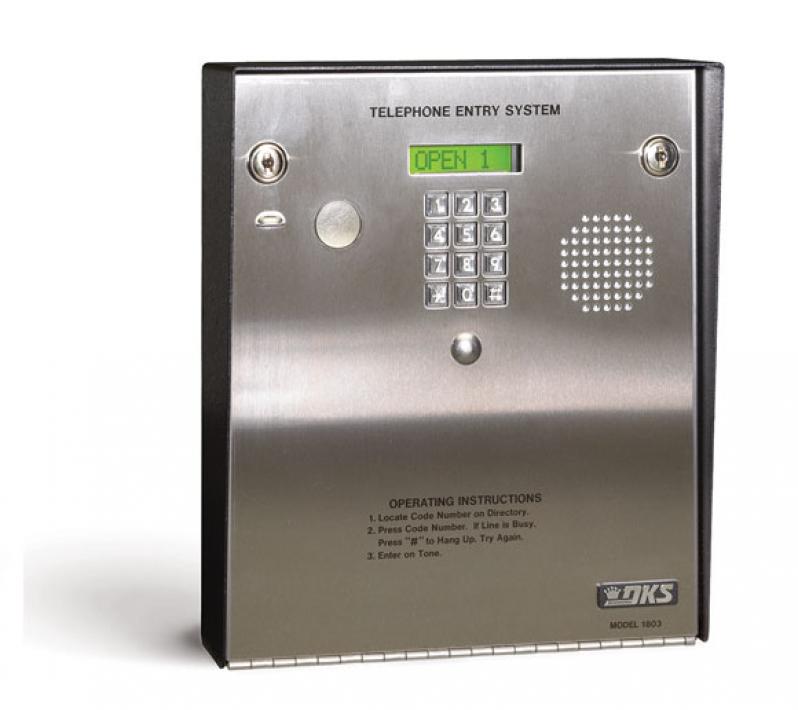

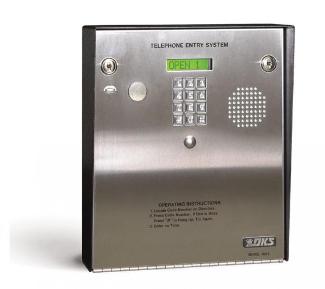

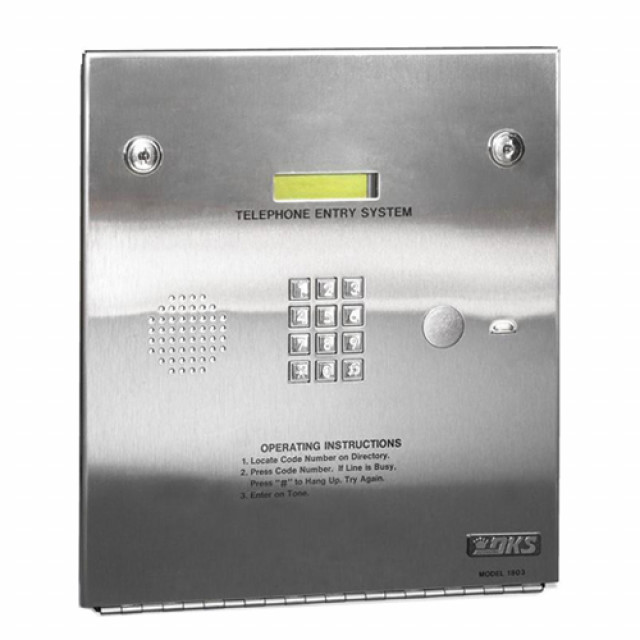

| DoorKing 1803 Telephone Entry The model 1803 is an ideal telephone entry system that is loaded with features and is suited for applications that do not require a directory or in applications where a separate directory exists. This unit is available in both surface and flush mount configurations. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone. The 1803 is available in two distinct styles: Surface or flush mount - specify which. Gold plated faceplate - Flush mount units only. |
| ADVANCED FEATURES Programmable directory codes (1-4 digits). 10 and 11-digit dialing capability. Two special inputs can be programmed for relay activation or to dial out a preprogrammed phone number. 5-digit entry codes for special needs. Built-in time clock. Hold open time zones. Entry code time zones. "Flash" entry codes. Programming display |
| SPECIFICATIONS Stores up to 1000 telephone numbers. EEPROM Memory. Full duplex commnication. 4-digit entry codes; same number as memory ordered. Six, 5-digit entry codes. 10 area codes. 16 VAC, 20 VA (250 ma) power transformer provided. Ringer equivalence: 0.0 A. Jack type: RJ11C or W. FCC (US): DUF6VT-12874-OT-0 DOC (CAN): 1736 4507 A Complies with UL 294; ETL Listed. Surface mount dimensions: 13"H x 11.25"W x 4.5"D. Flush mount dimensions: 13.25"H x 12"W x 3"D. |
| ACCESSORIES AVAILABLE FOR THIS MODEL ADA compliant handset. Back up battery. Heater kit (recommended when temperatures routinely fall below 10F / -12C). Mounting post. Fluorescent light kit. Add-on directory. Surge suppressors |
| FEATURES: * Provides visitor access control into apartment buildings, gated communities, condominiums, office buildings, factories and industrial sites * Visitors use the 1803 to communicate with a resident, who can then grant or deny them access from their touchtone telephone * Provides service for up to 1000 residents * Programmable directory codes can be set from 1 to 4 digits |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Accessories for 1803 Telephone Entry System |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
