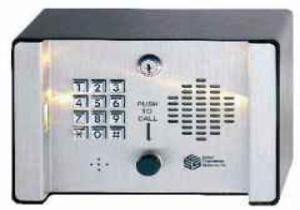

Standard Features:
• DSL filtering built-in. SG2M transparent to existing or
new DSL lines.
• 100 PIN Codes, each programmable by Time Zone and
function as well as making them valid by date or
permanent.
• 9 Programmable Time Zones.
• 26 Bit Wiegand input, for Card Reader, Receiver and
Slave Keypad.
• 100 Cards or Transmitters, for access without using the
keypad each programmable by time zone as well as
making them valid by date or permanent.
• Large Event Log Buffer (approx. 800).
• Calls 10 additional numbers.
• Call Forward by Time Zone.
• Works on the existing phone line.
• Long life white LED lighting.
• Low power consumption for solar powered applications.
• Local call waiting and transfer.
• Built-in modem for programming.
• Programmable by keypad or touch tone phone.
• Latch the gate (entrance) open from the keypad or
remotely with a phone.
(Timed, 1 hour or indefinitely.)
SG2C
• SG2C is shipped with a 2400 baud modem
with programming software available.
• ALL SG2C functions match the SG2.
• User can program cards or PINs to expire
by date.
|
SES SG2M Options:
• Camera, Color or Black and White.
• Wiegand input HID card reader.
• Select Pass Transmitters / Receivers.
• Long Range Proximity Cards and Reader.
• Wiegand input slave keypad for Exit or
Second Entrance.
• Pedestals.
• Special Metal Finishes.
• Flush mount sleeve for masonry or concrete
(option installed at factory only).
Applications for Use:
• Residential with or without a pedestrian gate.
• Small Gated Community with less than 10 homes. Card
access used for residents.
• Retirement homes / Convalescent homes. Visitors call
supervisor’s desk. Card acess used for employees.
Optional camera shows the visitor.
• Hospitals: Visitors use Push to Call to place call to
security. Card access used for Doctors.
• Office buildings: Push to Call used by visitors to call
receptionist. Employees use card access
for entrance. Optional camera shows visitor.
• Small Businesses, Freight Entrances:
Push to Call used by visitors to call receptionist.
Employees use card access for entrance.
Optional camera shows visitor.
|
Access Control Features:
• 26 Bit Wiegand device input.
• 100 PIN Codes, that can be used for visitors / deliveries
and timed by start and end date (364 days out).
Also programmable by time zone and function.
• 100 Cards or Transmitters, that can be used for visitors
or deliveries and timed by start and end date (364 days
out). Also programmable by time zone and function.
• 9 Programmable Time Zones.
• Local and remote Latching (opening) of the
Entrance (for 1 hour, or indefinitely).
• “Do Not Disturb” (through time zones).
• 10 Additional Telephone numbers can be
programmed, and called using the keypad.
• LED long life lighting.
• Programmable Unlock time.
• Programmable Talk time.
• Local call waiting and transfer.
• Uses the existing phone line.
• Transparent to existing or new DSL service.
• 2 Form C relays standard.
• Postal lock input available (REX).
• Multi-level surge suppression.
• Weather resistant housing.
• Battery charging output.
• Open keypad programmable for voice mail
|
Unit Specifications:
• Mounting dimensions:
7” H x 9 7/16” W x 4 9/16” D
• Construction:
Back box: .090 aluminum, primed and
painted black texture for exterior use.
Front door brushed stainless steel.
• Power Input:
16 VAC 20 VA plug-in transformer
supplied or 12VDC @ 120ma (nominal).
• Telephone Interconnect:
RJ31X jack supplied.
• Operating Environment:
Temperature –20 F to +140 F, Relative
Humidity 5% to 95% non-condensing.
• Relay Output (2):
Form C dry contact, 24 V @ 3 AMPS.
• Mounting: Surface, Recessed or Pedestal.
• Memory Type: non-volatile.
• Tone Detection:
Crystal controlled capable of detecting short burst 50 MS.
DTMF tone, (detects touch-tones only).
• Shipping Weight: Approx. 9 lbs.
|
|
