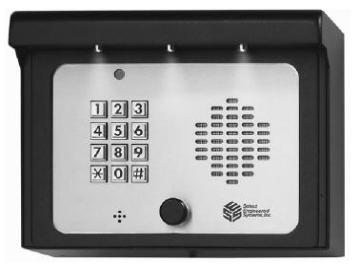

SG3DMR Standard Features:
• Voice messages for visitor convenience.
• RF Receiver for entrance control built-in.
• 26 Bit Wiegand input, for card reader, RF receiver and
Slave Keypad.
• Supports 100 cards or transmitters, for access without
using the keypad - each programmable by time zone and
function as well as making them valid by date or permanent.
• 100 PIN codes, each programmable by time zone and
function as well as making them valid by date or permanent.
• Voice message for entrance activation.
• 9 Programmable time zones.
• “Do Not Disturb” (through time zones).
• Call Forwarding programmable by time zone.
• 10 additional telephone numbers can be programmed, and
called using the keypad.
• Works on the existing phone line.
• Programmable by keypad, Touch-ToneTM phone or modem.
• Latch entrances (gates) open from the keypad or remotely
with a phone: Timed 1-99 seconds, 1 hour or indefinitely.
• Close entrances (gates) from the keypad or remotely with a
phone.
|
Modem Features:
• SG3DMR systems are shipped with a 2400 baud modem and
software.
• Separate dial-up line not needed.
Options Available:
• Select Pass transmitters and/or HID cards - 100 total.
• Wiegand Input HID card reader.
• Long Range proximity cards and reader.
• Wiegand input Slave Keypad for exit or second entrance.
• 36”, 42” or 48” Pedestals.
• Internal Camera, Color or Black and White with analog coax
output. Transformer supplied.
|
Access Control Features:
• Built-in RF 26 Bit Wiegand device input.
• Voice message assist in programming mode.
• Voice feedback on invalid key entries.
• Voice message when house line busy.
• Ability to work with a PBX system.
• 100 Cards or Transmitters, that can be used for visitors or
deliveries and timed by start and end date (364 days out).
Also programmable by time zone and function.
• 100 PIN Codes, that can be used for visitors / deliveries and
timed by start and end date (364 days out). Also
programmable by time zone and function.
• Local and remote latching (opening) of the entrances from
1- 99 seconds, 1 hour, or indefinitely.
• Programmable unlock time.
• Programmable talk time.
• Local call waiting and transfer.
• Large Event Log Buffer (approx. 800).
• LED long life lighting.
• 2 Form C relays standard.
• Postal lock inputs available (REX).
• Multi-level surge suppression.
• Weather resistant housing.
• Battery charging output.
• Open keypad programmable for voice mail.
• Select Gate Software Package provided with SG3DMR for
remote programming and retrieving the event log buffer.
|
Specifications:
• Mounting dimensions:
SG3DMR 7” H x10” W x 6” D
• Construction:
Back box: .090 aluminum, primed and
painted black texture for exterior use.
• Power Input:
16.5 VAC 20 VA plug-in transformer
supplied or 12VDC @ 120 ma (nominal).
• Telephone Interconnect:
RJ31X jack supplied.
• Operating Environment:
Temperature –20 F to +140 F, Relative
Humidity 5% to 95% non-condensing.
• Relay Output (2):
Form C dry contact, 24 V @ 3 AMPS.
• Mounting: Surface or Pedestal.
• Memory Type: non-volatile.
• Tone Detection:
Crystal controlled capable of detecting
short burst 50 MS. DTMF tone,
(detects touch-tones only).
• Shipping Weight: Approx. 9 lbs.
|
Applications:
• Residential with or without a pedestrian gate.
• Small gated community with 10 homes or less. Card access
used for residents.
• Retirement homes / Convalescent homes. Visitors use Push
to Call to supervisors
desk. Card access used for employees. Optional camera
shows the visitor.
• Hospitals: Visitors use Push to Call to place call to Security.
Card access used for Doctors.
• Office buildings: Push to Call used by visitors to call
receptionist. Employees use card access
for entrance. Optional camera shows visitor.
• Small Factories or Companies: (Push to Call used by visitors
to call receptionist). Employees use card access for
entrance. Optional camera shows visitor.
|
Options for Access Control:
• Wiegand Input HID Card Reader.
• Select Pass Transmitters / Receivers.
• Long Range Proximity Cards and Reader.
• Wiegand Input Slave Keypad.
• Pedestals - 36”, 42” or 48”.
• Special Metal Finishes.
• Camera, internal Color or Black and White.
• Battery Back-up.
• Serial Programming Module (OPTSGSER)
|
