SEA Gate Openers 1600 Compact Swing Gate Opener Hydraulic Operator
About SEA Technology, Quality, Reliability, and Service.
In almost more then ten years SEA has become a leader in the doors and gates automations field as a new reality provided of a vanguard system of production realized in an establishment which develops on over 11.000 sq. meters area. The winning strategy which has allowed to satisfy and create a link with customersof over 50 countries is the high flexibility warranted by a unique production system realized inside the establishment. The raw material bought by SEA company is manufactured following all the productive process phases and become a finished product after having passed a whole series of progressive controls.
|

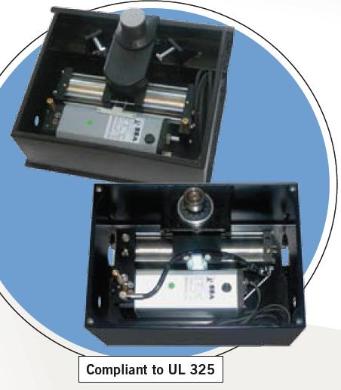

Compact 1600 for leaf up to 13 feet and max weight 1760 Pounds Strong, Silent & Discrete The Compact 1600 is a one-piece unit consisting of a hydraulic pump unit close coupled to the underground gate actuator. The drive assembly fits into a purpose made gate support box. The pump unit casing contains the electric motor, fluid pump, distributor and hydraulic oil. The hydraulic fluid acts as both the motive force and as a coolant for the motor, setting valve for pressure regulation, brake in opening and closing. Gates can be securely locked in the opened and closed position using the operators internal hydraulic system. Manual Release: In case of a power failure: The operator’s internal hydraulic locking can be released using a special key and the gate used manually until power is restored.
|
We sell SEA sliding automatic gate openers which are of the highest quality, and durability that's superior to mechanical gate openers. SEA offers a wide range of sliding automatic gate openers models for every application. All SEA electric gate openers have the UL 325 listing. SEA manufactures all internal working parts at their factory to maintain the highest quality control. These are not just the usual assembled electric gate openers with parts from the cheapest source- They are built with quality from the ground up.
|
Description:
- Swing Gates with in-ground operator Strong, Silent & Discrete
- The Compact 1600 is a one-piece unit consisting of a hydraulic pump unit close coupled to the underground gate
actuator.
- The drive assembly fits into a purpose made gate support box.
- The pump unit casing contains the electric motor, fluid pump, distributer and hydraulic oil.
- The hydraulic fluid acts as both the motive force and as a coolant for the motor, setting valve for pressure regulation,
brake in opening and closing.
- Gates can be securely locked in the opened and closed position using the operators internal hydraulic system.
- Manual Release In case of a power failure, The operator’s internal hydraulic locking can be released using a special
key and the gate used manually until power is restored.
- Managing of 1 motor 110V
- Automatic Logic (4 modality), semi-automatic, step by step
- Slow - down in opening and closing
- Motor Torque regulation
- Self - Learning of the operating time Photocell Auto-Test
- Auto - Diagnosis
- ENCODER Management
- LED diagnosis on all Inputs & Outputs
- Removable plugs for connections
- Built-in Receiver compatible with transmitters series SMART, HEAD ROLL and HEAD ECOPY Managing of 2 motors 110V
- Automatic Logic (4 modality), semi-automatic, step by step
- Slow - down in opening and closing
- Motor Torque regulation
- Self - Learning of the operating time
- Photocell Auto-Test
- Auto - Diagnosis
- ENCODER Management
- Electric-lock management
- LED diagnosis on all Inputs & Outputs
- Removable plugs for connections
- DISPLAY Optional
- LCD display alpha-numeric 2 rows 16 letters
- Setting and Adjusting of the operating time, pause time
- Diagnosis Functions Fault memorizing and last 10 events
- Customizing of the operating logics
- Built-in Receiver compatible with transmitters-series SMART
|

I'm PayPal Verified
About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com
|
Welcome to: GATESNFENCES.COM
L. A. Ornamental & Rack Corp 3708 NW 82nd Street Miami, Florida 33147 Office: 305-696-0419 Fax: 305-696-0419
|
SEA Opening Electronic Systems Technology, Quality, Reliability, and Service.
In almost more then ten years SEA has become a leader in the doors and gates
automations field as a new reality provided of a vanguard system of production
realized in an establishment . Swing Gates, Slide Gates, Sectional Doors, Folding
Gates, Counter Balancing Garage Doors, Rolling Shutter Doors, Glass Doors, Barrier
Gates, Accessories and Control Units
- The Silence and Reliability of hydraulic operator is oncer pass
- Residential In-ground Hydraulic Operator for leaf up to 6 feet and 400 pounds (up to 13 feet and 1600 pounds use
COMPACT 1600).
- COMPACT version with hydraulic jack and oil tank in the carrying box.
- SEA Total Quality: All parts are manufactured and tested IN-HOUSE.
- The hydraulic system grants high and long term performances.
|
SEA Compact 1600 NEW Style -- $1391.00
|
|
|
SEA Compact 1600 Single - Left Brake -- $1,315.00
|
|
|
SEA Compact 1600 Single - Right Brake - $1,315.00
|
|
|
SEA Compact 1600 Kit Single - $1,702.25
|
|
|
SEA Compact 1600 Kit Single - Pre-Wired - $2,117.50
|
|
|
SEA Compact 1600 Double - $2,333.00
|
|
|
SEA Compact 1600 Kit Double - $2,967.25
|
|
|
SEA Compact 1600 Kit Double - Pre-Wired - $3,355.00
|
|
|
SEA Compact 1600 NEW Style - Carrying Box - $247.50
|
|
|
| |
|
|
