| Technology, Quality, Reliability, and Service. In almost more then ten years SEA has become a leader in the doors and gates automations field as a new reality provided of a vanguard system of production realized in an establishment which develops on over 11.000 sq. meters area. The winning strategy which has allowed to satisfy and create a link with customersof over 50 countries is the high flexibility warranted by a unique production system realized inside the establishment. The raw material bought by SEA company is manufactured following all the productive process phases and become a finished product after having passed a whole series of progressive controls. |
| Description Oil-bath motor-reducer for industrial use for sliding gates Max weight 1800 kgs. SEA TOTAL QUALITY: All main parts are manufactured and tested in-house. The motor and all the parts are oil-bath for a long time lasting. Die-cast pressure aluminium body. Strong, galvanized sheet iron cover, painted with polyester for heavy industrial uses. Access door to the manual release with key for high safety. Mechanical and electronic oil-bath twodisc clutch for a double anti-crushing safety. Encoder (obstacles detector) included for a high anti-crushing safety. External release through box (optional). GATE 1 control unit to provide all the working needs (LEPUS 1800), without unit (LEPUS 2000 Three-phase). Mechanical high quality IP65 limit switch with lever contained inside a metallic box. |

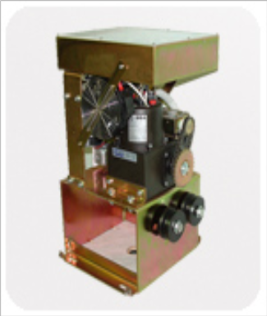

SEA - SLIDE GATE OPERATOR -
LEPUS 1800 CHAIN DRIVE
COMMERCIAL SLIDING MOTOR FOR GATES UP TO 1200 POUNDS OF
WEIGHT applies to this opener, Sliding motor for heavy duty
application. Two versions available for gates of 1200 pounds of
weight and 3600 pounds of weight.
Electric motor and reduction gear are constantly immersed in
hydraulic fluid granting high and long term performances.
Idler Sprockets with ball bearings for long term performances.
Electric fan for the motor cooling .
Mechanical and electronic clutch as a double anti-crush safety
system.
ENCODER (reversing sensor in case of obstacle).
Stainless Steel Emergency front door to access the EASY lever
manual release.
On Request Control Board GATE 2 PLUS for Master-Slave operating.
Battery Back-up available on request.
Extra external release available on request .
LEPUS 1800 CHAIN DRIVE
COMMERCIAL SLIDING MOTOR FOR GATES UP TO 1200 POUNDS OF
WEIGHT applies to this opener, Sliding motor for heavy duty
application. Two versions available for gates of 1200 pounds of
weight and 3600 pounds of weight.
Electric motor and reduction gear are constantly immersed in
hydraulic fluid granting high and long term performances.
Idler Sprockets with ball bearings for long term performances.
Electric fan for the motor cooling .
Mechanical and electronic clutch as a double anti-crush safety
system.
ENCODER (reversing sensor in case of obstacle).
Stainless Steel Emergency front door to access the EASY lever
manual release.
On Request Control Board GATE 2 PLUS for Master-Slave operating.
Battery Back-up available on request.
Extra external release available on request .
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
