| Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can download PDF File EAGLE Parts 2000 |
| EAGLE Replacement Parts for your EAGLE Operator - We Offer EAGLE Factory Direct replacement parts and New Products for EAGLE Systems, Gate Openers, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
Welcome to: GATESNFENCES.COM

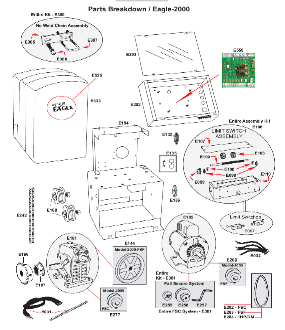

| Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Slide Gate Operator Click Here for Replacement Parts Quote Form on all Inquiries |
| Part Description For Eagle 2000 Swing Number Gate Operator E222 Operator Cover E223 Operator Cover Door Frame E224 Operator Cover Door E225 Release Cover E226 Release Cover Cap E227 Main Swing Arm E101 Limit Switch (LS) Assembly (Complete) E102 Limit Switch Bracket E103 Limit Switches E191 Control Board Box E555 Diamond Control Board E130 Electrical Outlet E131 Power Switch E190 Eagle-200 Chassis E192A Right Chassis Leg E192B Left Chassis Leg E193 Leg Bracket E185 1/2 HP Motor E180 Primary Gear Reducer (PGR) E186 Secondary Gear Reducer (SGR) E150 (PGR) Sprocket E153 (SGR) Sprocket E152 Clutch Kit (CK) Complete E901 Main Bushing E902 Metal Disk |
| Part Description For Eagle 2000 Swing Number Gate Operator E903 Fiber Disk (Clutch) E904 Spacer E905 Sprocket E906 Fiber Disk (Clutch) E907 Metal Disk E908 Spring Washer E909 Nut E146 (SGR) Pulley E147 Motor Pulley E173 1/2HP V-Belt E174 1HP/DM V-Belt E161 Drive Chain (Side) E151 Drive Chain (Top) E160 Arm Hub E162 Shaft E170 Sprocket Collar E171 Collar Washer E175 Limit Switch Activators E176 Shaft Key E525 Plastic Eagle Logo E555 Swivel Arm Assembly (SAA) Complete E471 Large Arm E472 Small Arm E473 Arm Attachment Plate E475 Extension Arm E476 Weld Plate |
|
