|Elite SL3000UL™ Models Exceeding expectations for high-traffic applications
The SL3000UL™ models of slide gate operators are the first choice for heavy-traffic applications and high-demand customers
including large development and management companies, prestigious residential gated communities and custom home builders.
Featuring the highest quality components and backed by years of proven reliability, each unit is carefully inspected and
mechanically tested to provide unsurpassed performance. Unique engineering innovations ensure that any SL3000UL™ models
will meet the needs of almost every type of high-traffic gated entrance. All backed by the safety and reliability of the most
advanced control board in the industry.
Elite SL3000 Electrical Specifications
MODULAR BOARD - Uses LEDs to indicate all input and output functions of the gate operator.
ERD - If the gate hits a vehicle while closing, it re-opens. If it hits a vehicle while opening, it stops, reverses 4 to 6 inches and
DIGITAL MOTOR PROTECTION - Entrapment sensor shuts off the motor after it reaches the stall amp for 3 seconds, reverses
direction for several inches and stops.
ELECTRONIC INPUTS - Radio receiver, key switch, safety loop, exit loop, telephone entry system, computer input, fire dept. key
switch and 3 push button station.
ELECTRONIC MOTOR DISCONNECT - Prevents activation of the motor while under manual operation. Meets latest UL325 rev.
TIMER - Adjustable timer can be set from 0 to 60 seconds.
POWER INPUT ON/OFF SWITCH - Controls power input to the board with convenient switch.
POWER MANAGEMENT - Board includes electronic power management with over-current shutdown and automatic recovery.
MAGNETIC LOCK - With Omni Option board, magnetic lock system is incorporated, allowing you to easily add the (MG1300™)
electromagnetic locking system to the gate.
BURGLAR ALARM - With Omni Option board, interfaces with existing home alarm or alarm output.
3 PUSH BUTTON CONTROL - On-board gate operator control for close, stop and open.
INTELLIGENT MASTER/SECOND - Precise, synchronized movement and communication between two gate operators using 3-
wire RS485 bi-directional technology.
SURGE SUPPRESSOR - 20,000 amps and near lightning protection with modular Omni surge suppressor. Initial response time:
ALTERNATE OUTPUTS - With Omni Option board 3 push button command control, burglar alarm input and output. QCC option
GATE TRAVELING TIME - Adjusted by a precision mechanical device and electrical limit switch system.
SOFT STOP - Gate travels through the cycle at normal speed and comes to a stop slowly for more accurate gate cycle.
Equipped with integrated time delay for long mechanical life expectancy.
INTEGRATED LOOP DETECTORS - Easy to install, modular, plug-in loop detector inputs for exit loop and safety loop.
120V AC POWER - Built-in 120V AC power receptacle (NEMA 5-15).
MOTOR DRIVE - Solid-state electronic motor drive system is incorporated into board.
RADIO RECEIVER - Includes a built-in 412HM radio receiver for use with DIP switch, billion code and Security+® remote
controls. Allows for one LiftMaster® remote control to conveniently open the gate and additional access points
ALARM - Activates anytime the moving gate is physically stopped by an obstruction
Surge / Lighting Protection - Elite™ commercial gate operators are protected against lightning strike within a 50-foot radius
of near lightning strike. This ability to handle high power and the fast response capability are accomplished by the use of a two-
stage hybrid network of surge suppressors integrated in the terminal block.
Reversing Sensor - Instant reversing gate motor(s) uses high-speed ball bearings for a smooth and quiet operation. If the
gate is closing and hits a vehicle, the sensor detects the increased load on the motor and reverses. If the gate is opening and
hits a vehicle, it stops and reverses.
Alarm Reset Button - The alarm reset button will instantly reset the built-in safety alarm siren on all new OmniControl™
operators, allowing normal function without waiting for the alarm status to time out.

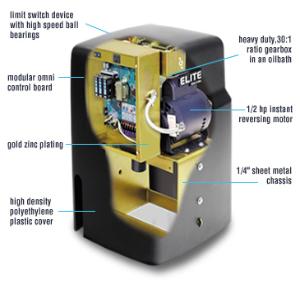

Elite SL3000 Mechanical Specifications
CHASSIS Constructed with 1/4" sanded, welded and gold zinc-plated sheet metal.
WORMGEAR & REDUCTION Two 30-to-1 wormgear reduction in an oil bath.
COVER High-density polyethylene plastic for excellent heat and corrosion resistance.
FINISHING All metal parts are gold zinc-plated for rustproof protection.
EMERGENCY RELEASE Hand crank is standard. Best option is our DC2000™.
OUTPUT SHAFT 1" cold rolled steel.
GATE TRAVELING SPEED 12" per second average
MOTOR 1/2 HP, instant reversing, 120V AC, 4 amp, 1,625 rpm, high-speed ball bearings.
CYCLES Capable of continuous cycles.
CAPABILITIES Maximum gate length 37'. Maximum gate weight 1,000 lbs.
|Elite SL3000UL High-traffic commercial slide gate operator
The Elite SL3000UL is recommended for high-traffic applications such
as gated communities and commercial buildings. Designed for smooth,
exceptionally quiet performance, the unit can handle continuous
operation with gates weighing up to 1,000 lbs. and up to 37 ft. in length
with a traveling speed of 12 inches per second.
