|Elite CSW200 1HP Swing Gate Openers | Elite CSW200 or CSW200UL 1HP Electric
Commercial Automatic Operators | Elite CSW200 1HP Swing Heavy Duty Opener
|Elite CSW200UL 1HP Swing Gate Operators / Openers

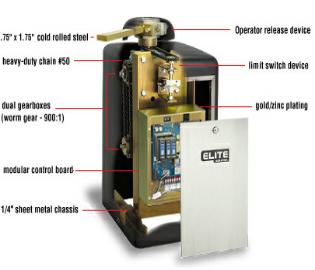

Heavy-duty, one-horsepower commercial swing gate operator. The CSW200UL
1HP is our most powerful swing gate operator. Equipped with two 1⁄2 HP motors
and a heavy-duty, 900:1 double transmission, it is the perfect choice for large,
heavy wrought-iron gates. With 250 lbs. of pulling torque, the unit is capable of
60 cycles per hour on gates weighing up to 1,000 lbs. and up to 20 ft. in length.
|CLICK HERE TO PURCHASE THIS ITEM OR FOR COMPLETE PRICE PAGE FOR ELITE
GATE OPENERS PRODUCTS
|Built for high-traffic. Engineered for safety.
Elite CSW200UL™ models of swing gate operators are the first choice for heavy-traffic applications such as large gated
communities, residential developments, commercial complexes and private estates. Unlike other systems, the CSW gate
operators are designed with a “non-scissor action” swing arm to greatly reduce the risk of injury. And all models include the
safety and reliability of our OmniControl™ board, the most advanced control board in the industry. Featuring the highest
quality components and backed by years of proven dependability, each unit is carefully inspected and mechanically tested
to provide unsurpassed reliability. Unique engineering innovations in each model also ensure that there’s a CSW to meet
practically every swing gate application.
Elite CSW200 1HP or CSW200UL 1HP Mechanical Specifications
MODULAR BOARD - Uses LEDs to indicate all input and output functions of the gate operator.
ERD - If the gate hits a vehicle while closing, it re-opens. If it hits a vehicle while opening, it stops, reverses 4 to 6 inches
and stops again.
DIGITAL MOTOR PROTECTION - Entrapment sensor shuts off the motor after it reaches the stall amp for 3 seconds,
reverses direction for several inches and stops.
ELECTRONIC INPUTS - Radio receiver, key switch, safety loop, exit loop, telephone entry system, computer input, fire
dept. key switch and 3 push button station.
ELECTRONIC MOTOR DISCONNECT - Prevents activation of the motor while under manual operation. Meets latest UL325
rev. 5 standards.
TIMER - Adjustable timer can be set from 0 to 60 seconds.
POWER INPUT ON/OFF SWITCH - Controls power input to the board with convenient switch.
POWER MANAGEMENT - Board includes electronic power management with over-current shutdown and automatic
MAGNETIC LOCK - With Omni Option board, magnetic lock system is incorporated, allowing you to easily add the
(MG1300) electromagnetic locking system to the gate.
BURGLAR ALARM - With Omni Option board, interfaces with existing home alarm or alarm output.
3 PUSH BUTTON CONTROL - On-board gate operator control for close, stop and open.
INTELLIGENT MASTER/SECOND - Precise, synchronized movement and communication between two gate operators
using 3-wire RS485 bi-directional technology.
SURGE SUPPRESSOR - 20,000 amps and near lightning protection with modular Omni surge suppressor. Initial response
time: 0.000000000001 second.
ALTERNATE OUTPUTS - With Omni Option board 3 push button command control, burglar alarm input and output. QCC
GATE TRAVELING TIME - Adjusted by a precision mechanical device and electrical limit switch system.
SOFT STOP - Gate travels through the cycle at normal speed and comes to a stop slowly for more accurate gate cycle.
Equipped with integrated time delay for long mechanical life expectancy.
INTEGRATED LOOP DETECTORS - Easy to install, modular, plug-in loop detector inputs for exit loop and safety loop.
120V AC POWER Built-in 120V AC power receptacle (NEMA 5-15).
MOTOR DRIVE - Solid-state electronic motor drive system is incorporated into board
RADIO RECEIVER - Includes a built-in 312HM radio receiver for use with DIP switch, billion code and Security+® remote
controls. Allows for one LiftMaster® remote control to conveniently open the gate and additional access points.
ALARM Activates anytime the moving gate is physically stopped by an obstruction
Alarm Reset Button - The alarm reset button will instantly reset the built-in safety alarm siren on all new OmniControl™
operators, allowing normal function without waiting for the alarm status to time out.
Emergency Release - Release handle is standard. Best option is our DC2000™. The gate can be easily disconnected by
turning the release handle. To operate the gate manually, pull release handle 180º, then push the gate open.
Reversing Sensor - Instant reversing gate motor(s) uses high-speed ball bearings for a smooth and quiet operation. If
the gate is closing and hits a vehicle, the sensor detects the increased load on the motor and reverses. If the gate is
opening and hits a vehicle, it stops and reverses
Surge/Lightning Protection - The two-stage hybrid network of surge suppressors protects against lightning strike within
a 50-foot radius, capable of handling high power with fast response.
Limit Switch Design - The CSW200UL1HP™ is manufactured with a precision limit switch system. This system uses high-
speed ball bearings and high-quality components for efficiency and reliability.
Non-Scissor Action Arm - Most swing gate operator arms will cross and produce a dangerous “scissor” action while
opening the gate to a 90° opening. We designed our CSW200UL™ operator arms to not cross, eliminating the scissor
action . This feature reduces the risk of injury from the gate operator arm.
Elite CSW200 1HP or CSW200UL 1HP Mechanical Specifications
CHASSIS - Constructed with 1/4" sanded, welded and gold zinc-plated sheet metal.
WORMGEAR REDUCTION - Two 30-to-1 wormgear reducers in an oil bath.
COVER - High-density polyethylene plastic for excellent heat and corrosion resistance.
FINISHING - All metal parts are gold zinc-plated for rustproof protection.
EMERGENCY RELEASE - Release handle is standard. Best option is our DC2000™.
OUTPUT SHAFT - 2-1/2" cold rolled steel.
GATE TRAVELING SPEED - 90°opening in 13-15 seconds
Elite CSW200 1HP or CSW200UL 1HP Available Models
MOTOR - Equipped with two 1/2 HP gate motors that work together equaling one horsepower
CYCLES - Capable of 60 cycles per hour
CAPABILITIES - Maximum gate length 20'. Maximum gate weight 1,000 lbs
