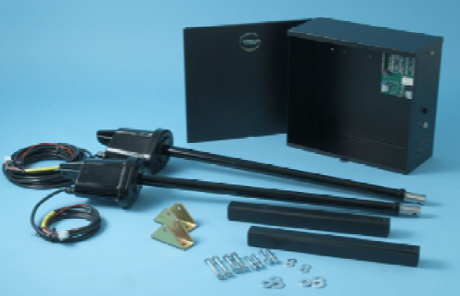

|Apollo 1650ETL Electric Swing Gate Opener
APOLLO OFFERS ITS DUAL ACTUATOR SWING GATE OPERATOR IN TWO MODELS, THE 1600 AND THE 1650 ETL. BOTH MODELS ARE EASILY INSTALLED ON MOST EXISTING OR NEW
SWING GATES OF UP TO 16 FEET IN LENGTH AND 600 POUNDS EACH . THE 1650 ETL MODEL UTILIZES OUR ADVANCED CIRCUIT BOARD, WHICH OFFERS THE POPULAR SOFT STA
RT/SOFT STOP FEATURE, AS WELL AS ADDITIONAL INPUTS FOR A FIREBOX, MONITOR LIGHTS, A LOCK, SIREN AND STROBE LIGHTS. UNLIKE OTHER OPERATORS ON THE MARKET, THE
1650 ETL MODEL ACTUALLY LEARNS AND STORES IN MEMORY BOTH THE CURRENT LIMIT SETTINGS AND THE LENGTH OF THE ACTUATOR STOKE, CREATING A DEFAULT SETTING FOR
FUTURE CYCLES – ALLOWING FOR LONGER OPERATOR LIFE AND GREATER SAFETY.
|Apollo 1600 Automatic Swing Gate Operator
APPLICATIONS: Battery Operated, Solar or AC Charged Swing Gate Operator. Recommended for Residential, Farm
and Ranch, and Light Commercial applications. Recommended for gates up to 16 feet in length and 600 lbs. each.
SPECIAL APPLICATIONS: Can be used in push to open or pull to open applications. This permits the choice of having
the actuator inside or outside the gate regardless of hinge left or right. Direct drive system attaches directly
to the gate.
OPEN OR CLOSE CYCLE TIME: Each direction, 15 seconds.
BATTERY/ CONTROL PANEL BOX: 18” (46cm) x 18” (46cm) x 8” (20cm) Powder Coated Black, Weather resistant NEMA
ACTUATOR: (2) Rust Proof linear, acme screw drive; self-lubricating gears. Supplied with 8 ft. of cable. 38’ cable for
slave actuator. Externally adjustable limit switches.
SHIPPING INFORMATION: 3 boxes
GENERAL DESCRIPTION: Apollo swing and slide gate operators are ready for installation upon receipt. A
professional installer is recommended. Some welding is required for proper installation.
BATTERY REQUIREMENT: 12 volt battery. Apollo recommends a maintenance-free, deep cycle marine battery – 105
amp./hour. (Not supplied) NOTE: In the event of electrical power outage, or significantly overcast
days, a fully charged deep cycle marine battery (recommended) will provide up to 300 cycles or 30 days usage on a
basic system before requiring a recharge.
CIRCUIT BOARD: All standard Apollo operators are shipped with the 636/836 circuit board. Features of this board
• Inputs for: Free Exit Loops, Safety Loops, Under Gate Loops, Safety
Edges, Free Exit Probes, Keypads, Telephone Entry Systems, Intercom
Systems, Pushbuttons, Locks, Radio, Receivers
|Apollo 1600 Automatic Swinging Gate Operator
• AC Trickle Charger or Solar Panels
• Complete Line of Radio Transmitters and Receivers
• Wired or Wireless Digital Keypads
• Wired or Wireless Exit Buttons
• Intercom Systems
• Telephone Entry Systems
• Locks – Mechanical, Magnetic, Solenoid
• Safety and Free Exit Loop Detectors
• Safety Edges
• 3-Button Control Stations
• Exit Probe Detectors
• Photocell Detectors
• Automatic, Adjustable Close Timer
• Adjustable Current Sensitivity for Automatic Safety Reverse
• Fully Systems Capable
APOLLO 400 UPGRADE KIT: For use with Apollo Model 1600 & 1650ETL
Swing Gate Operators Recommended for gates over 16’ (5m) and up to
20’ (6m). The model 1600/1650ETL power drive cylinder is mounted
between #400 arms. The operator now attaches to the gate at 8 ft. (2.4
m) for better gate control. 2 kits needed for 1600/1650ELT.
WEIGHT: 1 box, 27 lbs. (12.2 kg).
|Kits selection and Accesories for the 1600 and 1650ETL see Below
