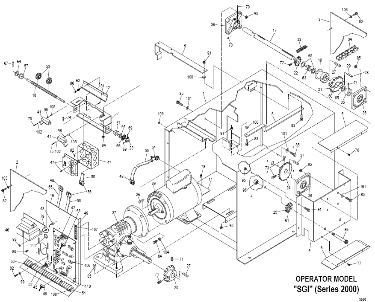

| PowerMaster Gate Opener SGI - Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Slide Gate Opener Click Here for Replacement Parts Quote Form on all Inquiries |
| Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can download PDF File Power Master Parts SGI |
| Power Master Repair Parts for your Power Master Opener We Offer PowerMaster Factory Direct repair parts and New Products for Power Master Systems, Gate Operators, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Part # Description for SGI Slide Gate Openers 1 3701 MAIN HOUSING WELDMENT 2 3708 COVER PLATE 3 6242 STANDARD MINI LIMIT SWITCH BRACKET 4 3705 CHAIN GUARD HOUSING 5 3706 CHAIN GUARD TOP COVER 6 3707 CHAIN GUARD BOTTOM COVER 7 3709 LIMIT SWITCH HOUSING 8 3711 DISCONNECT ARM 9 3719 DISCONNECT HANDLE 10 3738 ELECTRIC PLATE 11 3104 ELECTRIC ACCESS PLATE 12 6209 LIMIT NUT RETAINER PLATE 17 3722 DRIVE SHAFT 18 6427 LIMIT SHAFT 19 2341 DISCONNECT BRASS SLIDE 20 7350 REDUCER SPROCKET 50B15X1"X1/4" KWY 21 7372 DISCONNECT PINNED SPROCKET 22 7331 LIMIT DRIVE SPROCKET 23 6203 LIMIT DRIVEN SPROCKET 24 7313 OUTPUT DRIVE SPROCKET 25 7374 IDLER SPROCKET 50C12X625 26 SK316X1.375 3/16" SQUARE KEY 27 SK14X1.375 1/4" SQUARE KEY 28 R25X1 1/4" ROLL PIN 29 R375X1 3/8" ROLL PIN 33 RC65X25 LIMIT CHAIN 34 RC50X49 INTERMEDIATE DRIVE CHAIN 35 SC-100-R 1" COLLAR 36 UCFL20720 1" FOUR BOLT FLANGE BEARING 37A VE-55 GEAR REDUCER (UP TO 1HP) 37B VE-70 GEAR REDUCER (1-1/2 TO 2HP) 39 MOTOR 40 T1/2-2460V 41A LS-AT LIMIT SWITCH, 41B LS-D44 MINI LIMIT SWITCH 42 GSMCB01 CONTROL BOARD 43 3P-HARN 3 PIN WIRING HARNESS 44 7P-HARN 7 PIN WIRING HARNESS 45 8P-HARN 8 PIN WIRING HARNESS 46 10P-HARN 10 PIN WIRING HARNESS 47 V-353D 4" SQUARE. ON/OFF SWITCH OUTLET BOX 48 4P-MCON 4 PIN MALE CONNECTOR 49 RC/TS-04 4 PIN R/C TERMINAL STRIP 50 TS-02 2 POSITION TERMINAL STRIP 51 TS-04 4 POSITION TERMINAL STRIP 52 TS-114 14 POSITION TERMINAL STRIP 53 6424 LIMIT NUT 54 801-DC2 3/8" 90° CONNECTOR 55 PVI-024 INSULATING TUBING 56 4P-FCON 4 PIN FEMALE CONNECTOR |
| Item Part # Description for SGI Slide Gate Openers 65 1X0.05 1" SHIM 66 PS-375012 PUSH-ON RETAINING RING 67 C093X1 COTTER PIN 69 1104SSC SOCKET SET SCREW 70 1404SSC SOCKET SET SCREW 71 3105SSC SOCKET SET SCREW 72 3110SSC SOCKET SET SCREW 73 SQS51618X75 SQUARE HEAD SET SCREW 74 0606MSP PAN HEAD SCREW 75 0624MSP PAN HEAD MACHINE SCREW 76 0804BSW HEX WASHER HEAD, TYPE B, SHEET METAL SCREW 77 1008BSW HEX WASHER HEAD, TYPE B, SHEET METAL SCREW 78 1408BSW HEX WASHER HEAD, TYPE B, SHEET METAL SCREW 79 0808MSW HEX WASHER HEAD MACHINE SCREW 80 1106MSW HEX WASHER HEAD MACHINE SCREW (GREEN) 81 0616MH HEX HEAD MACHINE SCREW 82 1410BHT HEX HEAD TAP BOLT 83 3116BHT HEX HEAD TAP BOLT 84 3712BHT HEX HEAD TAP BOLT 85 3720BHT HEX HEAD TAP BOLT 86 6252SS SOCKET SHOULDER (STRIPPER) BOLT 87 0410MH HEX HEAD UNSLOTTED MACHINE SCREW 88 C44067 TMNERMAN NUT (4-40 X 2) 90 06NS NYLON INSERT STOP NUT 91 31NS NYLON INSERT STOP NUT 92 06NR SERRATED FLANGE HEX NUT 93 08NR SERRATED FLANGE HEX NUT 94 14NR SERRATED FLANGE HEX NUT 95 37NR SERRATED FLANGE HEX NUT 96 50NF HEX NUT 98 06WSAE FLAT WASHER 99 14WSAE FLAT WASHER 100 31WSAE FLAT WASHER 101 37WSAE FLAT WASHER 102 06WS LOCK WASHER 103 14WS LOCK WASHER 104 37WS LOCK WASHER 105 60233 LIMIT SWITCH SPACER 106 PSO-14 PLASTIC STAND OFF 107 1624-0041 RIVET 108 SD-46BS RIVET 109 KOS-50 1/2" K.O. SEAL 110 G-50 1/2" GROMMET 111 G-87 7/8" GROMMET |
|
