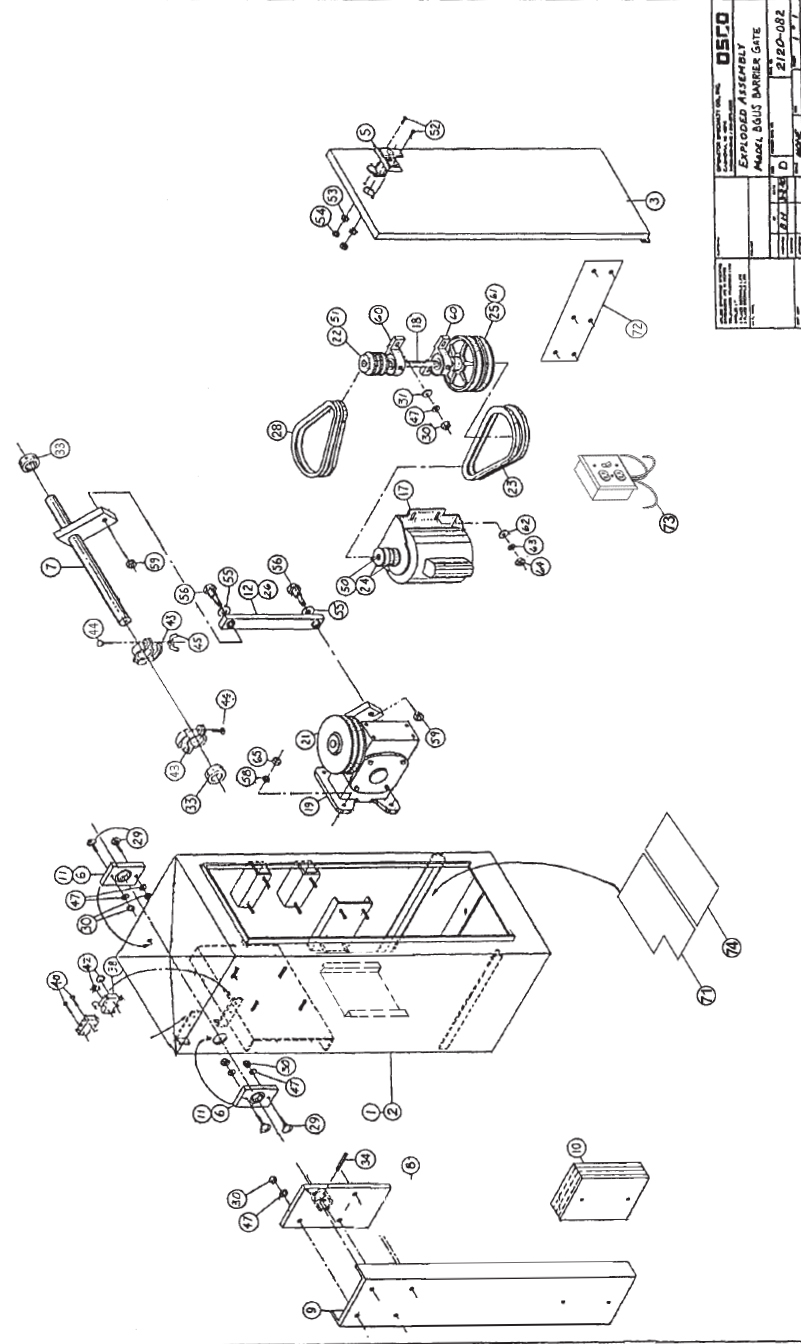

OSCO / Linear BGUS Gate Barrier Openers - OSCO BGUS   Exploded Parts View & Parts List
Welcome to: GATESNFENCES.COM
L. A. Ornamental & Rack Corp
3708 NW 82nd Street
Miami, Florida 33147
Office: 305-696-0419
Fax: 305-696-0461
Osco ( Operator Specialist Company) One of the nation's foremost manufacturers of
commercial and residential gate and door operating systems, OSCO provides quality
automatic openers for the fencing, parking, ornamental iron and garage door industries.
OSCO satisfies the need for quality special application operators in the fencing, parking,
ornamental iron, and garage door industries.
Back to Main OSCO Gate Operators Page
Keypads & Telephone Entry Systems
Gate Operator Circuit Boards
Remote Controls
Loop Detectors & Safety Equipment
Receivers
About Us  |   Contact Us   |   Our Policies   |   FAQ   |   Manufactures   |   Links   |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp.  All rights reserved. No part of this site can be reproduced in any
form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental &
Rack Corp.
3708 NW 82nd Street  Miami  Florida  33147, Office: 305-696-0419  Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com
Item
 Description
 Part Number
 Price
 Price
1 - 2
 Welded Cabinet
Assembly
 2110-781*

3
 Enclosure Door
 2100-372*

5
 Lock Assembly
with Key
 2220-008

6 -
11
 Bearing Block
Assembly Kit
 2110-746
 $39.14
7
 Drive Shaft
Assembly
 2110-170
 $65.25
8
 Gate Arm Flange
 2110-732
 $73.27
9
 Arm Attachment
Channel
 2100-1925-B
T
 $89.82
10
 Counterweight
 2100-1926-B
T
 $34.67
12
 Connecting Link
with Bearings
 2110-441
 $45.37
17
 Motor, 1/2 HP,
115V, 1 Phase
 2500-2307
 $314.84
  Motor, 1/2 HP,
208/230V, 1
Phase
 2500-2308
 $314.84
  Capacitor for
2500-2307 Motor
 2500-2336
 $93.06
  Capacitor for
2500-2308 Motor
 2500-2337
 $76.87
18
 Intermediate
Shaft
 2100-364
 $54.58
19
 Reducer and
Crank Arm
assembly
 2110-117
 $775.45
21
 Reducer Pulley,
7” (2 required)
 2200-917
 $76.28
22
 Intermediate
Pulley, 2” (2
required)
 2200-918
 $21.19
23
 V-Belt, 25” (2
required)
 2200-151
 $11.02
24
 Motor Pulley, 1
5/8”
 2200-235
 $31.89
25
 Intermediate
Pulley, 6”
 2200-011
 $35.31
26
 Flange Bearings
 2200-136
 $5.89
28
 V-Belt, 26” (2
required)
 2200-208
 $11.02
29
 Carriage Bolt,
3/8”-16 x 1 1/2”
 2400-178
 $2.00
30
 Hex Nut, 3/8” -16
 2400-015
 $2.00
31
 Flat Washer, 3/8”
 2400-017
 $2.00

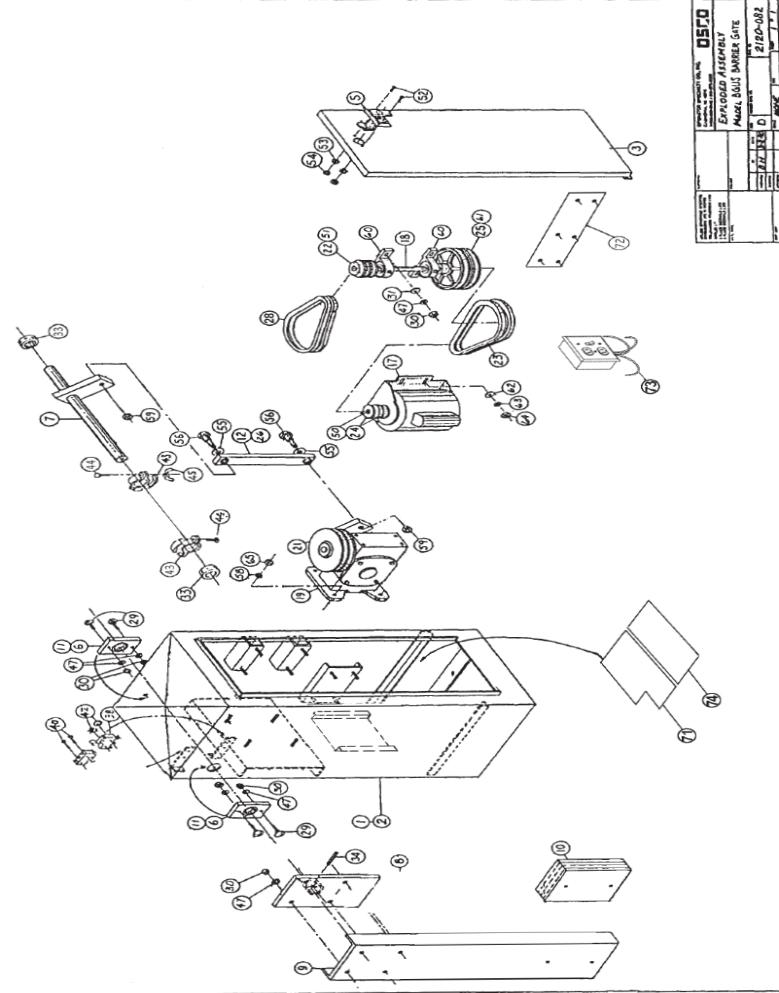

OSCO LINEAR Rep[air Parts for BGUS Cabinet Motor Capacitor Shaft Reducer Pulley Counter Weight
Item
 Description
 Part Number
 Price
 Price
32
 Wing Nut, #10-32
 2400-182

33
 Set Collar, 1 1/4”
 2200-314
 $11.77
34
 Roll Pin, 3/8” x 1”
x 2”
 2400-474
 $3.75
35
 Star Washer, #10
 2400-043

36
 Hex Nut, #10-32
 2400-032
 2.00
37
 Screw, #8 - 32 x
3/8”, self-tap
 2400-049
 2.00
38
 Limit Switch
 2500-029
 $20.44
40
 Screw, #6 - 32 x 2
1/4”, Pan-Head
 2400-246
 $2.00
42
 Kep Nut, #6-32
 2400-069
 $2.00
43
 Limit Cam
 2300-028
 $26.96
50
 Key, Motor Pulley
 2400-134
 $2.00
51
 Key, Intermediate
Shaft
 2400-254
 $2.00
55
 Thrust Washer
 2400-188
 $2.00
56
 Shoulder Bolt,
1/2” - 32 x 2”
 2400-165
 $11.77
60
 Bearing, Pillow
Block
 2200-222
 $72.75
61
 Key, Intermediate
Shaft
 2400-133
 $2.00
71
 Rear Accessory
Shelf
 2100-1804
 $11.77
72
 Power Box
Mounting Plate
 2100-1879
 $39.48
73
 Power On/Off
Disconnect Box,
115VAC
 2510-251-C
 $46.76
  115VAC Duplex
Receptacles only
 2500-1956
 $17.55
  115VAC Switch
only
 2500-1957
 $29.21
  Power On/Off
Disconnect Box,
230VAC
 2510-252-F
 $42.45
  230VAC Switch
only
 2500-2205
 $30.71
74
 Front Accessory
Shelf
 2100-1820
 $7.38
*Specify color and texture.
Ref.                    Part
No.                  Number                                     Description
2                   2110-781*                           Welded Cabinet Assembly
3                   2100-372*                                  Enclosure Door
5                   2220-008                             Lock Assembly with Key
6                   2110-746                            Bearing Block Assembly Kit
7                   2110-170                              Drive Shaft Assembly
8                   2110-732                                Gate Arm Flange
9                   2100-1925                         BT Arm Attachment Channel
10                 2100-1926                              BT Counterweight
12                 2110-441                         Connecting Link with Bearings
26                 2200-136                                Flange Bearings
17                 2500-2307                        Motor, 1/2 HP, 115V, 1 Phase
               2500-2308                     Motor, 1/2 HP, 208/230V, 1 Phase
               2500-2336                       Capacitor for 2500-2307 Motor
               2500-2337                       Capacitor for 2500-2308 Motor
18                 2100-364                                Intermediate Shaft
19                 2110-117                      Reducer and Crank Arm assembly
21                 2200-918                       Intermediate Pulley, 2” (2 required)
23                 2200-151                               V-Belt, 25” (2 required)
24                 2200-235                                   Motor Pulley, 1 5/8”
25                 2200-011                                  Intermediate Pulley, 6”
28                 2200-208                                  V-Belt, 26” (2 required)
29                 2400-178                             Carriage Bolt, 3/8”-16 x 1 1/2”
30                 2400-015                                       Hex Nut, 3/8” -16
31                 2400-017                                    Flat Washer, 3/8”
32                 2400-182                                       Wing Nut, #10-32
33                 2200-314                                    Set Collar, 1 1/4”
34                 2400-474                               Roll Pin, 3/8” x 1” x 2”
35                 2400-043                                  Star Washer, #10
36                 2400-032                                  Hex Nut, #10-32
37                 2400-049                         Screw, #8 - 32 x 3/8”, self-tap
38                 2500-029                                    Limit Switch
40                 2400-246                      Screw, #6 - 32 x 2 1/4”, Pan-Head
42                 2400-069                              Kep Nut, #6-32
43                 2300-028                                  Limit Cam
50                 2400-134                                Key, Motor Pulley
51                 2400-254                           Key, Intermediate Shaft
55                 2400-188                                Thrust Washer
56                 2400-165                         Shoulder Bolt, 1/2” - 32 x 2”
60                 2200-222                            Bearing, Pillow Block
61                 2400-133                          Key, Intermediate Shaft
71                 2100-1804                           Rear Accessory Shelf
72                 2100-1879                          Power Box Mounting Plate
73                 2510-251-C               Power On/Off Disconnect Box, 115VAC
               2500-1956                      115VAC Duplex Receptacles only
               2500-1957                              115VAC Switch only
               2510-252-F                   Power On/Off Disconnect Box, 230VAC
               2500-2205                            230VAC Switch only
               74 2100-1820                         Front Accessory Shelf
