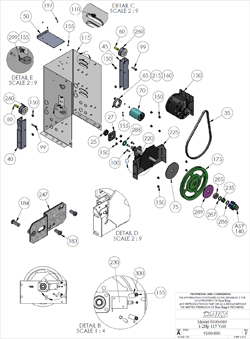

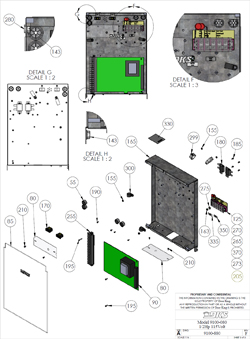

| Doorking 9100 Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Slide Gate Operator 9310 --- Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can download PDF File |
Welcome to: GATESNFENCES.COM
| Doorking Replacement Parts for your Doorking Operator - We Offer Doorking Factory Direct replacement parts and New Products for DKS Systems, Gate Openers, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
|
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
| Item | Description | Part Number | Price | 5 | Manual Installation | 9100-066 |
| 9 | Gasket Switch Cover | 2600-731 | Our Price: $3.00  |
| 10 | Switch Cover Doorking Lockable | 2600-533 | Our Price: $40.00 |
| 15 | Accessory Box 9100 Operator | 2600-849 | Our Price: $90.09 |
| 25 | Bearing Used in Slide Oper | 2600-440 | Our Price: $23.68 |
| 27 | Bearing Holder Plastic Back | 2600-453 | Our Price: $10.00 |
| 35 | Belt-Cogged, AX-35 | 2600-429 | Our Price: $16.16 |
| 40 | Idler Bracket Left | 2600-921 | |
| 45 | Idler Bracket Right | 2600-922 | Our Price: $24.16 |
| 50 | Radio Tray 910 | 2600-938 | |
| 55 | Bushing 7/8 Poke Thru Flaps | 2600-810 | Our Price: $2.00 |
| 60 | Bushing 1/2"ODx5/16"IDx1 5/16L | 2600-871 | Our Price: $5.00 |
| 65 | Capacitor Mounting Clamp | 2600-875 | Our Price: $3.68 |
| 70 | Capacitor 50uf 370VAC | 2600-102 | Our Price: $45.25 |
| 75 | Clutch Pad 4" OD | 2600-342 | Our Price: $6.00 |
| 80 | Cover Plastic Insulator | 2600-945 | Our Price: $18.08 |
| 85 | Cover Plastic Model 9100 | 9100-006 | Our Price: $43.75 |
| 90 | PCB Slide Gate Operator | 4702-010 | Our Price: $299.00 |
| 93 | Label Gate Operator | 2599-034 | Our Price: $1.68 |
| 99 | Bolt Hex Head 5/16-18 x 1 3/4 | 2615-155 | Our Price: $2.00 |
| 100 | Bolt Hex Head 5/16-18 x 3/4 | 2615-153 | Our Price: $2.00 |
| 105 | Door Model 9050 9070 9100 | 2600-933 | Our Price: $50.50 |
| 110 | Hole Plug Plastic for 3/8 Hole | 2600-880 | Our Price: $2.00 |
| 115 | Housing-Model 9050 9070 9100 | 2600-985 | Our Price: $119.88 |
| 120 | Lock N16058BDxSFx2K Key 16120 | 4001-035 | Our Price: $16.80 |
| 123 | Cam 1.1/4 | 1702-503 | Our Price: $5.00 |
| 125 | Marker Strip Silkscreened | 2600-431 | Our Price: $5.08 |
| 130 | Motor Assy 1/2 HP 6100-9100 | 2600-129 | Our Price: $155.04 |
| 135 | Nameplate Plastic DKS Big | 2600-732 | Our Price: $7.50 |
| 136 | Washer Push on Clamp | 2802-040 | Our Price: $2.00 |
| 137 | Gasket, Microphone Support |
1897-052 | Our Price: $2.50 |
| 140 | Jam Nut Magnet Subassy 910/915 | 2600-917 | Our Price: $25.70 |
| 143 | Nut Hex Flange Lock 1/4-20 | 2620-409 | Our Price: $2.00 |
| 145 | Nut Nylon Lock 10-32 | 2902-006 | Our Price: $2.00 |
| 150 | Nut Hex Flange Lock 5/16-18 | 2620-411 | Our Price: $2.00 |
| 155 | Nut Nylon Lock 6-32 | 2902-003 | Our Price: $2.00 |
| 160 | Nut Nylon Lock 8-32 | 2902-004 | Our Price: $2.00 |
| 163 | Nut Nylon Lock 8-32 Green | 2902-010 | Our Price: v$2.00 |
| 165 | Mount Plate-PC Board 910 | 2600-911 | |
| 170 | Outlet Snap-In Leviton 1306 | 1200-028 | Our Price: $5.00 |
| 175 | Pulley 10 inch Aluminum Assy | 2600-957 | Our Price: $45.52 |
| 180 | Resistor Power 1 ohm 30 Watt | 2600-848 | Our Price: $16.80 |
| 183 | Screw Phillips 10-32x3/8 | 2616-051 | Our Price: $2.00 |
| 184 | Screw Phillips Head 10-32 x1/2 | 2616-052 | Our Price: $2.16 |
| 185 | Screw Phillips Head 6-32x3/16 | 2616-006 | Our Price: $2.00 |
| 190 | Screw Phillips Head 6-32 x 1/2 | 2616-002 | Our Price: $2.00 |
| 195 | Screw Phillips Head 6-32x3/4SS | 2616-003 | Our Price: $2.00 |
| 197 | Screw Phillips Head 6-32 x 3/8 | 2616-001 | Our Price: $2.00 |
| 200 | Screw Phillips Head 6-32 x 1/4 | 2616-000 | Our Price: $2.00 |
| 205 | Screw Phillips Head 6-32x5/8" | 2616-007 | Our Price: $2.00 |
| 210 | Screw Nylon Phillips 6-32x1/4" | 2600-887 | Our Price: $2.00 |
| 215 | Screw Phillips Head 8-32 x 3/4 | 2616-019 | Our Price: $2.00 |
| 220 | Main Shaft Assembly | 2600-903 | Our Price: $47.50 |
| 225 | Bracket Shaft Support 910 | 2600-930 | Our Price: $37.68 |
| 230 | Solenoid Lock Assy 91XX | 2600-860 | Our Price: $47.50 |
| 235 | Spring-Compression | 2600-446 | Our Price: $6.00 |
| 247 | Bracket Solenoid Support | 2600-487 | Our Price: $8.00 |
| 250 | Switch Toggle SPST 2POS | 1601-041 | Our Price: $15.00 |
| 251 | Switch Push Button N.O. | 1812-005 | Our Price: $18.40 |
| 252 | Tone Generator Loud | 1506-071 | Our Price: $45.00 |
| 255 | Terminal 18 Pin | 2901-002 | Our Price: $33.75 |
| 260 | Idler Wheel UHMW | 2600-886 | Our Price: $16.00 |
| 265 | Jumper- Ring Tongue #8 Screw | 2600-840 | Our Price: $2.00 |
| 270 | Terminal Block 5 pin | 3130-008 | Our Price: $10.00 |
| 273 | Terminal Block Cover 5 Position | 3129-005 | Our Price: $9.36 |
| 275 | Washer Cup - Brass | 2600-439 | Our Price: $2.50 |
| 280 | Lockwasher 5/16" | 2620-053 | Our Price: $2.00 |
| 285 | Bearing - Thrust 3/4 ID | 2600-053 | Our Price: $2.00 |
| 286 | Washer Hardened 1 1/4 x 3/4 ID | 2600-345 | Our Price: $1.20 |
| 287 | Washer 1 1/8"OD x 3/4"ID | 2600-344 | Our Price: $1.20 |
| 288 | Washer Neoprene 1.5"x.725"x125 | 2600-990 | Our Price: $1.40 |
| 289 | Washer 4"ODx3/4"ID | 2620-035 | Our Price: $4.16 |
| 290 | Wire Set for 9100 Operator | 2600-988 | Our Price: $33.75 |
| 299 | Wire Clamp-1" | 2600-639 | Our Price: $2.00 |
| 300 | Wire Clp-5/8" Concord 770-1209 | 2600-619 | Our Price: $2.00 |
| 315 | Tie Wrap 4" | 1804-031 | Our Price: $2.00 |
| 317 | Wire Connector STA-KON RC6 | 2600-749 | Our Price: $0.82 |
| 320 | Weather Stripping 50' rolls | 4001-018 | Our Price: $2.00 |
| 330 | Label Patent | 2599-008 | Our Price: $2.24 |
| 335 | Decal SUPPLY GND | 2599-006 | Our Price: $2.00 |
| 340 | Label Universal | 2599-199 | Our Price: $2.00 |
| 350 | Decal Copper Wire Only | 2599-014 | Our Price: $1.00 |
| 355 | Sign Warning | 2599-100 | Our Price: $8.00 |
| 370 | MOV Assembly 130VAC | 4001-093 | Our Price: $15.00 |
| 400 | Manual Installation | 9100-065 |
