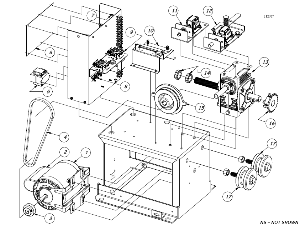

Allstar Gate Opener Leader Plus - Scroll Down to View Exploded Parts View
or Illustrated  Parts Breakdown For Sliding Gate Opener
Click Here for Replacement Parts Quote Form on all Inquiries
Click on Image to Enlarge, after new window opens click on image again to
enlarge more or you can download PDF File ALLSTAR Parts Leader Plus
ALLSTAR Replacement Parts for your ALLSTAR Opener - We
Offer ALLSTAR Factory Direct replacement parts and New
Products for ALLSTAR Systems, Gate Opener, Keypad Parts,
Proximity and Multi-Tenant Access Control panels
Item     Part #        Description for Sliding Leader Plus Gate Opener
1        10172          Motor,1/2 HP,56 FRM,115 VAC,ODP,PSC
2        10121          Capacitor,Motor,65 MFD,180VAC,Leeson 3014-13
3        10213          Motor Pulley, 4L
4        111814        V Belt,4L310
5        5244            Transformer,115-24 VAC,40 VA
6        110001        Motor Control Board,120V, Leader+
6a      112359        Motor Control Board,120V, LDR, High Speed
7        157149        Standoff, Motor Control Board
8        112726        Switch, Push Button, SPST, NO, Black
8a      111727        Switch, Push Button, SPST, NO, Red
9        111725        Socket, Octal,11 Pin, DIN/Panel MNTG
10      103829        Switch ASSY, Limit, LDR
10a    112032        Switch, SPDT, 15A/250V, SIMUL Roller Lever
11      102076        Lock Assembly, Solenoid, Cont. Duty, LDR
11a    102551        Solenoid, Lock, Push, 120 VAC
12      113366        Lock Assembly, Fail Secure Lock, CMPLT w/solenoid
12a    100879        Solenoid, 115 VAC, Horizontal Pull, 8# Max Pull`
13      103427        Reducer, Speed, 10:1
14      10606          Limit Nut, 1 x 16
15      102077        Pulley, Lock PLT, Continuous Duty
16      110131        Sprocket, 41B18, 1” Thru Bore, 1/4 Key
16a    9136            Sprocket, 40B30, 1 TB, 1/4 Key, High Speed
17      104395        Pulley, Idler, UHMW, 3.5 OD
NS      110132        Receptacle, Duplex, Outlet/Switch, 120 VAC
NS      103671        Sign, Gate, Warning/OSHA
NS      111785        Manual, Installation/User, LPX1000
NS      112749        Cover Assembly, Operator, LPX1000
NS      10203          Chain, #41, Roller, 600P, 25 FT
NS      10209          Chain, #40, Roller, 600P, 25 FT, High Speed
NS      10272          Bracket, Chain Take-Up, Heavy Duty
