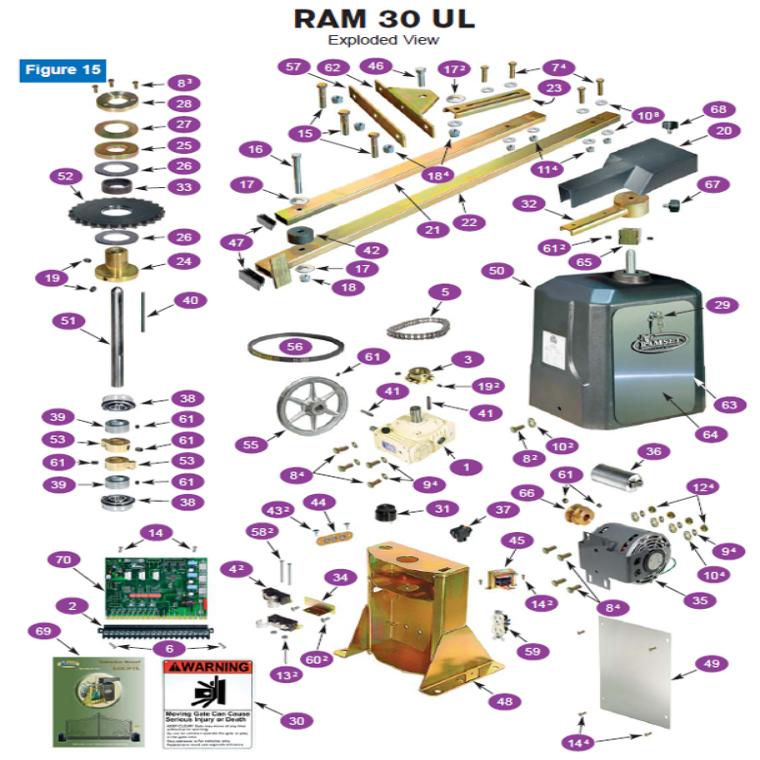

RAMSET Gate Operators Ram 30 - Scroll Down to View Exploded Parts View & Parts List |
RAMSET Replacement Parts for your RAMSET Openers - We Offer RAMSET Factory Direct replacement parts and New Products for RAMSET Systems, Gate Openers, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
|
|
|
1 50-027 Gear Reducer Size 40 60:1 1 2 50-039 20 Pin Edge Connector 1 3 50-050 40 b 12 7/8" Sprocket 1 4 50-069 Limit Switch 00h-3 2 5 50-084 # 40 Drive Chain 1 6 50-091 # 6 x 1" Machine Screw 2 7 50-092 3/8-16 x 1 1/2" Hex Head Bolt 4 8 50-095 5/16-18 x 3/4" Hex Head Bolt 13 9 50-096 5/16" Lock Washer 8 10 50-097 5/16" Flat Washer 14 11 50-103 3/8-18 Hex Head Lock Nut 4 12 50-104 5/16" Hex Head Nut 4 13 50-105 # 6 Hex Head Nut 2 14 50-107 # 6 x 3/8" Machine Screw 8 15 50-110 1/2-14 x 2 1/2" Hex Head Bolt 3 16 50-111 1/2-14 x 3 1/2" Hex Head Bolt 1 17 50-112 1/2" Flat Washer 4 18 50-113 1/2-14 Nylon Lock Nut 5 19 50-114 1/4-20 Socket Head Screw 4 20 50-115 Polyethylene Cup Cover 1 21 50-117 1" x 2" x 32" Rectangular Metal Tube 1 22 50-118 1" x 2" x 42" Rectangular Metal Tube 1 23 50-126 Channel 1 24 50-127 2 1/2" Torque Limited Arbor 1 25 50-128 2 1/2" Torque Limited Washer 1 26 50-129 2 1/2" Torque Limited Friction Disc 2 27 50-130 2 1/2" Torque Limited Tension Washer 1 28 50-131 1-3/4" Torque Limited Nut 1 29 50-149 Access Door Lock 1 30 50-151 Warning Sign for Gate 2 31 50-168 Horn Alarm 1 32 50-172 3 1 1/2" Clamp Release 1 33 50-181 Torque Limited Bushing 1 34 50-183 Limited Switch Bracket 1 35 50-200 1/2 Hp 115 VAC Electric Motor 1 |
36 50-205 Capacitor 1 37 50-215 Rocker Switch 1 38 50-247 3/4" Sealed Ball Bearing 2 39 50-253 3/4" Collard Shaft 2 40 50-263 1/4" x 5" Key Way 1 41 50-265 3/16" x 3/4" Key Way 2 42 50-275 1 1/2" UHMW Spacer 1 43 50-295 #8 Self-Tap Sheet Metal Screw 2 44 50-299 Radio Receiver Terminal 1 45 50-304 120/240 Intelligate Transformer 1 46 50-337 1/2" x 1-1/2" Hex Head Bolt 1 47 50-339 1" x 2" Plastic Cap 2 48 50-401 10 Ga Heavy Duty Metal Chassis 1 49 50-402 Board Lexan Glass Cover 1 50 50-403 Polyethylene Cover 1 51 50-404 3/4" x 10" Limit Switch Shaft 1 52 50-405 40A27 Sprocket 1 53 50-406 3/4" Limit Switch Cam 2 54 50-407 1/2" x 1" Cast Iron Pulley 2 55 50-408 6" Aluminum Pulley 1 56 50-409 4L V Belt #250 1 57 50-419 1/4" x 1 1/2" x 10" Ext. Gate Bracket 1 58 50-529 #6 x 2" Machine Screw 2 59 50-511 120 VAC Double Outlet 1 60 50-526 #6 x 1/4" Machine Screw 2 61 50-539 5/16" Socket Head Screw 9 62 50-546 Internal Gate Bracket Swing Arm 1 63 50-559 Access Door Frame 1 64 50-560 Access Door 1 65 50-563 1 1/2" x 1 1/2" x 3/4" Sq. Pivot 1 66 50-564 1/2" x 1 1/2" Iron Pulley 1 67 50-565 5/16" x 1 1/2" Knob 1 68 50-566 5/16" x 1/2" Knob 1 69 50-569 Instruction Manual 1 70 50-777 Intelligate Control Board 1 |
