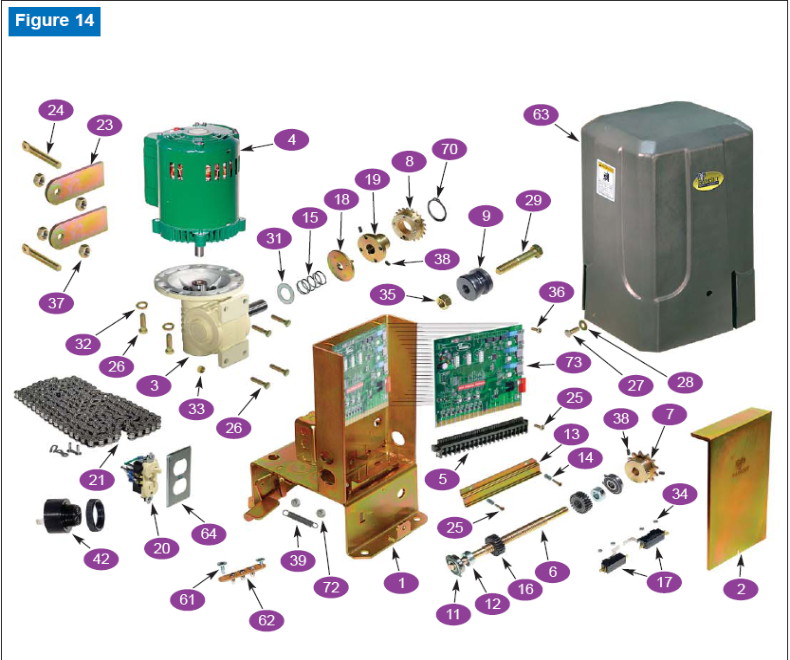

RAMSET Gate Operators Ram 100 - Scroll Down to View Exploded Parts View & Parts List
RAMSET Replacement Parts for your RAMSET Operators -
We Offer RAMSET Factory Direct replacement parts and New
Products for RAMSET Systems, Gate Operators, Keypad
Parts, Proximity and Multi-Tenant Access Control panels
Item    Parts  #          Description for Ram 100 Gate Operators
1          50-001         3/16" Hot Rolled Metal Chassis
2          50-011         Board Metal Cover
3          50-024         Speed Reducer Size 43:30:1 Ratio
4          50-031         1/2 hp 115 VAC Electric Motor
5          50-039         20 Pin Edge Connector
6          50-041         1/2" x 8 1/2" Limit Switch Shaft
7          50-046         41 b 12 x 1/2" Sprocket
8          50-047         41 b 21 Clutch Release Sprocket
9          50-057         2" UHMW Idler Pulley
11        50-059         6202-2rs Ball Bearing
12        50-061         1/2" hp Shaft Collar
13        50-062         Spring Load Bracket
14        50-064         1" Tension Spring
15        50-065         2" Tension Spring (Clutch Spring)
16        50-066         Limit Switch Nuts
17        50-069         Limit Switch 00h-3
18        50-074         4 Pin Disc Release for Clutch
19        50-075         Arbor Release
20        50-080         Outlet and Toggle Switch
21        50-087         # 41 x 20' Gate Chain
23        50-089         3/8" x 2" x 7" Chain Bracket
24        50-090         1/2" x 4" Chain Bolt
About Us  |   Contact Us   |   Our Policies   |   FAQ   |   Manufactures   |   Links   |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp.  All rights reserved. No part of this site can be reproduced in any form
or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street  Miami  Florida  33147, Office: 305-696-0419  Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com
Keypads & Telephone Entry Systems
Gate Operator Circuit Boards
Remote Controls
Loop Detectors & Safety Equipment
Receivers
25        50-091         # 6 x 1" Machine Screw
26        50-092         3/8"-16 x 1 1/4" Hex Head Bolt
27        50-095         5/16"-18 Unc x 3/4" Hex Head Bolt
29        50-098         5/8"-11 x 3 1/2" Hex Head Bolt
31        50-100         3/4" Flat Washer
32        50-101         3/8" Lock Washer
33        50-103         3/8" Hex Head Nut
34        50-105         # 6 Hex Head Nut
35        50-106         5/8" Hex Head Nut
36        50-107         # 6 x 3/8" Machine Screw
37        50-113         1/2" Hex Head Nut
38        50-114         1/4"-20 Socket Head Screw
39        50-145         1/2" x 3" Tension Spring (pedal)
40        50-151         Warning Sign for Gate
41        50-157         Instruction Manual
42        50-168         Horn Alarm
61        50-295         # 8 Self-Tap Sheet Metal Screw
62        50-299         Radio Receiver Terminal
63        50-503         Polyethylene Cover
64        50-510         Outlet Switch Cover
70        50-518         1 1/2" External Snap Ring
72        50-540         5/16" Lock Nut
73        50-777         Intelligate Control Board
Item
 Description
 Part Number
 Price
1
 3/16" Hot Rolled
Metal Chassis
 50-001
2
 Board Metal Cover
 50-011
3
 Speed Reducer
Size 43:30:1 Ratio
 50-024
4
 1/2 hp 115 VAC
Electric Motor
 50-031
5
 20 Pin Edge
Connector
 50-039
6
 1/2" x 8 1/2" Limit
Switch Shaft
 50-041
7
 41 b 12 x 1/2"
Sprocket
 50-046
8
 41 b 21 Clutch
Release Sprocket
 50-047
9
 2" UHMW Idler
Pulley
 50-057
11
 6202-2rs Ball
Bearing
 50-059
12
 1/2" hp Shaft Collar
 50-061
13
 Spring Load
Bracket
 50-062
14
 1" Tension Spring
 50-064
15
 2" Tension Spring
(Clutch Spring)
 50-065
16
 Limit Switch Nuts
 50-066
17
 Limit Switch 00h-3
 50-069
18
 4 Pin Disc Release
for Clutch
 50-074
19
 Arbor Release
 50-075
20
 Outlet and Toggle
Switch
 50-080
21
 # 41 x 20' Gate
Chain
 50-087
23
 3/8" x 2" x 7"
Chain Bracket
 50-089
24
 1/2" x 4" Chain Bolt
 50-090
25
 # 6 x 1" Machine
Screw
 50-091
Item
 Description
 Part Number
 Price
26
 3/8"-16 x 1 1/4" Hex
Head Bolt
 50-092
27
 5/16"-18 Unc x 3/4"
Hex Head Bolt
 50-095
29
 5/8"-11 x 3 1/2" Hex
Head Bolt
 50-098
31
 3/4" Flat Washer
 50-100
32
 3/8" Lock Washer
 50-101
33
 3/8" Hex Head Nut
 50-103
34
 # 6 Hex Head Nut
 50-105
35
 5/8" Hex Head Nut
 50-106
36
 # 6 x 3/8" Machine
Screw
 50-107
37
 1/2" Hex Head Nut
 50-113
38
 1/4"-20 Socket Head
Screw
 50-114
39
 1/2" x 3" Tension
Spring (pedal)
 50-145
40
 Warning Sign for
Gate
 50-151
41
 Instruction Manual
 50-157
42
 Horn Alarm
 50-168
61
 # 8 Self-Tap Sheet
Metal Screw
 50-295
62
 Radio Receiver
Terminal
 50-299
63
 Polyethylene Cover
 50-503
64
 Outlet Switch Cover
 50-510
70
 1 1/2" External Snap
Ring
 50-518
72
 5/16" Lock Nut
 50-540
73
 Intelligate Control
Board
 50-777
