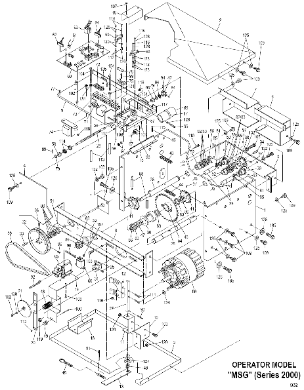

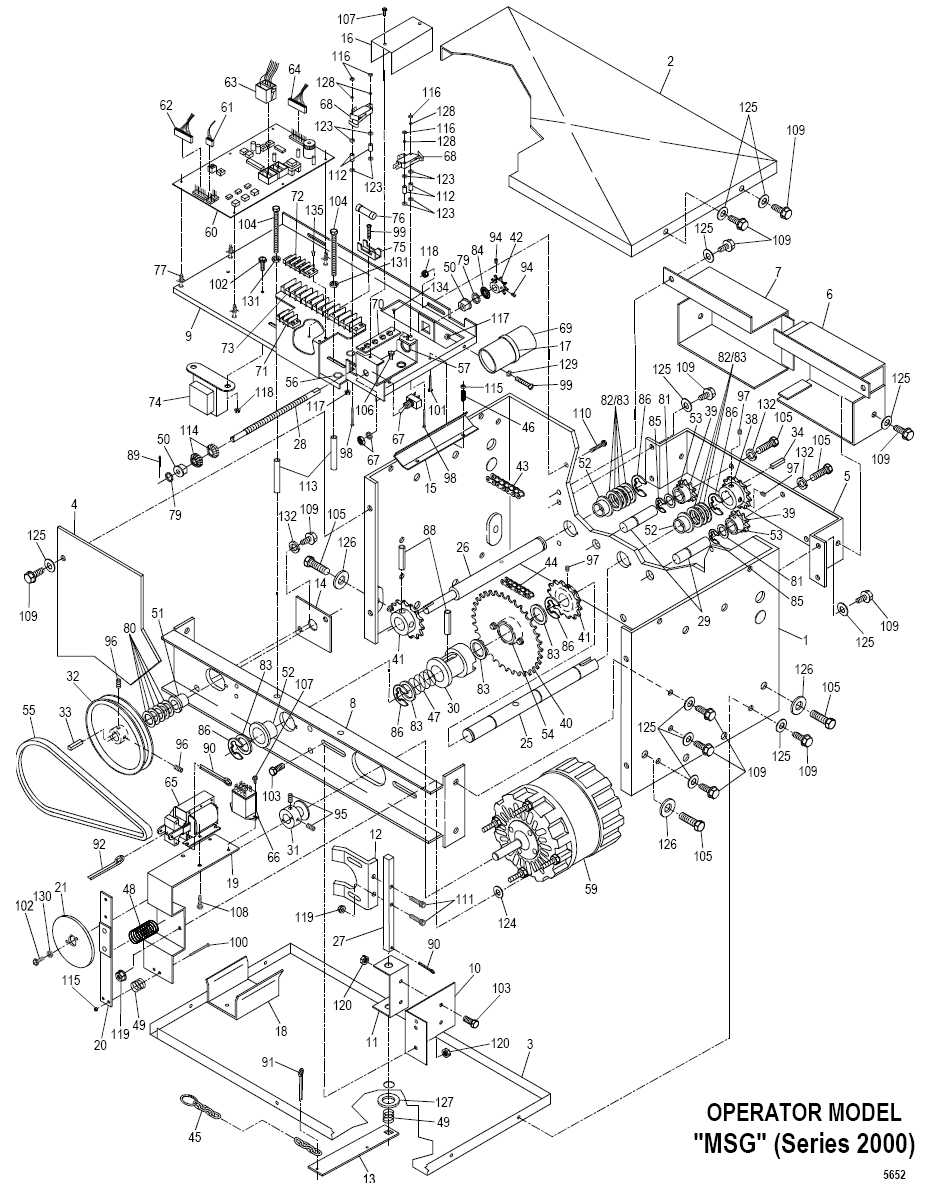

| PowerMaster Gate Openers MSG - Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Slide Gate Openers Click Here for Replacement Parts Quote Form on all Inquiries |
| Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can download PDF File Power Master Parts MSG |
| Power Master Replacement Parts for your Power Master Opener We Offer PowerMaster Factory Direct replacement parts and New Products for Power Master Systems, Gate Opener, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Part # Description for MSG Slide Gate Opener 1 4304 Housing 2 4306 Top cover 3 4305 Bottom pan 4 4307 Front cover 5 3506 Idler brace 6 3505-1 Chain guard (right half) 7 3505-2 Chain guard (left half) 8 4303 Drive frame 9 4323 Electric plate weldment 10 3507 Disconnect mounting bracket 11 6213 Disconnect U-bracket 12 6214 Disconnect horseshoe 13 M-1000 Disconnect lever 14 2215 Lower chain adjusting plate 15 1105 Limit nut retainer plate (L/D) 16 4302 Junction box cover 17 1104 Capacitor strap 18 3704 Loop detector bracket 19 3521 Brake mounting bracket 20 1303 Brake bar 21 TBD-400 Brake disc 25 3514 Drive shaft 26 3515 Sensitivity shaft 27 4317 Disconnect (square) shaft 28 1309 Limit shaft 29 3518 Idler shaft 30 3513 Brass disconnect slider 31 AS1550 Motor pulley 32 AS6058 Drive sheave 33 SK316X1375 3/16" Square key 34 SK14X1375 1/4" Square key 38 7320 Drive sprocket (41B14X1"X1/4"KW) 39 7305 Idler sprocket (41B12X1") 40 7335 "J" Pinned sprocket (65B32X112) 41 7331 Sprocket (65B14X1") 42 6203 Limit driven sprocket (48B7X3/8") 43 RC41X41 Intermediate drive roller chain 44 RC65X35 Limit roller chain 45 8A-12 Disconnect chain 46 LC045D3MW Limit nut guide pressure spring 47 C1225 Disconnect slide return spring 48 LC072L7MW Upper rake spring 49 LC055J1MW Lower brake and disconnect lever spring 50 FB-375 3/8" Flange bearing 51 FB-625 5/8" Flange bearing 52 FB-1000 1" Flange bearing 53 PBO7510875 3/4" Plain bearing 54 PBO1011210 1" Plain bearing 55 4L-330 V-belt 56 G-50 1/2" Grommet 57 G-87 7/8" Grommet 59 F42D42C45 Motor 60 GSMCBO1 Control board 61 3P-HARN 3 Pin wiring harness 62 7P-HARN 7 Pin wiring harness 63 8P-HARN 8 Pin wiring harness 64 10P-HARN 10 Pin wiring harness 65 4X240 Brake solenoid 66 R24A-SEDPDT Relay 67 2GK51-73 ON/OFF switch 68 D44 Limit switch 69 CAP-70220 Capacitor |
| Item Part # Description for MSG Slide Gate Opener 70 R/C-TS-04 4 Position R/C terminal strip 71 TS-02 2 Position terminal strip 72 TS-04 4 Position terminal strip 73 TS-114 14 Position terminal strip 74 T1-2440VA Transformer 75 FH-300-20 Fuse holder 76 F-250-10 10 AMP fuse 77 PSO-14 Plastic stand off 79 375-050 3/8" Shim 80 625X050 5/8" Shim 81 750X050 3/4" Shim 82 1X016 1" Shim (thin) 83 1X050 1" Shim (thick) 84 S375012 3/8" Push-on retaining ring 85 SE-74 3/4" E-ring 86 SE98-01 1" E-ring 87 R14X1.125 Roll pin 88 R312X1.625 Roll pin 89 CO93X1 Cotter pin 90 C125X1 Cotter pin 91 C125X1.5 Cotter pin 92 C125X2 Cotter pin 94 1104SSC Socket set screw 95 1404SSC Socket set screw 96 3104SSC Socket set screw 97 3105SSC Socket set screw 98 0420MSP Pan head machine screw 99 0610MSP Pan head machine screw 100 0626MSP Pan head machine screw 101 0616MH Hex head machine screw 102 0806MH Hex head machine screw 103 1410MH Hex head tap bolt 104 1448CH2 Hex head cap bolt 105 3712BHT Hex head tap bolt 106 1106MSW Hex washer head, ground screw (green) 107 0804BSW Hex washer head type, B, sheet metal screw 108 1408BSW Hex washer head type, B, sheet metal screw 109 3108BSW Hex washer head type, B, sheet metal screw 110 0806MSW Hex washer head machine screw 111 1114CSP Socket head cap screw 112 60233 Limit switch spacer 113 61883 Electric plate mounting spacer 114 L-100 Limit nut 115 6NS Nylon insert stop nut 116 04NH Hex nut 117 06NR Serrated flange hex nut 118 08NR Serrated flange hex nut 119 11NR Serrated flange hex nut 120 14NR Serrated flange hex nut 123 04WSAE Flat washer 124 10WSAE Flat washer 125 31WSAE Flat washer 126 37WSAE Flat washer 127 50WSAE Flat washer 128 04WS Lock washer 129 06WS Lock washer 130 08WS Lock washer 131 14WS Lock washer 132 37WS Lock washer 134 1624-00411 Rivet 135 SD-46BS Rivet |
|
