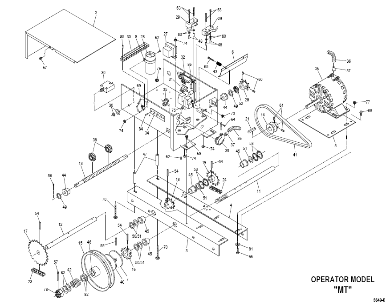

| PowerMaster OverHead Operator MT - Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For OverHead Gate Operators Click Here for Replacement Parts Quote Form on all Inquiries |
| Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can download PDF File Power Master Parts MT |
| Power Master Replacement Parts for your Power Master Operator We Offer PowerMaster Factory Direct replacement parts and New Products for Power Master Systems, Gate Operators, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Part # Description for MT Overhead Operator 1 2800 Electric box weldment 2 2803 Electric box cover 3 2805 Left frame rail 4 2806 Right frame rail 5 2807 Motor mounting plate 6 6209 Limit nut guide retainer plate 7 C-100 Clutch plate 8 1104 Capacitor strap 11 2838 Clutch shaft 12 T-108 Drive shaft 13 M-1014 Limit shaft 14 AS1550 1-1/2" Motor pulley 15 BS7034 7" Drive sheave 16 7304 Reduction drive sprocket 17 7307 Reduction driven sprocket 18 7306 Trolley drive sprocket 19 7345 Limit drive sprocket 20 6203 Limit driven sprocket 21 SK316X1375 3/16" Square key 23 RC41X37 Intermediate drive roller chain 24 RC65X31 Limit roller chain 26 324P220 Motor 27 T1-2410VA 1Ø Transformer 28 CAP-70220 Capacitor 29 LS-AT Limit switch 30 MB-AS REQ'D. 1Ø Overload reset switch 31 PRB2C PRB board 32 12P-HARN 12 Pin wiring harness 33 TS-112 12 Position terminal strip 34 TS-03 3 Position R/C terminal strip 35 801-DC 3/8" 90 Connector 36 3/8-EMT Flexible conduit 37 IB-37 Insulating bushing 38 L-100 Limit nut 40 D-100 Clutch (fiber) disc 41 4L-280 V-belt 42 C.218 Clutch spring 43 LC045D3MW Limit nut guide pressure spring 44 FB-375 3/8" Flange bearing |
| Item Part # Description for MT Overhead Operator 45 FB-750 3/4" flange bearing 46 PB-750 3/4" Plain bearing 47 60928 Electric box spacer 48 60233 Limit switch spacer 49 375X050 3/8" Shim 50 750X016 3/4" Shim (thin) 51 750X050 3/4" Shim (thick) 52 PS-375012 3/8" Push-on retaining ring 53 5115-75 3/4" Push-on retaining ring 54 R25X1.125 Roll pin 55 R25X1.625 Roll pin 56 C093X1 Cotter pin 57 C125X1 Cotter pin 60 1106SSC Socket set screw 61 1404SSC Socket set screw 62 0606MSP Pan head machine screw 63 0624MSP Pan head machine screw 64 0806MSP Pan head machine screw 65 0616MH Hex head machine screw 66 3112BHT Hex head tap bolt 67 0804BSW Hex washer head, type B, sheet metal screw 68 1408BW Hex washer head, type B, sheet metal screw 69 1106MSW 70 1440C Carriage bolt 73 06NS Nylon insert stop nut 74 06NR Serrated flange hex nut 75 08NR Serrated flange hex nut 76 14NR Serrated flange hex nut 77 31NR Serrated flange hex nut 78 Slotted hex nut 76NHS 80 06WSAE Flat washer 81 31WSAE Flat washer 82 75WSAE Flat washer 84 1624-00411 Rivet 85 SD-46BS Rivet 86 PSO-14 Plastic stand off |
|
