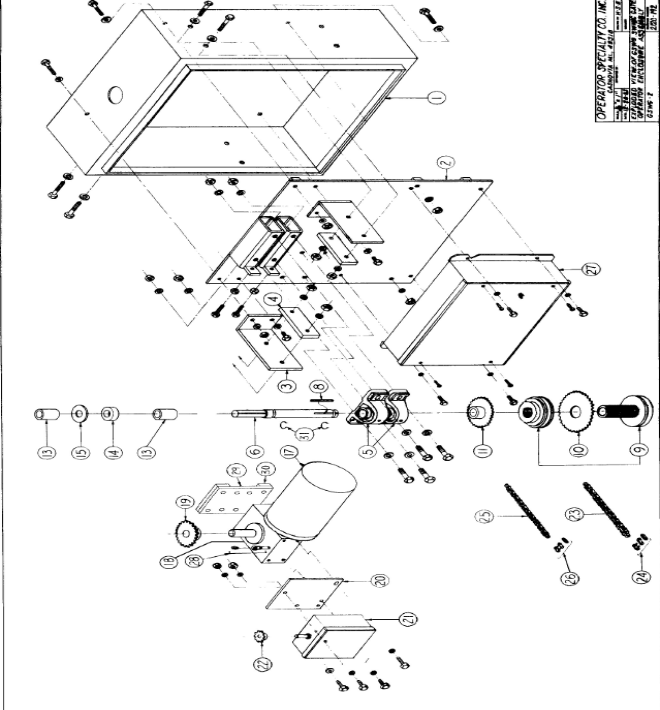

| OSCO Gate Operators VS-GSWG - Scroll Down to View Exploded Parts View & Parts list for OSCO VS-GSWG |
| OSCO Replacement Parts for your OSCO Operators - We Offer OSCO Factory Direct replacement parts and New Products for OSCO Systems, Gate Operators, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Parts # Description for OSCO VS-GSWG Gate Operators 2120-361 Complete Enclosure Assembly with Door 1 2110-067 Enclosure Assembly without Door 2 120-362 Enclosure Door and Lock Assembly 2 110-643 Snap Lock Assembly only 2 2110-161 Mounting Panel Assembly 3 2100-708 Side Support Bracket 4 2100-656 Side Plate, 3/8” 5 2200-264 Pillow Block Bearing 6 2100-766 Drive Shaft, 1 1/8" diameter 8 2400-278 Key, 1/4" x 1/4" x 2 1/2" 9 2200-595 Torque Limiter, 5" 9 2300-381 Torque Limiter Facing, 5" 10 2200-583 Sprocket, 40-A-36, 3" bore 11 2210-009 Sprocket, 48-B-30, 1 1/8" bore 13 2100-1112-PLT Moisture Seal Spacer (2) 14 2200-016 Moisture Seal 15 2400-067 Seal Washer, 1” x 2 1/2" 18 2200-097 Gear Reducer, 60:1 19 2200-968 Sprocket, 40-B-22, 1" bore 20 2100-735 Limit Box Mounting Plate 21 2520-453 Rotary Limit Box Assembly 22 2200-008 Sprocket, 48-B-10, 1/2" bore 23 2200-459 #40 Roller Chain, 27 1/2 Links 24 2200-006 #40 Master Link 25 2200-200 #48 Roller Chain, 27 Links 26 2200-010 #48 Master Link 27 Complete Controller Assembly 28 2200-409 Pipe Nipple 29 2100-1414 Reducer Plate 30 2100-1413 Reducer Plate Spacer 30 2200-428 Reducing Coupling 30 2200-429 Pipe, 1/4” x 3 1/2” THD, both ends 30 2400-264 Pipe Plug, 1/4" 30 2510-064 Three-Button Station with Lead Wires 30 2500-033 Three-Button Station only 31 2400-514 Retaining Ring Clip 17 2500-2313 1/2 HP, 208/230/460V, 3 Phase 17 2500-2315 1 HP, 208/230/460V, 3 Phase 17 2500-372 2 HP, 208/230/460V, 3 Phase 2520-467 1/2 HP, 115V, 1-Phase Controller 2520-468 1/2 HP, 208/230V, 1-Phase Controller 2520-469 1/2 HP, 208/230V, 3-Phase Controller 2520-470 1/2 HP, 460V, 3-Phase Controller 2520-463 1 HP, 115V, 1-Phase Controller 2520-464 1 HP, 208/230V, 1-Phase Controller 2520-465 1 HP, 208/230V, 3-Phase Controller 2520-466 1 HP, 460V, 3-Phase Controller 2520-474 2 HP, 208/230V, 1-Phase Controller 2520-475 2 HP, 208/230V, 3-Phase Controller 2520-476 2 HP, 460V, 3-Phase Controller 1 2120-079 Enclosure with Cover 3 2500-766 115/24V, 75VA 3 2500-767 208/230/24V, 75VA 3 2500-768 460/24V, 75VA 4 2500-2244 1/2 HP, 115VAC, 1-Phase 4 2500-2246 1/2 HP, 208/230VAC, 1- or 3-Phase 4 2500-2249 1/2 HP, 460VAC, 3-Phase 4 2500-2245 1 HP, 115VAC, 1-Phase 4 2500-2247 1 HP, 208/230VAC, 1- or 3-Phase 4 2500-2250 1 HP, 460VAC, 3-Phase 4 2500-2248 2 HP, 208/230VAC, 1- or 3-Phase 4 2500-2251 2 HP, 460VAC, 3-Phase 5 2500-2207 Optional Low Voltage Surge Protector 6 2500-1145 Potentiometer 7 2510-295-VS Control Board with 3-Phase Motor Board 7 2510-268-VS Control Board only 7 2500-1980 3-Phase Motor Board (top board) 7 2500-1975 3-Amp Fuse for Control Board 7 2500-1966 2-Amp Fuse for Control Board 8 2500-071 Terminal Strip, 16-141 9 2500-2291 Power On/Off Switch, 30 Amp, 600VAC 10 2510-250 Output Wire Harness Assembly 11 2510-249 Input Wire Harness Assembly 12 2510-253 Limit Switch Harness 13 2510-346 Control Box Motor Harness, 115/230VAC 13 2510-371 Control Box Motor Harness, 460VAC |
|
