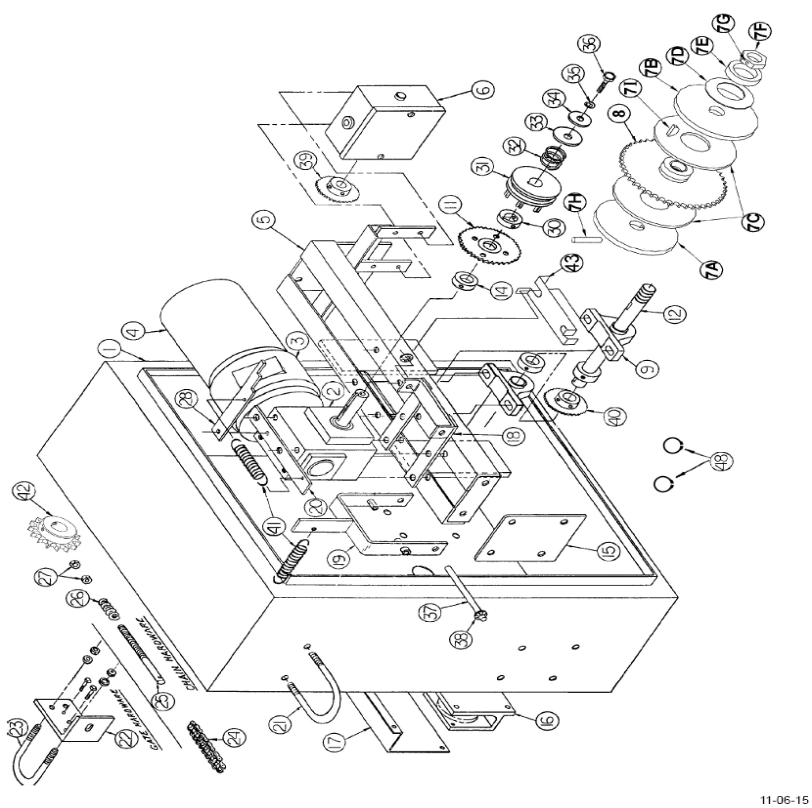

| OSCO Gate Openers VS-GSLG - Scroll Down to View Exploded Parts & Parts List |
| OSCO Replacement Parts for your OSCO Openers - We Offer OSCO Factory Direct repair parts and New Products for OSCO Systems, Gate Openers, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Parts # Description for OSCO VS-GSLG Gate Operators 2120-359 Complete Enclosure with Door Assembly 1 2120-144 Enclosure without Door 1 2120-360 Complete Door and Lock Assembly 1 2500-2192 C-Face Brake, 115/230V 1 2500-2193 C-Face Brake, 460V 5 2110-265 Rail Assembly 15 2100-573 Spacer Plate 15 2100-661 Back Brace 12 2100-1738 Drive Shaft, 1” 48 2400-501 Retaining Ring 9 2200-274 Bearing, 1” 43 2100-1737 Pillow Block Retaining Plate 40 2200-042 Sprocket, 48-B-15, 1” bore 40 2200-015 Shaft Collar, 1” 7 2120-388 Torque Limiter Assembly, 5 1/2” 7A 2100-1650 Plate with Solid Pin Groove 7B 2100-1661 Keyed Plate 7C 2300-390 Friction Disc (pair) 7D 2200-817 Belleville Washer 7E 2100-1621 Belleville Washer Retaining Disc 7F 2100-1622 Adjustment Nut 7G 2400-407 Brass Tipped Set Screw 7H 2400-416 Dowel Pin 7I 2100-529 Woodruff Key 8 2200-555 Sprocket, 40-A-48 42 2200-886 Drive Sprocket, 50-B-20, 1” bore 42 2110-363 Gear Reducer/Disconnect Assembly 2 2200-551 Gear Reducer, 10:1 19 2120-132 Shifter Lever Assembly 18 2110-362 Shifter Lever Fulcrum Assembly 37 2100-551 Shifter Lever Rod 38 2400-169 Pal Nut 20 2100-1133 Locking Lever Plate 28 2100-910 Locking Lever 41 2200-291 Shifter and Locking Lever Spring 14 2200-014 Shaft Collar, 1" 11 2110-364 Sprocket, 40-A-24, with Bearing 30 2200-549 Disconnect Collar, 1" (keyed) 31 2110-131 Shifter Block 31 2400-133 Key, 1/4" x 1/4" x 2 1/4" 32 2200-115 Disconnect Spring |
|
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
| 33 2400-308 Fender Washer, 3/8" 34 2400-017 Flat Washer, 3/8" 35 2400-016 Lock Washer, 3/8" 36 2400-207 HHCS, 3/8"-16 x 2 1/2" 16 2110-700 Idler Assembly 16 2300-697 UHMW Idler Wheel 16 2100-1731 Idler Shaft 6 2520-453 Rotary Limit Box Assembly 6 2500-764 Limit Switch 6 2100-057 Standard Limit Shaft 6 2200-030 Limit Nut 6 2100-261 Detent Plate 6 2110-162 Limit Box Enclosure with Cover 6 2100-756 PLT Limit Box Cover only 6 2200-029 Flange Bearing, 1/2" ID 6 2400-029 Push-On Nut 6 2200-042 Limit Drive Sprocket, 48-B-15, 1” bore For drives up to 34 feet wide: 39 2200-008 Limit Box Sprocket, 48-B-10, 1/2” bore 39 2200-922 #48 Chain, 25 Links For drives from 35 to 49 feet wide: 39 2200-041 Limit Box Sprocket, 48-B-15, 1/2” bore 39 2200-200 #48 Chain, 27 Links For drives from 50 to 65 feet wide: 39 2200-276 Limit Box Sprocket, 48-B-20, 1/2” bore 39 2200-654 #48 Chain, per foot, 29 links required For drives over 65 feet wide: 39 2200-432 Limit Box Sprocket, 48-B-30, 1/2” bore 39 2200-654 #48 Chain, per foot, 32 links required 39 2200-010 #48 Master Link 39 2200-605 #40 Chain, 37 Links 39 2200-006 #40 Master Link 17 2100-657 Rain Cover 24 2200-221 #50 Roller Chain, per foot 24 2200-111 #50 Master Link 25 2100-258 Chain Pin 26 2200-306 Tension Spring 22 2100-2007 Gate Bracket 27 2400-090 Hex Nut, 1/2" 23 2400-170 Gate U-Bolt 21 2400-038 Mounting U-Bolt 21 2500-867 Alarm, 24VAC 21 2510-064 3-Button Station with Lead Wires C-Face Motors 4 2500-2313 1/2 HP, 208/230/460V, 3 Phase 4 2500-2315 1 HP, 208/230/460V, 3 Phase 4 2500-372 2 HP, 208/230/460V, 3 Phase |
|
|
|
|
