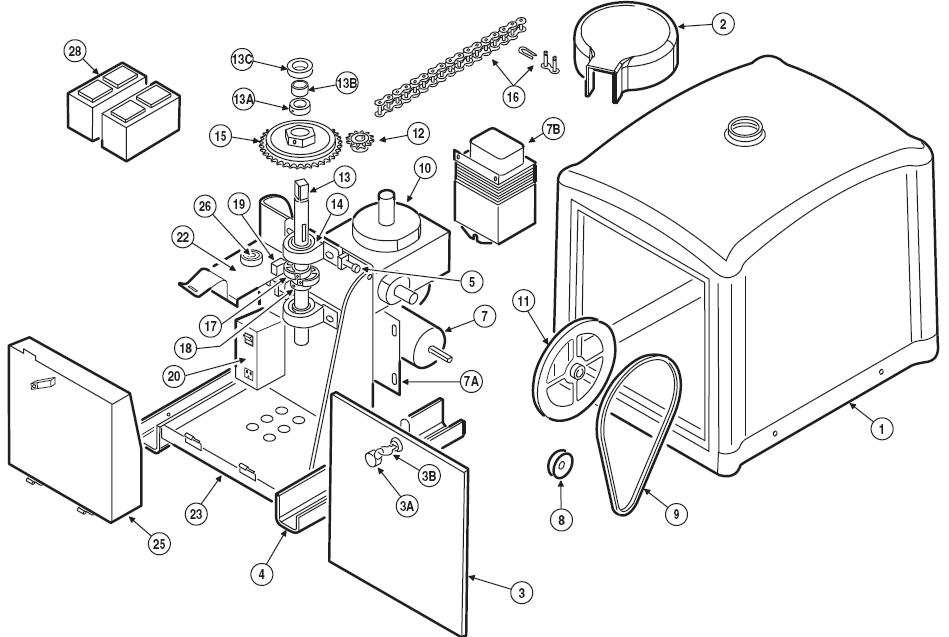

| OSCO Gate Operators SWD - Scroll Down to View Exploded Parts View & Parts List |
| OSCO Replacement Parts for your OSCO Operators - We Offer OSCO Factory Direct repair parts and New Products for OSCO Systems, Gate Operators, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Parts # Description for OSCO SWD Gate Operators 1 2300-925-BEIGE Operator Cover, Tan 2300-925-BLACK Operator Cover, Black 2 2300-926-BEIGE Rain Cap, Tan 2300-926-BLACK Rain Cap, Black 3 2100-2030-BEIGE Access Door, Tan (no lock or reset button) 2100-2030-BT Access Door, Black (no lock or reset button) 3A 2510-354 Plunger Reset Assembly 2500-2240 Plunger Reset Button 2500-2241 Plunger Extension Only 3B 2200-790 Lock for Cover, with Keys 2200-824 Extra Keys 4 2110-785 Frame Assembly 5 2400-509 Socket Head Cap Screw, 3/8-16 x 1-1/2” 7 2500-1902 Motor, 24 VDC 7A 2100-2037 Motor Mounting Plate 7B 2510-223 Transformer Assembly 2500-1776 Transformer only, 115 VAC - 24 VAC, 250VA 8 2200-411 Pulley, 1-1/2”, 1/2” bore 9 2200-975 V-belt, 4L, 29” 10 2200-081 Gear Reducer, 60:1 11 2200-079 Pulley, 7”, 3/4” bore 12 2200-084 Sprocket, 40-B-13, 1” bore 13 2100-2020-PLT Drive Shaft 13A 2200-015 Shaft Collar, 1” diameter, 9/16 LTB 13B 2100-519-PLT Sleeve Spacer 13C 2200-016 Moisture Seal 14 2200-274 Pillow Block Bearing, 1” diameter 15 2220-048 5” Torque Limiter with Bushing and 40-A-36 Sprocket 2300-381 Friction Disc Pair for 5” Torque Limiter 2200-782 Bushing for 5” Torque Limiter 2200-583 Sprocket, 40-A-36, 1” Bore 16 2200-673 #40 Chain, 21 Links 2200-006 #40 Master Link 17 2100-1748 Limit Cam |
|
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
| 18 2200-015 Shaft Collar, 1” diameter, 9/16 LTB 19 2500-2347 Limit Switch 20 2510-432 Power Box Assembly 2500-2411 Power Switch 2500-2413 Power Outlet 2100-2113 Back Plate 2100-2112 Cover Plate 2500-1819 Fuse Holder 2500-1742 Fuse, 6 Amp, Slow-Blow 2500-2473 Relay, 24 VDC 2500-1768 Bridge Rectifi er 21 2100-2111 Controller Latch 22 2100-2108 Limit Switch Mounting Bracket 23 2100-2024 Accessory Mounting Shelf 2200-874-PLT Hinge, Male for Control Box 25 2510-439 APeX Module and DC Motor Board Assembly 2500-2393 APeX Module 2500-2399 APeX DC Motor Module 2100-2104 APeX Mounting Plate 2300-1025 Plastic Cover Only 2510-423 Knob Kit 2510-420 Stop/Reset Switch and Bracket Assembly 26 2500-2435 Alarm 28 2510-182 Battery Assembly 2500-1118 Battery, 12V (2 required) 2300-450 Velcro Tape, per foot 29 2510-433 Wiring Harness Assembly (Not Shown) OPTIONAL PARTS 2120-483 Post Mounting Kit 2100-2041 Operator Base Plate |
|
|
| Optional Parts |
|
|
