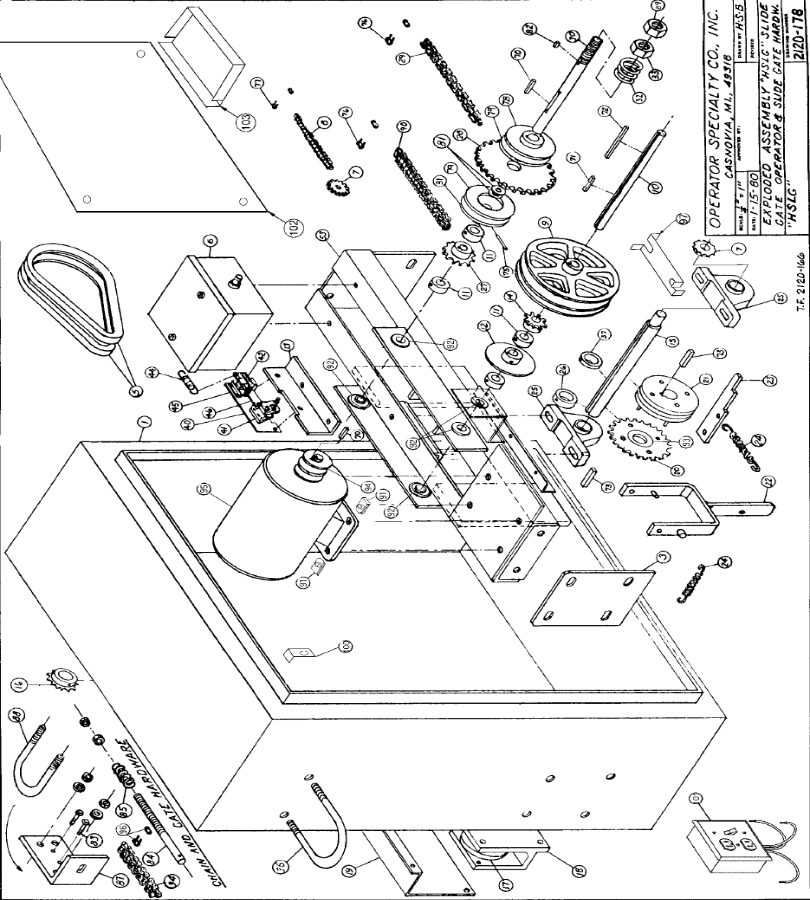

| OSCO Gate Operators HSLG - Scroll Down to View Exploded Parts & Parts list for hslg osco gate operator |
| OSCO Replacement Parts for your OSCO Operators - We Offer OSCO Factory Direct replacement parts and New Products for OSCO Systems, Gate Operators, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Parts # Description for OSCO HSLG Gate Operators 2110-240 Intermediate Shaft Assembly 10 2100-765 Pulley Shaft 14 2200-213 Sprocket, 41 B 9, 5/8" Bore 9 2200-309 Double Pulley, 7" 11 2200-233 Set Collar Set, 5/8" 92 2200-215 Precision Bearing, 5/8" 72 2200-333 Key, 3/16" x 1 1/2" 71 2100-1750 Key, 3/16” x 1 1/4” 12 2100-547 Brake Disc 2110-274 Clutch Shaft Assembly 30 2100-1008 Clutch Shaft 28 2200-294 Sprocket, 41 A 36, 1" Bore 31 2100-669 Clutch Hub (Pinned) 78 2100-1007 Clutch Hub (Keyed) 79 2100-564 Clutch Facing 32 2200-306 Clutch Spring 33 2400-061 Hex Nut, 5/8"-18 89 2400-062 Jam Nut, 5/8"-18 81 2400-187 Thrust Washer, 1" x 1/8" 2400-088 Roll Pin, 3/16" x 1 3/8" 27 2200-292 Sprocket, 41 B12, 5/8" Bore 2200-215 Precision Bearing, 5/8" 11 2200-233 Set Collar, 5/8" 70 2400-238 Key, 3/16" x 1 1/4" 82 2400-273 Key, 3/16” x 1/4” 2110-236 Output Shaft Assembly 15 2100-917 Output Shaft, 1" 20 2220-022 Sprocket, 41 A 24 with Bearing 93 2200-119 Bearing only for 41 A 24 Sprocket 21 2110-131 Shifter Block with Pins 25 2200-274 Pillow Block Bearing, 1" 97 2100-1737 Pillow Block Retaining Plate 37 2200-014 Set Collar, 1" x 3/8" LTB 26 2200-091 Set Collar, 1" x 5/8" LTB 73 2400-201 Key, 1/4” x 1 1/2” 16 2200-267 Sprocket, 40 B 18, 1" Bore 2400-026 Spring Pin, 3/16" x 1" (Predrilled for Pillow Block) 18 2110-700 Idler Assembly 6 2520-173R Rotary Limit Box Assembly 2500-764 Limit Switch 2100-057 Standard Limit Shaft 2200-030 Limit Nut 2100-261 Detent Plate 2110-162 Limit Box Enclosure with Cover 2100-756 Limit Box Cover only 2200-029 Flange Bearing, 1/2" ID 2200-193 E-Ring, 1/2” 2400-203 Spring Washer, 1/2” 7 2200-008 Limit Drive Sprocket, 48-B-10, 1/2” Bore For Drives up to 30 feet wide: 2200-008 Limit Box Sprocket, 48-B-10, 1/2” Bore 2200-654 #48 Chain, per foot, 27 Links required For Drives from 31 to 45 feet wide: 2200-041 Limit Box Sprocket, 48-B-15, 1/2” Bore 2200-654 #48 Chain, per foot, 29 Links required For Drives over 45 feet wide: 2200-276 Limit Box Sprocket, 48-B-20, 1/2” Bore 2200-654 #48 Chain, per foot, 30 Links required 34 2200-202 #40 Chain, per foot 36 2400-038 U-Bolt, 4 5/8" 2510-064 Three-Button Station with Lead Wires 102 2100-1756 Control Box Mounting Plate 103 2100-1781 Accessory Shelf for Single Phase 95 2500-2307 1/2 HP, 115V, 1 Phase 2500-2308 1/2 HP, 208/230V, 1 Phase 2500-2309 3/4 HP, 115V, 1 Phase 2500-2310 3/4 HP, 208/230V, 1 Phase 2500-2311 1 HP, 115V, 1 Phase 2500-2312 1 HP, 208/230V, 1 Phase 2500-2313 1/2 HP, 208/230/460V, 3 Phase 2500-2314 3/4 HP, 208/230/460V, 3 Phase 2500-2315 1 HP, 208/230/460V, 3 Phase |
|
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
| Capacitors 2500-2336 Capacitor for 2500-2307 Motor 2500-2337 Capacitor for 2500-2308 Motor 2500-1926 Capacitor #1 for 2500-2309 Motor 2500-1930 Capacitor #2 for 2500-2309 Motor 2500-1931 Capacitor for 2500-2310 Motor 2500-2338 Capacitor for 2500-2311 Motor 2500-1932 Capacitor for 2500-2312 Motor 40 2510-398 115V 2510-399 230V 2510-400 460V 41 2220-983 Brake and Puck Assembly 42 2500-177 Brake Solenoid, 230 VAC 2500-178 Brake Solenoid, 115 VAC 2500-1351 Brake Solenoid, 460 VAC 44 2200-243 Brake Spring (short) 46 2100-548 Brake Rod 45 2100-541 Brake Plate 13 2100-2091 Bracket for Brake 1 2120-359-BT Enclosure Assembly Complete with Door 2120-360-BT Door Assembly only 2300-716 Stop/Reset Button Cover 2110-643 Lock Assembly with Keys 2200-540 Replacement Key 53 2110-234 Rail Assembly 3 2100-573 Spacer Plate 94 2200-207 Double Pulley, 2" 29 2400-149 #41 Chain, 30 Links 22 2120-132 Shifter Lever 23 2100-910 Locking Disconnect Lever 24 2200-291 Disconnect Spring 19 2100-657-BT Rain Cover 75 2400-088 Roll Pin 87 2100-2007 Gate Bracket 88 2400-170 U-Bolt, 3" 84 2100-258 Chain Tension Bolt, 1/2" 85 2200-306 Clutch/Chain Tension Spring 86 2400-090 Hex Nut, 1/2"-13 (4) 2400-045 Flat Washer, 1/2" 2500-867 Alarm, 24VAC 5 2200-234 V-Belt, 28" 2100-553 Bearing Spacer 90 2200-150 #41 Chain, per foot (20 links required) 76 2200-027 #41 Master Link 2100-656-BT Side Plate, 1/2" 2100-059-BT Side Plate, 3/16” 96 2200-006 #40 Master Link 8 2200-654 #48 Chain, per foot (27 links required) 77 2200-010 #48 Master Link 91 2400-422 5/16-18 U-Nut (4) 100 2510-248 Stop/Reset Button and Bracket Assembly 2100-1760 Stop/Reset Button Mounting Bracket 2500-1495 Stop/Reset Button 101 2510-251-D Power On/Off Disconnect Assembly with Receptacles (115V Models only) 2500-1956 115VAC Duplex Receptacles only 2500-1957 115VAC Switch only 2510-252-D Power On/Off Disconnect Assembly for 230VAC Models 2500-034 Power Switch only 2500-2205 230VAC Switch only 101 2510-294 Power On/Off Disconnect Assembly for 3 Phase Operators 2500-2308 1/2 HP, 208/230V, 1 Phase 2500-2309 3/4 HP, 115V, 1 Phase 2500-2310 3/4 HP, 208/230V, 1 Phase 2500-2311 1 HP, 115V, 1 Phase 2500-2312 1 HP, 208/230V, 1 Phase 2500-2313 1/2 HP, 208/230/460V, 3 Phase |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Magnetic Brakes (includes 41, 42, 44, 45 and 46) |
|
|
| Motors |
|
|
| Capacitors |
|
|
