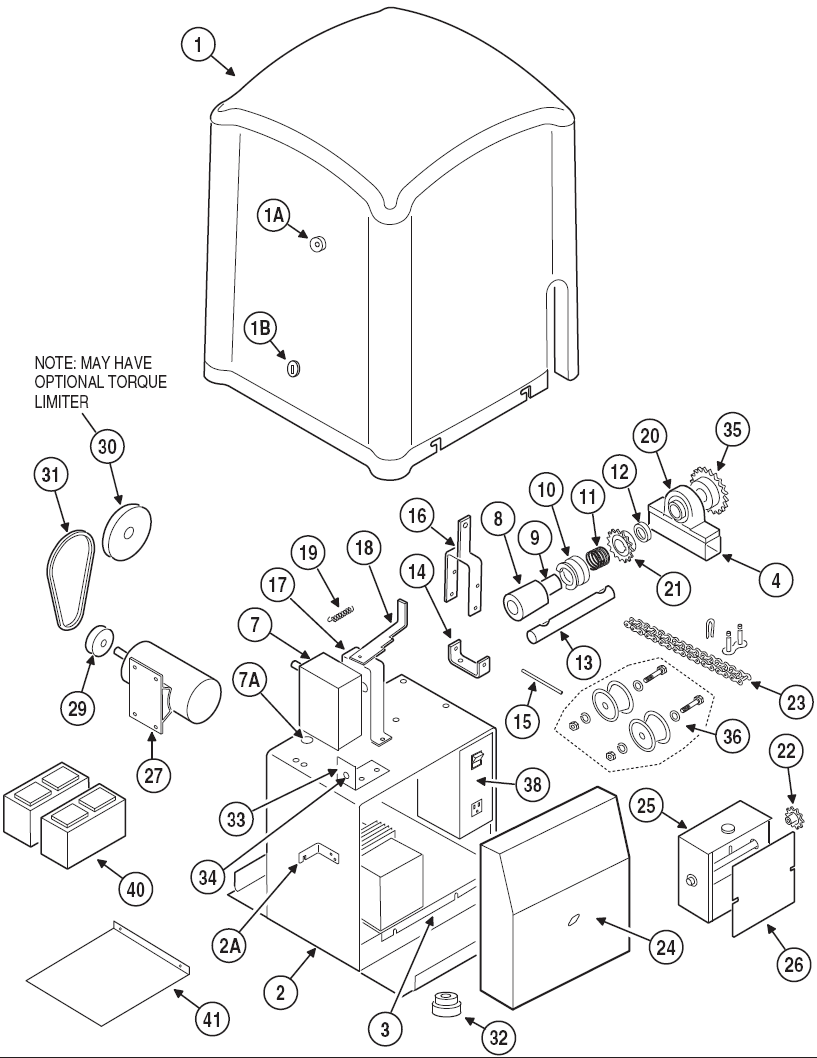

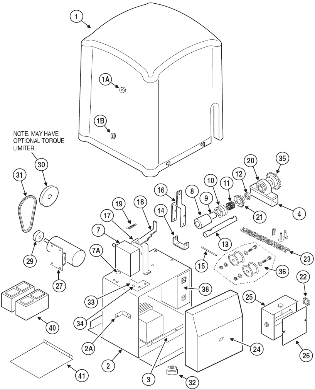

| OSCO Gate Operators SLD - Scroll Down to View Exploded Parts View & Parts list for SLD opener |
| OSCO Replacement Parts for your OSCO Operators - We Offer OSCO Factory Direct replacement parts and New Products for OSCO Systems, Gate Operators, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Parts # Description for OSCO SLD Gate Operators 1 2300-907 Operator Cover 1A 2510-354 Plunger Reset Assembly 2500-2240 Plunger Reset Button 2500-2241 Plunger Extension Only 1B 2200-790 Lock for Cover, with Keys 2200-824 Extra Keys 2 2110-796 Main Frame Assembly 2A 2100-2006 Lock Tab Bracket 3 2100-2055 Bottom Shelf 4 2100-1985 Pillow Block Tube Spacer 7 2200-954 Gear Reducer, 20:1 7A 2100-1980 Tube Spacers 8 2110-783 Reducer Coupler, with Oilite Bushing 10 2100-2026 Disconnect Collar 11 2200-115 Disconnect Collar Spring 12 2200-014 Shaft Collar, 1” diameter, 3/8” LTB 13 2100-1983 Drive Shaft, 1” diameter 13A 2100-529 1” Woodruff Key 14 2100-1986 Disconnect Handle Fulcrum Bracket 15 2100-549 Pin for Disconnect Handle 2400-169 Push-on Nut, 1/4” (not shown) 16 2120-477 Disconnect Handle 17 2100-2060 Disconnect Fulcrum Bracket 18 2100-2059 Disconnect Lever 19 2200-939 Locking Handle Spring 20 2200-274 Pillow Block Bearing, 1” diameter 21 2200-042 Sprocket, 48-B-15, 1” bore 22 2200-041 Sprocket, 48-B-15, 1/2” bore 23 2200-966 #48 Roller Chain, 15 Links 2200-010 #48 Master Link 24 2510-439 APeX Module & DC Motor Board Assembly 2500-2393 APeX Module 2500-2399 APeX DC Motor Board 2100-2104 APeX Mounting Plate 2300-1025 Plastic Cover 2510-423 Knob Kit 25 2520-396-SLC Limit Box Assembly with Cover 2100-057 Limit Shaft 2200-029 Oilite Bushing 2200-030 Limit Nut 2200-193 1/2” E-ring 2300-946 Heyco Bushing with Wire Guards 2500-440 Limit Switch 2100-261 Detent Plate 2200-028 Detent Spring 26 2300-945 Limit Box Cover 27 2500-1902 Motor, 24 VDC 2510-243 Brush Replacement Kit 29 2200-132 Motor Pulley, 2” 30 2200-993 3” Pulley, 5/8” bore 31 2200-938 V-belt, 4L 28” 32 2500-2435 Alarm 33 2100-2114 Stop/Reset Button Bracket 34 2500-1495 Stop/Reset Button 35 2200-269 Sprocket, 41-B-20, 1” bore 36 2110-823 Idler Assembly 2300-697 Idler Wheel, UHMW 2400-527 1/2” Shoulder Bolt 2400-528 1/2” Lock Washer 2400-529 1/2” Nut 37 2100-2109 APeX Controller Mounting Bracket (not shown) 38 2510-431 Power Box Assembly 2500-2411 Power Switch 2500-2413 Power Outlet 2500-2473 Relay 2500-1768 Bridge Rectifi er 2500-1819 Fuse Holder 2500-1748 Fuse, 10 Amp, Slow-blow 39 2510-419 Transformer Assembly 40 2510-182 Battery Assembly 2500-1118 Battery, 12 Volt (Two required) 2300-450 Velcro Tape, per Foot 41 2100-2115 Accessory Shelf 42 2510-425 Wiring Harness Assembly (not shown) |
|
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
PARTS FROM ACCESSORY BOX (Not shown in exploded view) 2100-2007 Gate Attachment Bracket 2400-170 U-bolt, 3” 2100-054 #41 Chain Tension Bolt 2200-367 Chain Spring 2200-027 #41 Master Link 2200-150 #41 Chain, per Foot 2400-152 Square Head Bolt, 3/8” OPTIONAL PARTS 2100-2010 Base Plate for Operator 2100-2008 Critter Plate 2650-107 Remote Disconnect Kit 2120-483 Post Mounting Kit 2220-045 2” Torque Limiter Assembly Complete 2300-693 Friction Disc (Pair) 2200-676 4” Pulley for Torque Limiter 2200-877 Bushing for Pulley |
|
|
|
|
|
| Parts from Accessory Box (not shown in exploded view) |
| Optional Parts |
|
