| OSCO Replacement Parts for your OSCO Openers - We Offer OSCO Factory Direct replacement parts and New Products for OSCO Systems, Gate Operators, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Item Parts # Description for OSCO SWR Gate Operators 1 2300-925-BEIGE Operator Cover, Tan 2300-925-BLACK Operator Cover, Black 2 2300-926-BEIGE Rain Cap, Tan 2300-926-BLACK Rain Cap, Black 3 2100-2030-BEIGE Access Door, Tan (no lock or reset button) 2100-2030-BT Access Door, Black (no lock or reset button) 3A 2510-354 Plunger Reset Assembly 2500-2240 Plunger Reset Button 2500-2241 Plunger Extension Only 3B 2200-790 Lock for Cover, with Keys 2200-824 Extra Keys 4 2110-785 Frame Assembly 5 2400-509 Socket Head Cap Screw, 3/8-16 x 1-1/2” 7 2510-274 Motor Assembly, 1/2 HP, 115 VAC, with Harness 2510-275 Motor Assembly, 1/2 HP, 230 VAC, with Harness 7A 2500-261 Capacitor for 115 VAC 2500-552 Capacitor for 230 VAC 7B 2200-872 Capacitor Clamp 8 2200-132 Pulley, 2”, 5/8” bore 9 2200-208 V-belt, 4L, 26” 10 2200-926 Gear Reducer, 60:1 11 2100-388 Pulley, 5”, 5/8” bore 12 2200-190 Sprocket, 40-B-12, 3/4” bore 13 2100-2020-PLT Drive Shaft 13A 2200-015 Shaft Collar, 1” diameter, 9/16 LTB 13B 2100-519-PLT Sleeve Spacer 13C 2200-016 Moisture Seal 14 2200-274 Pillow Block Bearing, 1” diameter 15 2200-376 Sprocket, 40-B-36, 1” bore 16 2200-673 #40 Chain, 21 Links 2200-006 #40 Master Link 17 2100-1748 Limit Cam 18 2200-015 Shaft Collar, 1” diameter, 9/16 LTB 19 2500-2347 Limit Switch 20 2510-422 115 VAC Power Box Assembly 2510-430 230 VAC Power Box Assembly 2500-2411 Power Switch Only, 115 VAC and 230 VAC 2500-2413 Power Outlet (only available on 115 VAC Models) 2500-212 115 VAC - 24 VAC Power Transformer 2500-791 230 VAC - 24 VAC Power Transformer 2100-2113 Back Plate 2100-2112 Cover Plate 21 2100-2111 Controller Latch 22 2100-2108 Limit Switch Mounting Bracket 23 2100-2024 Accessory Mounting Shelf 2200-874-PLT Hinge, Male for Control Box 25 2500-2393 APeX Module 2500-2399 APeX DC Motor Module 2100-2104 APeX Mounting Plate 2300-1025 Plastic Cover Only 2510-423 Knob Kit 2510-420 Stop/Reset Switch and Bracket Assembly 26 2500-2435 Alarm 27 2510-427 115 VAC Wiring Harness Assembly (not shown) 2510-429 230 VAC Wiring Harness Assembly (not shown) OPTIONAL PARTS 2120-483 Post Mounting Kit 2220-047 3” Torque Limiter with Bushing and 40-A-36 Sprocket 2200-591 Friction Disc pair for 3” Torque Limiter 2200-593 Bushing for 3” Torque Limiter 2200-281 Sprocket, 40-A-36, 1” Bore 2100-2041 Operator Base Plate |
|
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |

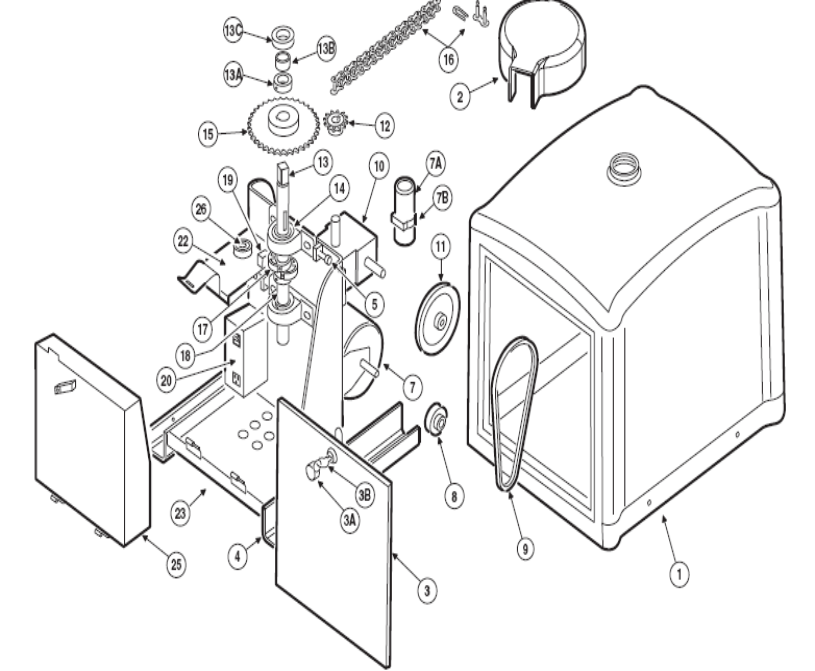

| OSCO Gate Operators SWR - Scroll Down to View Exploded Parts View & Parts List |
|
|
| Optional Parts |
|
|
