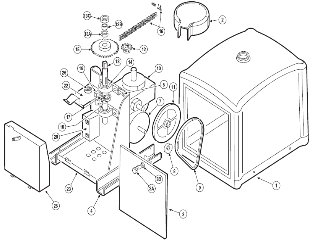

| OSCO Gate Openers SWC - Scroll Down to View Exploded Parts View & Parts List of SWC |
| OSCO Replacement Parts for your OSCO Openers - We Offer OSCO Factory Direct replacement parts and New Products for OSCO Systems, Gate Openers, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
|
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
|
|
|
| Item Parts # Description 1 2300-925-BEIGE Operator Cover, Tan 2300-925-BLACK Operator Cover, Black 2 2300-926-BEIGE Rain Cap, Tan 2300-926-BLACK Rain Cap, Black 3 2100-2030-BEIGE Access Door, Tan (no lock or reset button) 2100-2030-BT Access Door, Black (no lock or reset button) 3A 2510-354 Plunger Reset Assembly 2500-2240 Plunger Reset Button 2500-2241 Plunger Extension Only 3B 2200-790 Lock for Cover, with Keys 2200-824 Extra Keys 4 2110-785 Frame Assembly 5 2400-509 Socket Head Cap Screw, 3/8-16 x 1-1/2” 7 2500-2307 1/2 HP, 115 VAC, 1 Phase 2500-2308 1/2 HP, 208/230 VAC,1 Phase 2500-2309 3/4 HP, 115 VAC, 1 Phase 2500-2310 3/4 HP, 208/230 VAC,1 Phase 2500-2311 1 HP, 115 VAC, 1 Phase 2500-2312 1 HP, 208/230 VAC, 1 Phase 2500-2336 Cap for 2500-2307 motor 2500-2337 Cap for 2500-2308 motor 2500-1926 Cap #1 for 2500-2309 motor 2500-1930 Cap #2 for 2500-2309 motor 2500-1931 Cap for 2500-2310 motor 2500-2338 Cap for 2500-2311 motor 2500-1932 Cap for 2500-2312 motor 8 2200-012 Pulley, 2”, 5/8” bore (for 1/2 and 3/4 HP) 2200-960 Pulley, 1-5/8”, 5/8” bore (for 1 HP only) 9 2200-013 V-belt, 31” (for 1/2 and 3/4 HP) 2200-931 V-belt, 30” (for 1 HP only) 10 2200-081 Gear Reducer, 60:1 2200-957 Gear Reducer, 60:1 (for 1 HP) 11 2200-885 Pulley, 8”, 3/4” bore (for 1/2 and 3/4 HP) 2200-969 Pulley, 8”, 7/8” bore (for 1 HP only) 12 2200-084 Sprocket, 40-B-13, 1” bore 2200-958 Sprocket, 40-B-14, 1-1/8” bore (for 1 HP) |
| 13 2100-2020-PLT Drive Shaft 13A 2200-015 Shaft Collar, 1” diameter, 9/16 LTB 13B 2100-519-PLT Sleeve Spacer 13C 2200-016 Moisture Seal 14 2200-274 Pillow Block Bearing, 1” diameter 15 2200-376 Sprocket, 40-B-36, 1” bore (for 1/2 and 3/4 HP) 2200-959 Sprocket, 40-B-40, 1” bore (for 1 HP) 16 2200-972 #40 Chain, 24 Links (for 1/2 and 3/4 HP) 2200-973 #40 Chain, 26 Links (for 1 HP) 2200-006 #40 Master Link 2400-145 #40 Half Link 17 2100-1748 Limit Cam 18 2200-015 Shaft Collar, 1” diameter, 9/16 LTB 19 2500-2347 Limit Switch 20 2510-350-A Power On/Off Switch Assembly, 115V 2500-1957 Switch only 2510-252-H Power On/Off Switch Assembly, 230V 2500-2205 Power Switch 21 2510-353-A 115VAC Outlet Assembly (for 115VAC units only) 2500-1956 Outlets only 22 2100-2019 Power Switch Mounting Bracket 23 2100-2024 Accessory Mounting Shelf 2200-874-PLT Hinge, Male for Control Box 25 Controller 26 2500-2435 Alarm 27 2510-064 Three-Button Station Assembly OPTIONAL PARTS 2120-483 Post Mounting Kit 2220-048 5” Torque Limiter with Bushing and 40-A-36 Sprocket (for 1/2 and 3/4 HP) 2220-049 5” Torque Limiter with Bushing and 40-A-40 Sprocket (for 1 HP) 2300-381 Friction Disc pair for 5” Torque Limiter 2200-782 Bushing for 5” Torque Limiter |
