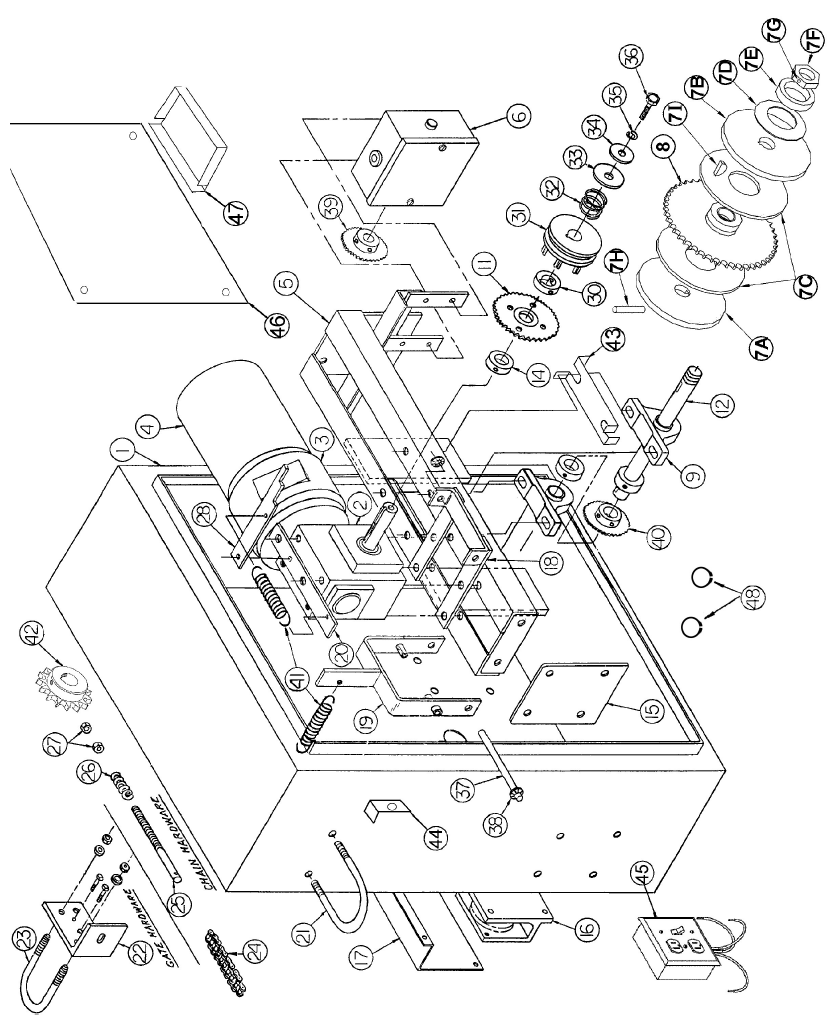

| OSCO Gate Openers GSLG-A - Scroll Down to View Exploded Parts View & Parts List of GSLG-A Sliding Gate Opener |
| OSCO Replacement Parts for your OSCO Openers - We Offer OSCO Factory Direct repair parts and New Products for OSCO Systems, Gate Openers, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
|
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
| Capacitors |
| Item Parts # Description for OSCO GSLG-A Gate Operators 2120-359-BT Complete Enclosure with Door Assembly 1 2120-144-BT Enclosure without Door 2120-360-BT Complete Door and Lock Assembly 2300-716 Stop/Reset Button Cover 2500-2192 C-Face Brake, 115/230V 2500-2193 C-Face Brake, 460V 5 2110-265 Rail Assembly 15 2100-573 Spacer Plate 2100-661 Back Brace 12 2100-1738 Drive Shaft, 1" 48 2400-501 Retaining Ring 9 2200-274 Bearing, 1" 43 2100-1737 Pillow Block Retaining Plate 40 2200-042 Sprocket, 48 B 15, 1" bore 2200-015 Shaft Collar, 1" 7 2120-388 Torque Limiter Assembly, 5 1/2” 7A 2100-1650 Plate with Solid Pin Groove 7B 2100-1661 Keyed Plate 7C 2300-390 Friction Disc (pair) 7D 2200-817 Belleville Washer 7E 2100-1621 Belleville Washer Retaining Disc 7F 2100-1622 Adjustment Nut 7G 2400-407 Brass Tipped Set Screw 7H 2400-416 Dowel Pin 7I 2100-529 Woodruff Key 8 2210-004 Sprocket, 40-A-48, with Bearing 42 2200-886 Drive Sprocket, 50-B-20, 1” Bore 2110-788 Gear Reducer/Disconnect Assembly 2 2200-920 Gear Reducer, 15:1 19 2120-132 Shifter Lever Assembly 18 2110-362 Shifter Lever Fulcrum Assembly 37 2100-551 Shifter Lever Rod 38 2400-169 Pal Nut 20 2100-1133 Locking Lever Plate 28 2100-910 Locking Lever 41 2200-291 Shifter and Locking Lever Spring 14 2200-014 Shaft Collar, 1" 11 2110-364 Sprocket, 40 A 24, with Bearing 30 2200-549 Disconnect Collar, 1" (keyed) 31 2110-131 Shifter Block 2400-133 Key, 1/4" x 1/4" x 2 1/4" 32 2200-115 Disconnect Spring 44 2510-248 Stop/Reset Button & Bracket Assembly 2100-1760 Stop/Reset Button Mounting Bracket 2500-1495 Stop/Reset Button 45 2510-251-D Power On/Off Disconnect Assembly with Receptacles (115V Models only) 2500-1956 115VAC Duplex Receptacles only 2500-1957 115VAC Switch only 2510-252-D Power On/Off Disconnect Assembly for 230V Models 2500-2205 230VAC Switch only 2510-294 Power On/Off Disconnect Assembly for 3-Phase Operators 2500-034 Power Switch only 46 2100-1756 Mounting Plate 47 2100-1781 Accessory Shelf for single phase models only 33 2400-308 Fender Washer, 3/8" 34 2400-017 Flat Washer, 3/8" 35 2400-016 Lock Washer, 3/8" 36 2400-014 HHCS, 3/8"-16 x 1" 16 2110-700 Idler Assembly 2300-697 UHMW Idler Wheel 2100-1731 Idler Shaft 6 2520-173L Rotary Limit Box Assembly 2500-764 Limit Switch 2100-057 Standard Limit Shaft 2200-030 Limit Nut 2100-261 Detent Plate 2110-162 Limit Box Enclosure with Cover 2100-756 Limit Box Cover only 2200-029 Flange Bearing, 1/2" ID 2200-193 E-Ring, 1/2” 2400-203 Spring Washer, 1/2” 2200-042 Limit Drive Sprocket, 48-B-15, 1” bore For drives up to 34 feet wide: 39 2200-008 Limit Box Sprocket, 48-B-10, 1/2” bore 2200-922 #48 Chain, 25 Links For drives from 35 to 49 feet wide: 2200-041 Limit Box Sprocket, 48-B-15, 1/2” bore 2200-200 #48 Chain, per foot, 27 Links For drives 50 to 65 feet wide: 2200-276 Limit Box Sprocket, 48-B-20, 1/2” bore 2200-654 #48 Chain, per foot, 29 Links required For drives over 65 feet wide: 2200-432 Limit Box Sprocket, 48-B-30, 1/2” bore 2200-654 #48 Chain, per foot, 32 links required 2200-010 #48 Master Link 2200-605 #40 Chain, 37 Links 2200-006 #40 Master Link |
| C Face Motors |
| Item Parts # Description for OSCO GSLG-A Gate Operators 17 2100-657-BT Rain Cover 24 2200-221 #50 Roller Chain, per foot 2200-111 #50 Master Link 25 2100-258 Chain Pin 26 2200-306 Tension Spring 22 2100-2007 Gate Bracket 27 2400-090 Hex Nut, 1/2" 23 2400-170 Gate U-Bolt 21 2400-038 Mounting U-Bolt 2500-867 Alarm, 24VAC 2510-064 3-Button Station with Lead Wires C-Face Motors 4 2500-2307 1/2 HP, 115V, 1 Phase 2500-2308 1/2 HP, 208/230V, 1 Phase 2500-2309 3/4 HP, 115V, 1 Phase 2500-2310 3/4 HP, 208/230V, 1 Phase 2500-2311 1 HP, 115V, 1 Phase 2500-2312 1 HP, 208/230V, 1 Phase 2500-2313 1/2 HP, 208/230/460V, 3 Phase 2500-2314 3/4 HP, 208/230/460V, 3 Phase 2500-2315 1 HP, 208/230/460V, 3 Phase Capacitors 2500-2336 Capacitor for 2500-2307 Motor 2500-2337 Capacitor for 2500-2308 Motor 2500-1926 Capacitor #1 for 2500-2309 Motor 2500-1930 Capacitor #2 for 2500-2309 Motor 2500-1931 Capacitor for 2500-2310 Motor 2500-2338 Capacitor for 2500-2311 Motor 2500-1932 Capacitor for 2500-2312 Motor Single Phase Control Box 1 2100-1778 Control Box Wrapper 2 2100-1757 Control Box Mounting Plate 3 2100-1762 Terminal Strip Bracket, input side 4 2100-1761 Terminal Strip Bracket, output side 5 2200-122 Heyco Bushing, .87 diameter 6 2500-1948 Control Board Standoff 7 2510-268 Control Board 8 2500-1946 AC Motor Drive Board 2510-244 Control Board with AC Motor Board 9 2510-253 Limit Switch Harness Assembly 10 2510-249 Input Wire Harness Assembly 11 2510-250 Output Wire Harness Assembly 12 2510-261 Control Box Motor Harness Assembly 13 2500-071 Terminal Strip, 16-141 14 2500-212 Transformer, 115/24VAC, 40VA 2500-791 Transformer, 230/24VAC, 40VA 15 2300-696 Clear Control Box Cover 16 2300-735 Heyco Bushing, 1.09 diameter 17 2200-876 Plunger, spring loaded 2500-867 Alarm, 24VAC (not shown) 18 2500-1966 2 Amp Fuse for Control Board 19 2500-1975 3 Amp Fuse for Control Board 2520-391-D Complete Controller Assembly 115VAC (order limit harness and mounting brackets separately) 2520-392-D Complete Controller Assembly 230VAC (order limit harness and mounting brackets separately) 3 Phase Control Box 1 2100-1865 Control Box Wrapper 2 2100-1866 Control Box Cover 3 2100-1864 Terminal Strip Bracket 4 2100-1762 Terminal Strip Bracket 5 2510-293 Control Box Motor Harness Assembly (Leeson motors) 2510-355 Control Box Motor Harness Assembly (AO Smith motors) 7 2300-735 Heyco Bushing, 1.09 diameter 8 2500-1948 Control Board Standoff 9 2510-295 Control Board with 3-Phase Motor Board 2510-268 Control Board only 10 2500-1980 3-Phase Motor Board 11 2500-1966 2-Amp Fuse for Control Board 12 2500-1975 3-Amp Fuse for Control Board 13 2510-253 Limit Switch Harness 14 2500-071 Terminal Strip, 16-141 15 2500-270 Terminal Strip, 9-142 OR 2500-185 Terminal Strip, 13-142 16 2300-488 Terminal Strip Barrier, 9-142 OR 2300-885 Terminal Strip Barrier, 13-142 17 2510-250 Output Wire Harness Assembly 18 2510-249 Input Wire Harness Assembly 19 2500-767 230/24VAC, 75VA, Transformer 2500-768 460/24VAC, 75VA, Transformer 20 2500-2084 Contactor, 24VAC 2520-400 Controller, 208/230, 3-Phase 2520-401 Controller, 460, 3-Phase (order limit harness and mounting hardware separately) |
